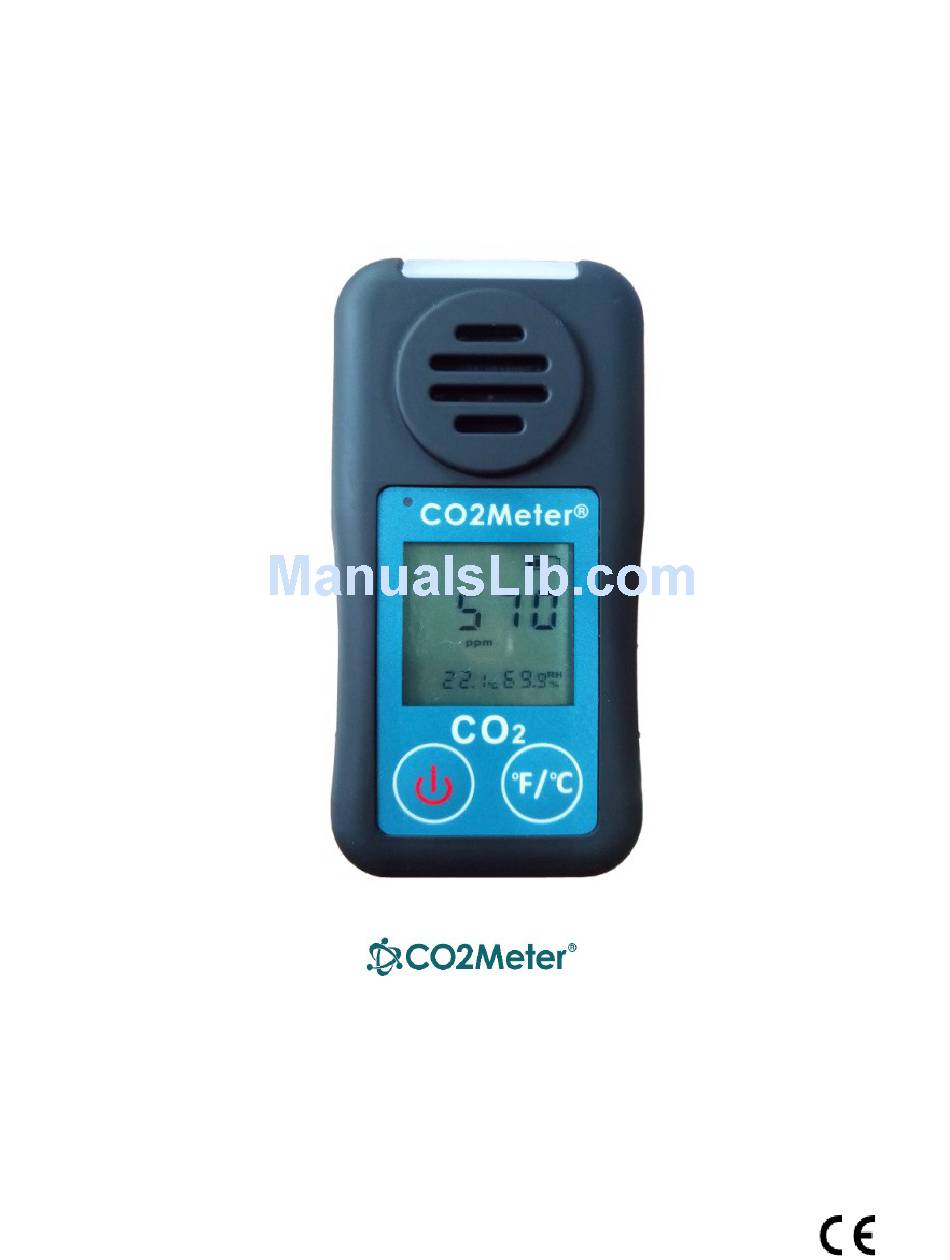

- Page 1 User Manual R1.0 CO2Meter, Inc. Personal CO2 Monitor SAN-10 Last Revised July 11, 2018 Copyright © 2018 CO2Meter Inc., all rights reserved.
-
Page 2: Table Of Contents
Contents INTRODUCTION ..........................3 FEATURES ..............................3 MONITOR ............................3 LCD DISPLAY ............................4 OPERATION ............................4 MENU STATUS..........................5 MAINTENANCE ..........................6 Calibration ..........................6 Cleaning and Storage ........................7 RECOMMENDED CO2 LEVELS AND GUIDELINES ................8 ASHRAE Standard 62-1989: 1000ppm ..................8 Building bulletin 101 (BB101): 1500ppm ..................8 OSHA:5000ppm .........................8 SPECIFICATIONS ..........................9 TROUBLESHOOTING ........................10 WARRANTY ..........................10... -
Page 3: Introduction
It is designed to alert people in the area with excessive carbon dioxide gas. SAN-10 is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. -
Page 4: Lcd Display
LCD DISPLAY 1. Low alarm indicator 2. High alarm indicator 3. Battery indicator 4. CO2 concentration 5. CO2 concentration units (ppm or % when >9,999 ppm) 6. Calibration icon 7. Man down alarm 8. Air Temperature 9. Temperature unit (Fahrenheit or centigrade degrees) 10. -
Page 5: Menu Status
2.2 Menu Status By pressing the temperature unit switching button for 5 seconds, the unit enters into Menu status. There are six menu items by pressing the temperature unit switching button shortly to loop switching between AIR, N2, HX.X, LX.X, A ON/AOFF and E (exit). The menu items are described in the following table. -
Page 6: Calibration
Falling by breathing dangerous gases can cause serious injury and even fatality to workers. If the Man down alarm function in SAN-10 is set on, SAN-10 can detect falls and send a man down alert which will activate the audible and visual alarms and alert other people in the area. -
Page 7: Maintenance
You can perform the calibration yourself, or you can return it to CO2Meter for factory calibration at a nominal fee. CO2 can be zero and/or atmospherically calibrated. Zero calibration requires 100% nitrogen (0% CO2) calibration gas, a flow regulator and flexible tubing. -
Page 8: Recommended Co2 Levels And Guidelines
RECOMMENDED CO2 LEVELS AND GUIDELINES • 250-350 ppm: normal outdoor ambient concentrations • 600 ppm: minimal air quality complaints • 600-1000 ppm: less clearly interpreted • 1000 ppm: indicates inadequate ventilation; complaints such as headaches, fatigue, and eye/throat irritation will be more widespread. 1000 ppm should be used as an upper limit for indoor levels. -
Page 9: Specifications
SPECIFICATIONS Device Specifications Operating Environment 32~122°F (0~50°C), <95% RH non-condensing Storage 14~140°F (-10~60°C), <99% RH non-condensing Power Supply Li-ion battery (4.2V, 1500mAh), Micro USB cable w. Wall USB charger Dimensions 3.9 x 2.0 x 1.7 in. (98x50x42mm) Weight 4.76 oz. (135 grams) CO2 Sensor Specifications CO2 Sensor Single-beam NDIR diffusion sampling... -
Page 10: Troubleshooting
Verify that the ftd2xx.dll file is in the same folder as the GasDataLogging executable program. Try using a different USB cable. Go to CO2Meter.com, select the App Notes tab, and follow the Windows reports instructions for “unknown device” http://www.co2meters.com/Documentation/AppNotes/AN153-GasLab-Driver- error Installation.pdf...
