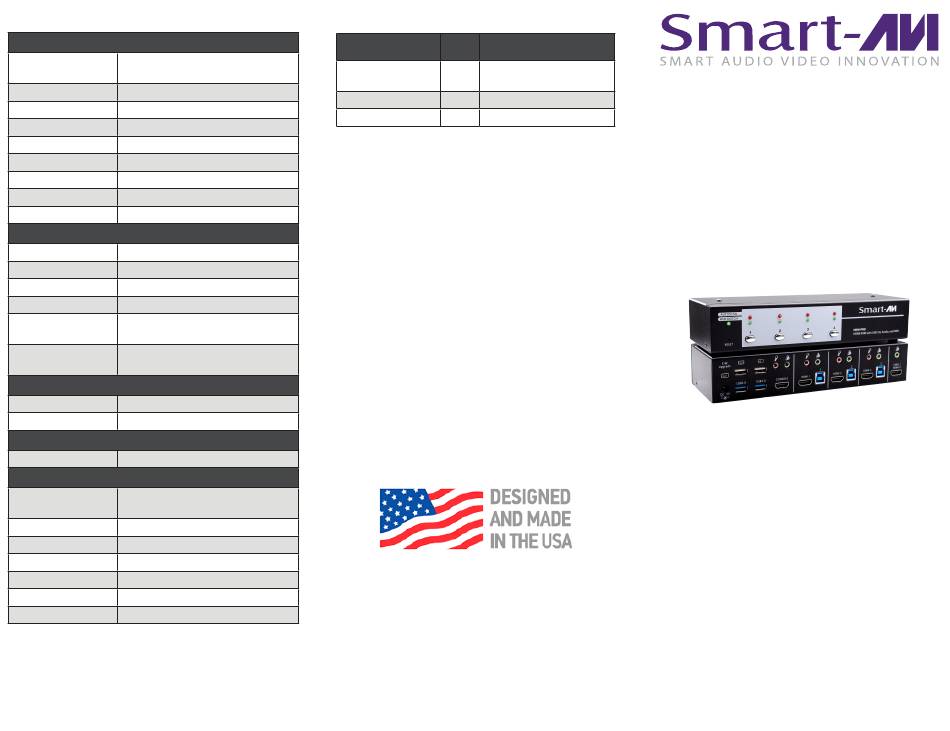

SMART-AVI HKM-PRO Quick Start Manual

TECHNICAL SPECIFICATION
VIDEO
HDMI 1.3b [Deep Color, xvYcc color
Format
space supported]
DVI Compliance Single-link DVI-D 1.1
HDCP Compliance 1.0/1.1
Video Bandwidth Single-link 340MHz [10.2Gbps]
Resolution 480i,480p,720i,720p,1080i,1080p
Input Interface (4) HDMI [7.1ch audio & video]
Output Interface (1) HDMI [7.1ch audio & video]
Connector Type A[19-pin female]
Maximum Distance 25 ft.
AUDIO
Frequency Response 20 Hz to 20 KHz
Impedance 600 ohm
Nominal Level 0-1.0 V
Common Mode Rejection at 60dB
(4) 3.5 mm Stereo Audio;
Input Interface
(3) Microphone Jack Female
(1) 3.5 mm Stereo Audio;
Output Interface
(1) Microphone Jack Female
USB
Input Interface (3) USB Type B
Output Interface (2) USB Type A
CONTROL
Front Panel Tact Switch
OTHER
External 100-240 VAC/5VDC4A
Power
@10W
Dimensions 8.7"W X 3.2"D X 1.9"H
Weight 1.55 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
4 Port KVM HDMI, USB3.0,
HKM-PRO-S 1
Audio switch
PS5VD4A 1 PS5VD4A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
HKM-PRO
HDMI KVM SWITCH
with USB 3.0 HUB
THE NEXT GENERATION HDMI
KVM SWITCH, FEATURING
THREE USB 3.0 PORTS
AND AN MHL PORT
Quick Start Guide
