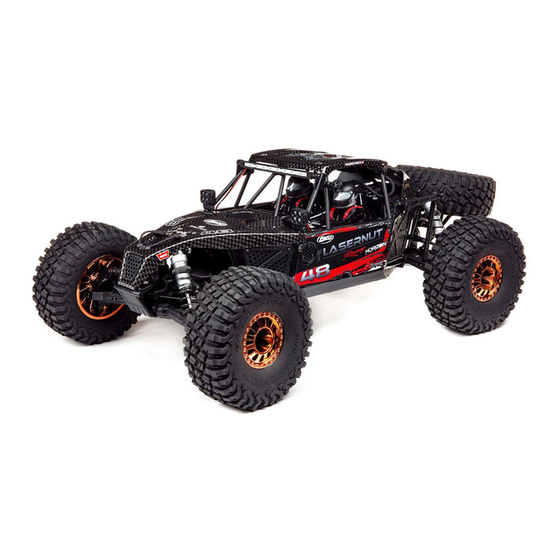

- Page 1 LASERNUT TENACITY ULTRA 4 ROCK RACER 1/10 Scale 4WD RTR INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’UTILISATION MANUALE DI ISTRUZIONI Before operating this vehicle, please read all printed materials thoroughly. Horizon Hobby is not responsible for inadvertent errors in this manual.
-
Page 2: Table Of Contents
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product. MEANING OF SPECIAL LANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury. -
Page 3: Box Contents
BOX CONTENTS COMPONENTS • Losi ® Tenacity™ Lasernut Ultra 4 1/10-Scale 4WD RTR Rock Racer • Spektrum ™ ™ SMART Transmitter (SPMR2340) • Spektrum SR6100AT 6 Channel AVC Telemetry Surface Receiver (SPMSR6100AT) • Spektrum 15KG 23T Waterproof Metal Center Case Servo (SPMS614) •... - Page 4 INSTALLING THE BATTERY 1. Ensure the ESC is powered OFF. 2. Remove the body clips and rotate the body up. 3. Undo the hook and loop straps. 4. Insert the battery into the battery tray. 5. Secure the hook and loop straps. 6.
- Page 5 SR6100AT AVC TECHNOLOGY TELEMETRY RECEIVER Bind Button AUX CHANNELS The Aux channels can operate as additional servo channels, or as a power supply Battery/Programming Port for a personal transponder. Steering Port If AVC is active, only 4 channels; Steering, Throttle, AUX3 and AUX4 are operational. Throttle Port The reaming Aux channels can be used to power a personal transponder or lights.
-
Page 6: Esc Led Status
RUN TIME CHANGING THE TRAVEL ADJUST SETTINGS Set the travel adjust settings with all four vehicle wheels off the ground. The throttle end point The largest factor in run time is the capacity of the battery pack. A larger mAh rating increases and brake end point adjustments will cause the wheels to spin at full speed. -
Page 7: Esc Functions And Modes
ESC FUNCTIONS AND MODES The ESC includes programming options so you can adjust the way your vehicle performs. Refer to the included programming table to adjust the ESC for your driving conditions. PROGRAMMING TABLE Default Settings PROGRAMMING VALUE PROGRAMMING ITEMS Forward/Reverse 1. -
Page 8: Precautions
SPEKTRUM FIRMA 1900KV BRUSHLESS MOTOR ™ ™ PRECAUTIONS SETTING THE GEAR MESH • Never touch moving parts. The gear mesh has already been set at the factory. Setting it is only necessary when changing motors or gears. • Never disassemble while the batteries are installed. Proper gear mesh (how gear teeth meet) is important to the performance of the vehicle. -
Page 9: Warranty And Service Contact Information
NOTICE: Do not ship Li-Po batteries to Horizon. If you have any issue with a These terms are governed by Illinois law (without regard to conflict of law principals). This Li-Po battery, please contact the appropriate Horizon Product Support office. warranty gives you specific legal rights, and you may also have other rights which vary from state Warranty Requirements to state. -
Page 10: Replacement Parts
REPLACEMENT PARTS // TEILELISTE // LISTE DES PIÈCES DE RECHANGE // ELENCO DEI RICAMBI Part # English Deutsch Français Italiano LOS230072 Body Clip Leash (4) Gehäuseklemme Schnur (4) Laisse de clip de carrosserie (4) Lacci per clip per carrozzeria (4) LOS230075 Body Set, Blue, Painted Karosseriesatz, blau, lackiert... -
Page 11: Recommended Parts
REPLACEMENT PARTS // TEILELISTE // LISTE DES PIÈCES DE RECHANGE // ELENCO DEI RICAMBI Part # English Deutsch Français Italiano TLR235007 Flat Head Screw, M2.5 x 10mm (10) Flachkopfschraube M2,5 x 10mm (10) Vis à tête plate M2,5 x 10 mm (10) Smart ESC Firma 130 A Brushless TLR255008 Button Head Screw, M4 x 16mm (10) -
Page 12: Exploded View
EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI TLR6313 LOS231024 TLR5904 LOS231057 LOS231057 TLR5910 LOS231027 TLR5904 LOS231026 LOS231026 LOS231033 LOS231027 LOS232030 TLR235007 TLR5904 TLR5964 LOS232026 LOS237000 LOS232024 TLR5963 LOS232027 LOS237002 LOS232023 LOS234037 LOS237002 LOS232027 LOS232023 LOS232026 LOS237000... - Page 13 EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI LOS230079 TLR235007 TLR5911 LOS234036 LOS232023 LOS232026 LOS232030 TLR5965 LOS237000 LOS232028 LOS232023 LOS232026 LOS237002 LOS232023 LOS232029 LOS232024 LOS237000 LOS232023 LOS232030 LOS237002 TLR5908 TLR255013 TLR5911 LOS234019 LOS234023 LOS234022 TLR6313 LOS234021 LOS232032...
- Page 14 EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI LOS235024 TLR6313 LOS233026 TLR336005 LOSB2906 LOS236000 TLR5904 LOS233027 LOS233028 LOS233025 SPMS614 LOS233011 SPMSR6100AT LOS233014 LOS235011 LOS233015 TLR5905 LOS231054t LOS233013 TLR6313 TLR5963 LOS235025 TLR5903 TLR5963 LOS231030 TLR5903 LOS231064 LOS231064 SPMXSE1130...
- Page 15 EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI LOS43028 LOS230078 LOS234038 LOS235025 TLR5903 LOS230079 TLR5903 TLR5903 LOS230080 LOS230079 TLR5901 LOS234038 TLR5903 LOS235025 TLR5903 TLR5901 TLR5901 TLR5903 LOS230079 TLR5901 LOS230079 LOS230079 TLR5903 LOS230078 TLR5903 LOS230079 LOS230079 TLR5901 SPMXSM2200...
- Page 16 EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI LOS231065 LOS231065 TLR5901 LOS231065 TLR5901 LOS230076 LOS230077 TLR5901 TLR5901 LOS231065 LOSI ® TENACITY ™ LASERNUT ULTRA 4 1/10 4WD RTR ROCK RACER...
- Page 17 WWW.LOSI.COM 60778 | ©2020 Horizon Hobby, LLC. Losi, Tenacity, Firma, DX3, DSM, DSM2, DSMR, AVC, Active Vehicle Control, Fuze, IC5 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. The Lasernut name and logo and vehicle cage design are property of Cody Waggoner, used under license.
