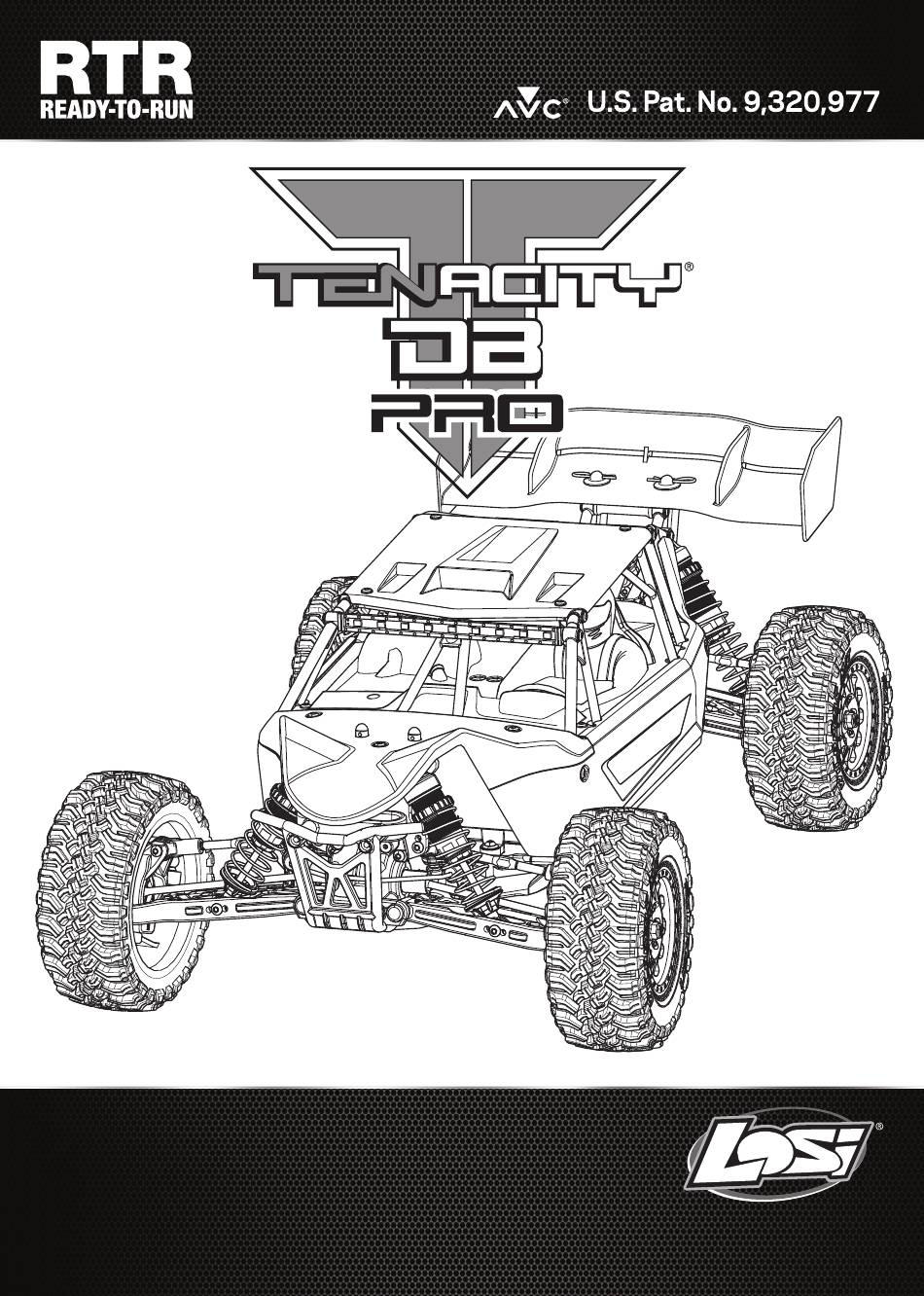

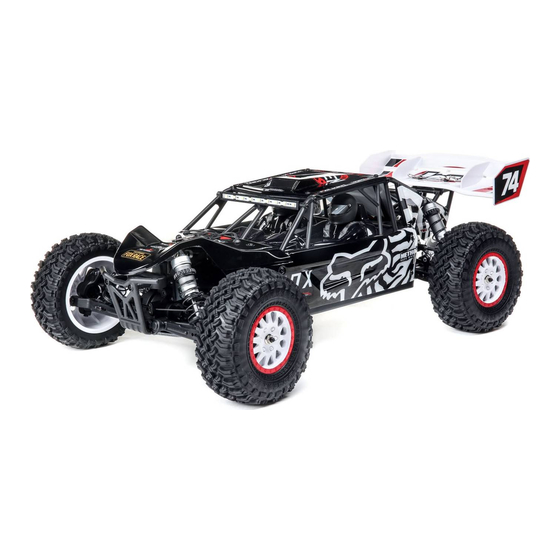

- Page 1 INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’UTILISATION Before operating this vehicle, please read all printed materials thoroughly. MANUALE DI ISTRUZIONI Horizon Hobby is not responsible for inadvertent errors in this manual.
-
Page 2: Table Of Contents
PERFORMING A CONTROL DIRECTION TEST.............6 COMPLIANCE INFORMATION FOR THE EUROPEAN UNION ........9 CHANGING THE TRAVEL ADJUST SETTINGS .............6 REPLACEMENT PARTS ....................34 RECOMMENDED PARTS..................35 OPTIONAL PARTS ....................35 EXPLODED VIEW ....................36 TENACITY-DB PRO RTR, AVC: 1:10 4WD DESERT BUGGY • INSTRUCTION MANUAL... -
Page 3: Box Contents
LiPo IC5 hardcase battery with IC5 connector (SPMX50003S50H5). Choose a charger designed IMPORTANT: When using a 3S battery, you must change the motor pinion gear to the 15T to charge 2S and/or 3S Li-Po batteries. pinion provided with your vehicle. TENACITY-DB PRO RTR, AVC: 1:10 4WD DESERT BUGGY • INSTRUCTION MANUAL... - Page 4 The reaming Aux channels can be used to power a personal transponder or lights. If AVC is disabled (see DISABLING AVC TECHNOLOGY STABILITY ASSIST FUNCTION), all 6 channels including the Aux channels can operate as servo channels. TENACITY-DB PRO RTR, AVC: 1:10 4WD DESERT BUGGY • INSTRUCTION MANUAL...
- Page 5 When the transmitter 4. Perform a Control Direction Test. is bound to a DSM ® , DSM2 ® or DSM Marine receiver, the ST RATE knob controls the steering dual rate. TENACITY-DB PRO RTR, AVC: 1:10 4WD DESERT BUGGY • INSTRUCTION MANUAL...
-
Page 6: Audible Warning Tones
The ESC will continue to draw current when connected to the battery, resulting in possible damage to the battery through over discharge. TENACITY-DB PRO RTR, AVC: 1:10 4WD DESERT BUGGY • INSTRUCTION MANUAL... -
Page 7: Esc Functions And Modes
5. Max Brake Force Adjusts the maximum braking force. A higher value provides stronger braking, but can also cause the wheels to lock, resulting in loss of control of the car. TENACITY-DB PRO RTR, AVC: 1:10 4WD DESERT BUGGY • INSTRUCTION MANUAL... -
Page 8: Spektrum Firma ™ 3150Kv Brushless Motor
If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase. TENACITY-DB PRO RTR, AVC: 1:10 4WD DESERT BUGGY • INSTRUCTION MANUAL... -
Page 9: Compliance Information For The European Union
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Horizon Hobby, LLC 2904 Research Rd., Champaign, IL 61822 Email: compliance@horizonhobby.com Web: HorizonHobby.com TENACITY-DB PRO RTR, AVC: 1:10 4WD DESERT BUGGY • INSTRUCTION MANUAL... -
Page 10: Replacement Parts
REPLACEMENT PARTS // TEILELISTE // LISTE DES PIÈCES DE RECHANGE // ELENCO DEI RICAMBI Part # English Deutsch Français Italiano LOS230070 Body Set, Lucas Oil Karosseriesatz, Lucas-Öl Ensemble carrosserie, Lucas Oil Set carrozzeria, Lucas Oil LOS230071 Body Set, FOX Racing Karosseriesatz, FOX Racing Ensemble carrosserie, FOX Racing Set carrozzeria, FOX Racing... -
Page 11: Recommended Parts
REPLACEMENT PARTS // TEILELISTE // LISTE DES PIÈCES DE RECHANGE // ELENCO DEI RICAMBI Part # English Deutsch Français Italiano TLR255008 Button Head Screws, M4x16mm (10) Rundkopfschrauben, M4 x 16 mm (10) Vis à tête bombée, M4 x 16 mm (10) Viti a testa tonda, M4 x 16 mm (10) TLR255013 Flat Head Screws, M4x12mm (10) Flachkopfschrauben, M4 x 12 mm (10) -
Page 12: Exploded View
EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI TLR6313 LOS231024 TLR5904 LOS231057 LOS231057 TLR5910 LOS231027 TLR5904 LOS231026 LOS231026 LOS231033 LOS231027 LOS232030 TLR235007 TLR5904 TLR5964 LOS232026 LOS237000 LOS232024 TLR5963 LOS232027 LOS237002 LOS232023 LOS234037 LOS237002 LOS232027 LOS232023 LOS232026 LOS237000... - Page 13 EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI TLR5911 LR235007 LOS234036 LOS232023 LOS232026 LOS232030 TLR5965 LOS234037 LOS237000 LOS232028 LOS232023 LOS232026 LOS237002 LOS232023 LOS232029 LOS232024 LOS237000 LOS232023 LOS232030 LOS237002 TLR5908 TLR255013 TLR5911 LOS234019 LOS234023 LOS234022 TLR6313 LOS234021 LOS232032...
- Page 14 EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI LOS235024 TLR6313 LOS233026 TLR336005 LOSB2906 LOS236000 TLR5904 LOS233027 LOS233028 LOS233025 SPMS605 LOS233011 SPMSRS6000 LOS233014 LOS235011 LOS233015 TLR5905 LOS231054t LOS233013 TLR6313 TLR5963 TLR5903 LOS235025 TLR5963 LOS231030 TLR5903 LOS231023 LOS231054 SPMSE1130...
- Page 15 EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI TLR8202 LOS230070 LOS230045 LOS230071 LOS230070 LOS230071 LOS231041 TLR5911 LOS231041 TLR5909 LOS230070 LOS230070 LOS230071 LOS230071 LOS230070 LOS230071 LOS230070 LOS230071 SPMXSM1000 TLR6352 TLR5932 LOS235012 LOS231041 LOS232034 LOSA3575 LOSA3577 TLR3100 LOS231031 LOS232026...
- Page 16 WWW.LOSI.COM ©2019 Horizon Hobby, LLC. Losi, Tenacity, Firma, DSM, DSM2, DSMR, AVC, Active Vehicle Control, Dynamite, Prophet, Fuze, Active, IC5 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. US 9,320,977.
