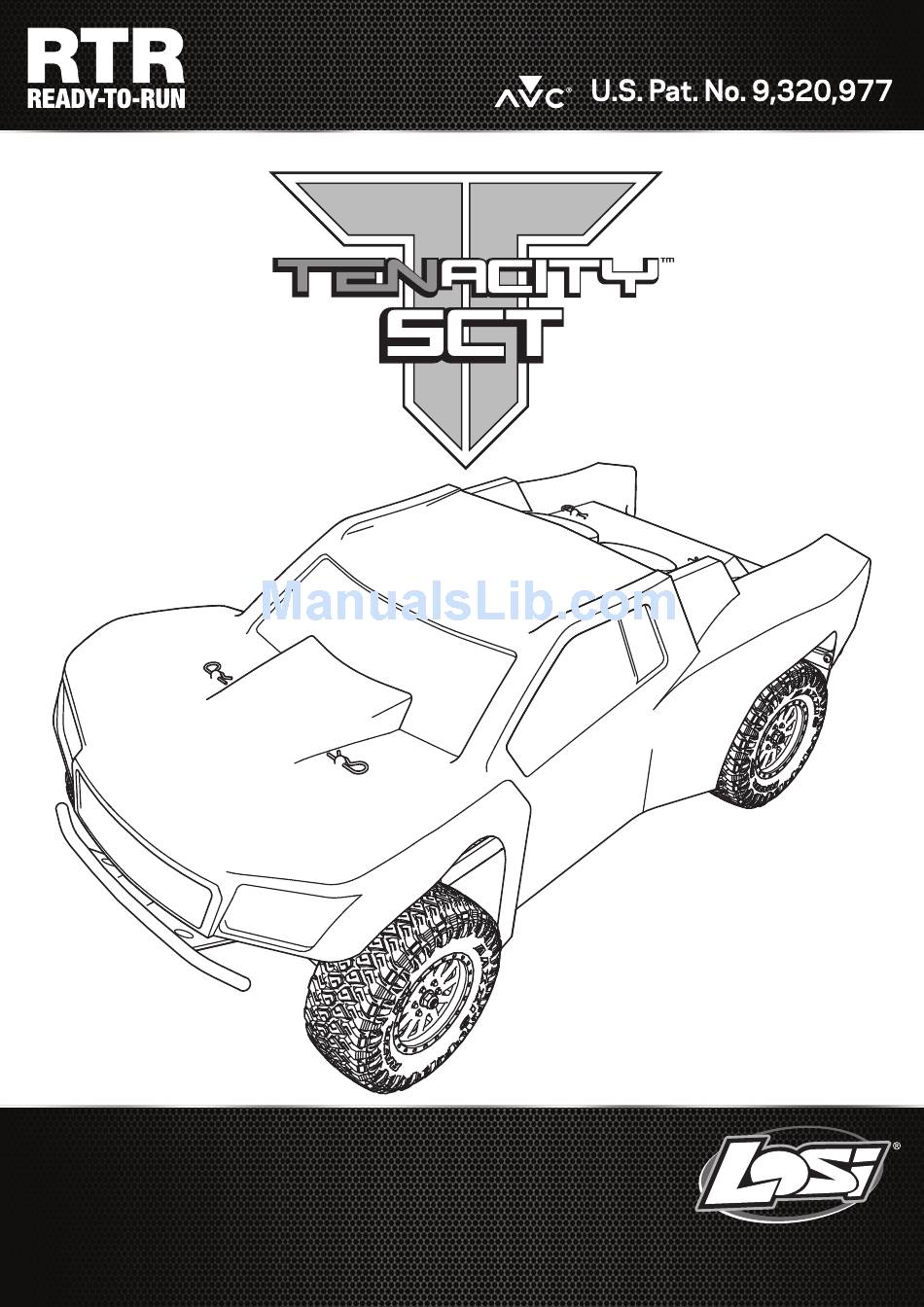

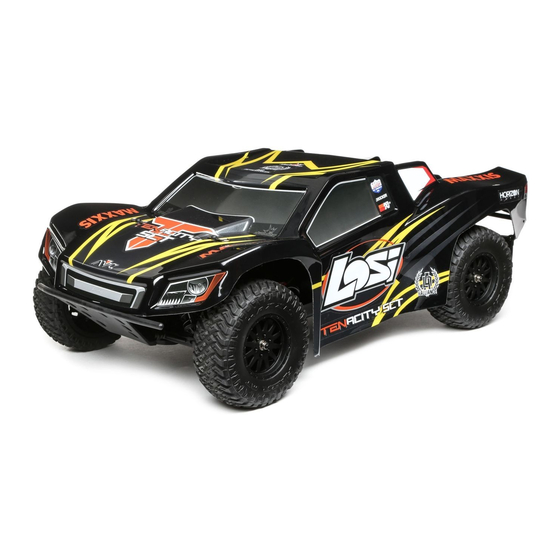

- Page 1 INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’UTILISATION Before operating this vehicle, please read all printed materials thoroughly. MANUALE DI ISTRUZIONI Horizon Hobby is not responsible for inadvertent errors in this manual.
-
Page 2: Table Of Contents
Register your vehicle now and be the fi rst to fi nd out about the latest option parts, product updates and more. Click on the Support tab at WWW.LOSI.COM and follow the product registration link to stay connected. TENACITY SCT RTR, AVC: 1:10 4WD SCT • INSTRUCTION MANUAL... -
Page 3: Box Contents
IMPORTANT: When using a 3S battery, you must change the motor pinion gear to the 12T (DYN9007EC). Choose a charger designed to charge 2S and/or 3S Li-Po batteries. We pinion provided with your vehicle. TENACITY SCT RTR, AVC: 1:10 4WD SCT • INSTRUCTION MANUAL... -
Page 4: Installing The Battery
Aux channels can be used to power a personal transponder or lights. If AVC is disabled (see DISABLING THE STABILITY ASSIST FUNCTION), all 6 channels including the Aux channels can operate as servo channels. TENACITY SCT RTR, AVC: 1:10 4WD SCT • INSTRUCTION MANUAL... -
Page 5: Binding And Calibrating The Receiver
When the transmitter is bound to a DSM ® , DSM2 ® or DSM Marine receiver, 4. Perform a Control Direction Test. the ST RATE knob controls the steering dual rate. TENACITY SCT RTR, AVC: 1:10 4WD SCT • INSTRUCTION MANUAL... -
Page 6: Dynamite® Fuze™ 130A Sensorless Brushless Esc (Dyn4955)
2. Radio Connection: The ESC checks radio signal input when it is powered ON. If a problem is detected, the ESC continuously sounds 1 beep with a 2 second pause (x--x--x). Power OFF the ESC and ensure the radio system is operating correctly. TENACITY SCT RTR, AVC: 1:10 4WD SCT • INSTRUCTION MANUAL... -
Page 7: Esc Functions And Modes
5. Max Brake Force Adjusts the maximum braking force. A higher value provides stronger braking, but can also cause the wheels to lock, resulting in loss of control of the car. TENACITY SCT RTR, AVC: 1:10 4WD SCT • INSTRUCTION MANUAL... -
Page 8: Dynamite® Fuze™ 3800Kv Brushless Motor (Dyns1616)
SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY. TENACITY SCT RTR, AVC: 1:10 4WD SCT • INSTRUCTION MANUAL... -
Page 9: Warranty And Service Contact Information
For more information about where you can drop off your waste equipment for recycling, please contact your local city offi ce, your household waste disposal service or where you purchased the product. TENACITY SCT RTR, AVC: 1:10 4WD SCT • INSTRUCTION MANUAL... - Page 10 Button Head Screws, M3 x 10mm (10) Halbrundschrauben, M3 x 10 mm (10) Vis à tête bombée M3 x 10mm (10) Viti a testa tonda, M3 x 10 mm (10) TENACITY SCT RTR, AVC: 1:10 4WD SCT • MANUALE DI ISTRUZIONI...
- Page 11 22 SCT - Jantes blanches (2) Cerchione bianco (2): 22SCTTLR8061 Hi Performance Body, Clear, Precut: Hochleistungskarosserie, farblos, vorge- 22SCT/2.0/SCTE - Carrosserie hautes Carrozzeria high-performance, TLR8061 22SCT/2.0/SCTE schnitten: 22SCT/2.0/SCTE performances pré-découpée transparente trasparente, pretagliata: 22SCT/2.0/SCTE TENACITY SCT RTR, AVC: 1:10 4WD SCT • MANUALE DI ISTRUZIONI...
-
Page 12: Exploded View
LOS232030 TLR5933 TLR5964 TLR6313 TLR5902 LOS234019 TLR5964 LOS231028 LOS234023 LOS234022 LOS231025 TLR5911 LOS234021 LOS234016 LOS232032 TLR5905 LOS232032 TLR5933 TLR5909 LOS237001 LOS234021 LOS234016 LOS235026 LOSA6940 TLR255008 LOS234018 LOS234021 LOS235026 LOS232031 TENACITY SCT RTR, AVC: 1:10 4WD SCT • MANUALE DI ISTRUZIONI... - Page 13 LOS234021 LOS234017 LOS232032 LOS234021 TLR6313 LOS232032 TLR5963 LOS234020 LOS232030 TLR5965 LOS232023 LOS232031 TLR6313 LOS237000 LOS232023 LOS237001 TLR5908 LOS232028 LOSA6940 LOS232026 LOS232029 LOS232023 LOS232026 LOS237002 LOS232028 LOS237000 LOS232023 LOS232024 LOS232030 TENACITY SCT RTR, AVC: 1:10 4WD SCT • MANUALE DI ISTRUZIONI...
- Page 14 TLR6313 LOS233013 LOS231026 LOS231027 TLR8202 LOS231024 TLR5903 SPMSRS6000 TLR5904 TLR5963 DYN4955 TLR6352 LOS235011 LOS231024 SPMS605 LOS231023 LOS43015 LOS43006 TLR5964 TLR255013 TLR5963 LOS43016 TLR255013 TLR5963 LOS231023 LOS231032 TLR5964 LOS231032 LOS235027 TENACITY SCT RTR, AVC: 1:10 4WD SCT • MANUALE DI ISTRUZIONI...
- Page 15 EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI TLR8202 LOS230035 LOS230034 TLR5903 TLR6313 LOS235025 DYNS1616 LOS231023 TLR5963 TLR5903 LOS231031 TLR6352 TLR5932 LOS235012 LOS232034 LOS231030 LOS232030 LOS232025 LOS232026 LOS237000 TLR235007 LOS232026 TLR5901 LOS232029 LOS232023 LOS232033 LOS232030 LOS237000 TENACITY SCT RTR, AVC: 1:10 4WD SCT • MANUALE DI ISTRUZIONI...
- Page 16 WWW.LOSI.COM ©2017 Horizon Hobby, LLC. Losi, Tenacity, DSM, DSM2, DSMR, AVC, Active Vehicle Control, EC3, Dynamite, Fuze, Prophet and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. US 9,320,977.
