Westin 27-1805 Instructions

2007-15 toyota tundra regular cab

Advertisement

Quick Links

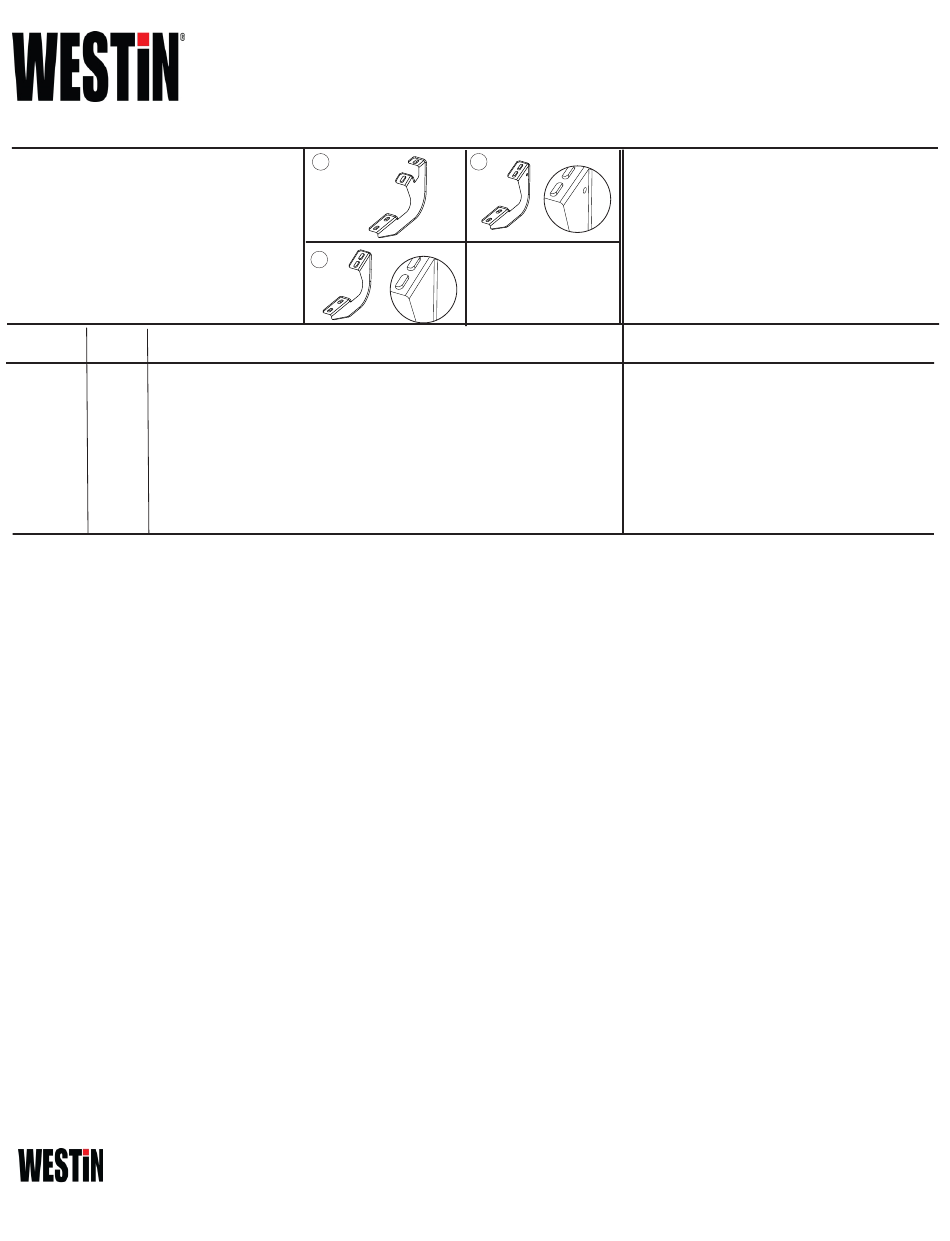

MOUNT KIT
27-1805

CONTENTS

ITEM
QTY
1
2
FRONT BRACKET
2
2
CENTER BRACKET
3
2
REAR BRACKET
4
12
M8-1.25 X 30MM HEX HEAD BOLT
5
24
M8 FLAT WASHER
6
12
M8 LOCK WASHER
7
12
M8-1.25 X 20MM SQUARE HEAD BOLT
8
12
M8 NYLOCK NUT
STEP 1. Remove contents from box, verify if all parts listed are present and free from damage.
Carefully read and understand all instructions before attempting installation.
Failure to identify damage before installation could lead to a rejection of any claim.
STEP 2. Determine front, center, rear brackets. Rear bracket has 1 identification hole. SEE FIGURE 1.
STEP 3. Attach drivers side brackets to underside of body panel using two M8-1.25 x 30mm hex head bolts, M8 flat washers, and M8
lock washers per bracket. Hand tighten. SEE FIGURE 1.
STEP 4. If desired, cut Sure-Grip Running Board to custom length. Remove end cap, cut to length, and attach end cap. SEE FIGURE 8.
Insert square head bolts as shown (3 per slot, 6 per board). SEE FIGURES 3 AND 4. NOTE: For lighted boards, run wiring harness
prior to attaching board to brackets (refer to Step 6). SEE FIGURE 7. Run longer wire harness on passenger side.
STEP 5. For Sure-Grip Running Boards, slide closure strip as shown. Set lights (if purchased) in appropriate location. Attach to Sure-Grip
Running Board as shown. SEE FIGURE 2. Drill hole through plastic strip and run wires as shown. SEE FIGURE 5.
STEP 6. Attach Running board to brackets as shown. Align and torque M8 to 22 Ft. Lbs. SEE FIGURE 6.
NOTE: For lighted version of Step board, remove plastic cover from each end of under side of Step board. Proceed to Steps 7
and 8.
Warning: INSTALLING LIGHT HARNESS REQUIRES SPLICING INTO VEHICLES ELECTRICAL SYSTEM. WESTIN RECOMMENDS USING A
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N. 75-0810-RevC
ECO# W18-0996
INSTRUCTIONS
APPLICATION: 2007-15 TOYOTA TUNDRA REGULAR CAB
1
3
2
TOOLS
13MM SOCKET
13MM WRENCH
RATCHET
RATCHET EXTENSION
TORQUE WRENCH
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
DATE: 12/11/18
