Westin 27-74715 Installation Instructions

Grate steps running board

Advertisement

Quick Links

ITEM
QUANTITY
1,2
2
3
6*
4
6*
5
6
6
4
7
16
8
16
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Passenger Side Opposite
1. Remove contents from box, verify if all parts listed are present and free from damage.
Carefully read and understand all instructions before attempting installation.
Failure to identify damage before installation could lead to a rejection of any claim.
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-2774715-RevA
ECO #: W18-0175
INSTALLATION INSTRUCTIONS
PART NUMBER:
27-74715 (68" Running Board)
CONTENT

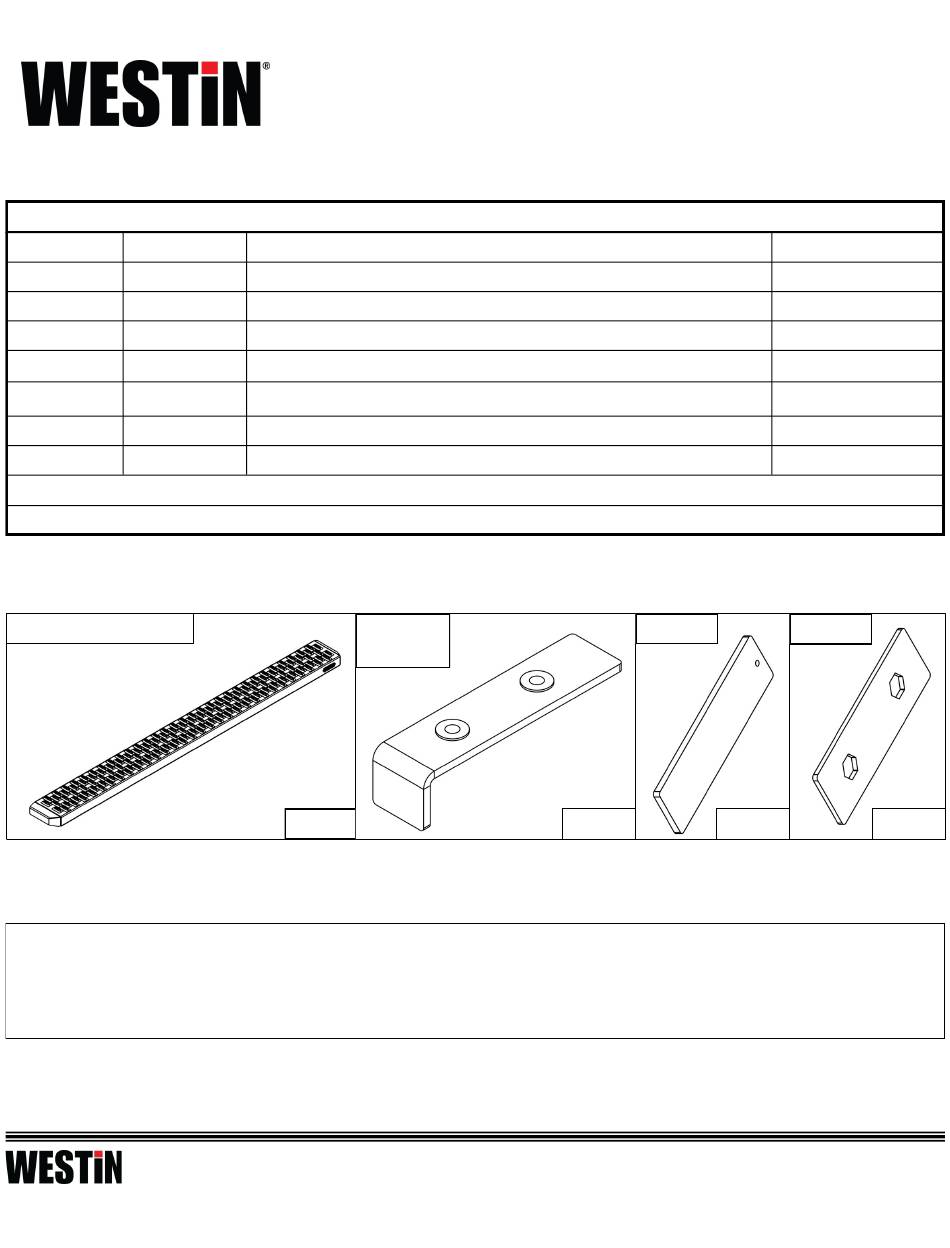

RUNNING BOARD ASSEMBLY, DRIVER (1) AND PASSENGER (2)
ADAPTER BRACKET
M8 SET SCREW (BLACK ZINC)
M8 SPLIT LOCK WASHER (YELLOW ZINC)
M8 HEX NUT (YELLOW ZINC)
*INCLUDED IN RUNNING BOARD ASSEMBLIES
ADAPTER
BRACKET
ITEM 1

PROCEDURE

Grate Steps Running Board
DESCRIPTION
PLATE A
PLATE B
ITEM 3
Thank you for choosing Westin products
for additional installation assistance please call
1
TOOLS NEEDED
13MM SOCKET
4MM HEX KEY
RATCHET
TORQUE WRENCH
PLATE A
PLATE B
ITEM 4
Customer Service (800) 793-7846
www.westinautomotive.com
ITEM 5
DATE: 03/12/19
