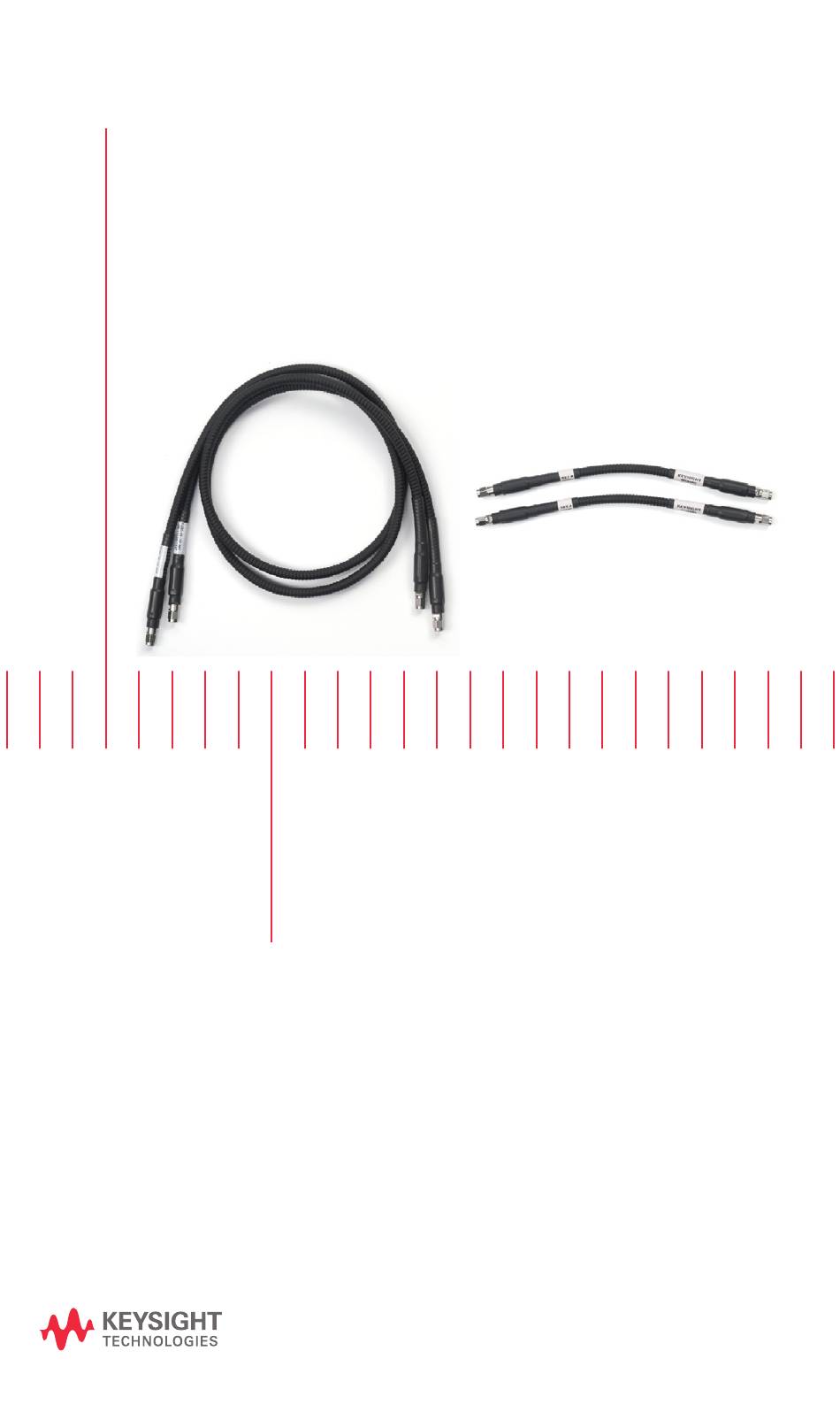

Keysight N2823A and
N5448B Coaxial Phase
Matched Cables
User's Guide
The Keysight N5448B and N2823A consist of
a pair of phase matched flexible coaxial ca-
bles with 2.92 mm male connectors on both
ends, providing extended cable length to the
compatible Keysight test fixtures, InfiniiMax
2.92 mm probe heads and other RF/micro-
wave test connections. These cables allow
flexibility, convenience and improved usabil-
ity to the test setup.
Advertisement
Related Manuals for Keysight N2823A
Summary of Contents for Keysight N2823A
- Page 1 Keysight N2823A and N5448B Coaxial Phase Matched Cables User’s Guide The Keysight N5448B and N2823A consist of a pair of phase matched flexible coaxial ca- bles with 2.92 mm male connectors on both ends, providing extended cable length to the compatible Keysight test fixtures, InfiniiMax 2.92 mm probe heads and other RF/micro-...
-
Page 2: Warranty
Technology Licenses The hardware and/or software described in this document are furnished under a license and may be used or copied only in accor- dance with the terms of such license. N5448B and N2823A Coaxial Phase Matched Cables User Guide... - Page 3 WEEE Directive Annex I, this product is classed as a "Monitoring and Control instrumentation product. Do not dispose in household waste. To return unwanted products, contact your local Keysight office, or see www.keysight.com/environment/product/ more information. N5448B and N2823A Coaxial Phase Matched Cables User Guide...
- Page 4 N5448B and N2823A Coaxial Phase Matched Cables User Guide...
- Page 5 N2823A and N5448B Coaxial Phase Matched Cables User Guide Cables Compatibility The N2823A 39 inches (1 m) long cable is compatible with the following Keysight test fixtures: • N7015A Type-C high-speed plug test fixture • N7016A Type-C low-speed signal access and control fixture.
- Page 6 Cable Features • Low signal loss • Broad frequency range • 2.92mm (male) to 2.92mm (male) connection • Improved usability by adding extra length to the test fixtures and probe heads N2823A and N5448B Coaxial Phase Matched Cables User Guide...
- Page 7 • Tightly matched phase error • Up to 40GHz bandwidth • Strain relieved N2823A and N5448B Coaxial Phase Matched Cables User Guide...
- Page 8 25 dB (1.7-4GHz) 22 dB (4-10GHz) 22 dB (4-10GHz) 20 dB (10-16GHz) 20 dB (10-16GHz) 18 dB (16-32GHz) 18 dB (16-32GHz) 15 dB (32-40GHz) 15 dB (32-40GHz) * - Indicates a Reference value. N2823A and N5448B Coaxial Phase Matched Cables User Guide...
- Page 9 Insertion Loss Plots for Cables Figure 1 Insertion Loss Plot for N2823A Cable Figure 2 Insertion Loss Plot for N5448B Cable N2823A and N5448B Coaxial Phase Matched Cables User Guide...
- Page 10 Usage Examples The following are some examples of the usage of the N2823A / N5448B cables with Keysight test fixtures and probe heads. N2823A and N5448B Coaxial Phase Matched Cables User Guide...
- Page 11 N7015A Type-C High Speed Test Fixture to facilitate their connectivity with the Infiniium Oscilloscope channels. N2823A and N5448B Coaxial Phase Matched Cables User Guide...
- Page 12 N7015A test fixture in the de-embedding software such as InfiniiSim, download the S-parameter file from . On this www.keysight.com/find/N2823A product page, click the Technical Support link and then click the Drivers, Firmware, & Software tab. N2823A and N5448B Coaxial Phase Matched Cables User Guide...
