Pella Rolscreen Installation, Operation And Care Instruction

Retractable screen for windows
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Rolscreen
Installation, Operation and Care Instruction

Parts Included in Kit:

• Screen Roller
• 5/8" x #5 screws (6 to 8)
• Front Cover
• Back Cover

Tools Required:

• #2 Phillips head screwdriver
1

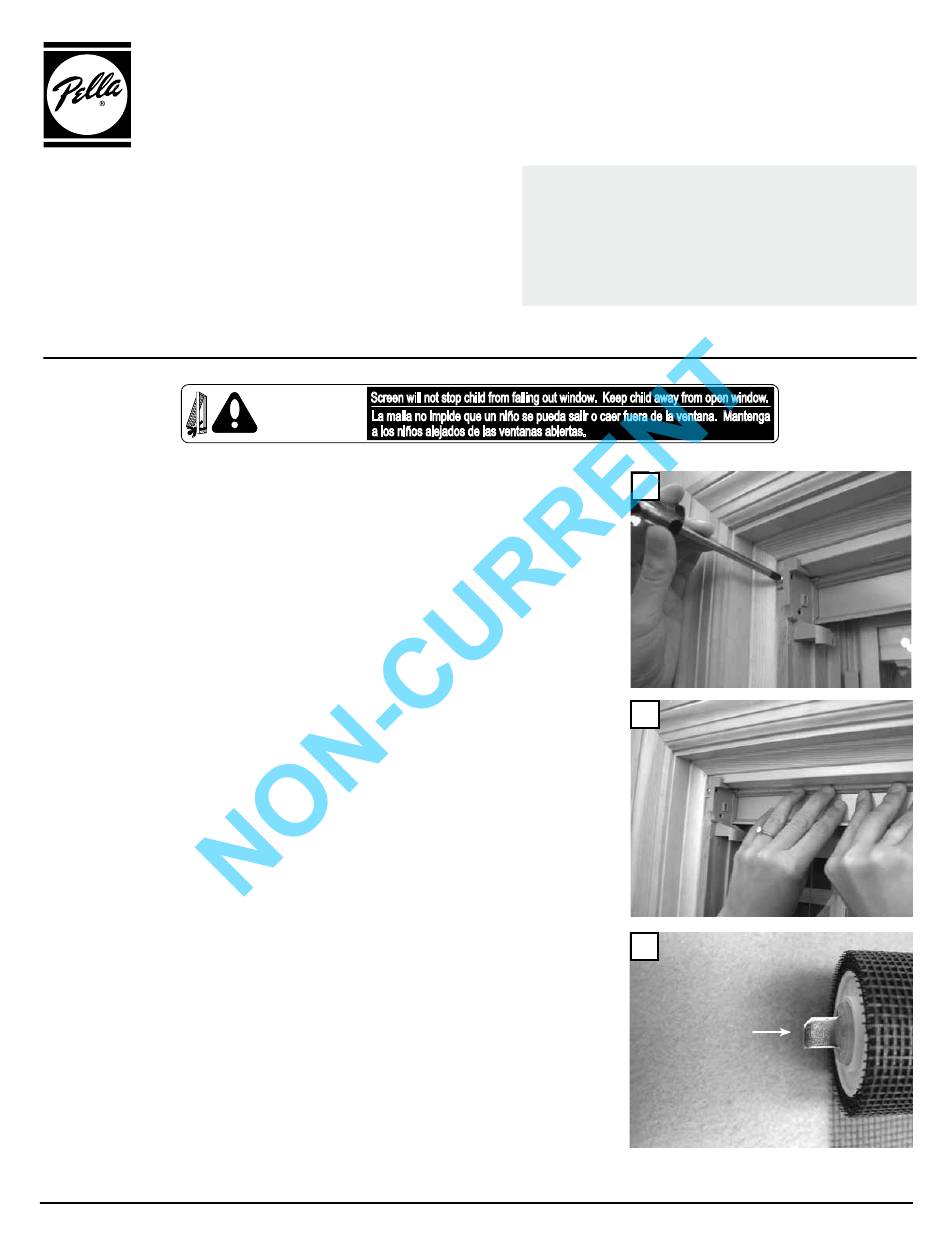

Installing The Screen:
A. Position left-hand end cap against left-hand jamb stop and up tight
against head stop. Drive (1) screw through hole in end cap and into
edge of jamb stop. Repeat for right-hand end cap.
B. Position back cover as shown and press firmly (snap fit) to attach the
back cover to the end caps.
C. Prepare the screen roller for installation by positioning the chamfer
end up.
© 2010 Pella Corporation
Retractable Screen For Windows
®
• Right-hand end cap
• Left-hand end cap
• Right-hand screen guide
• Left-hand screen guide
WARNING
Screen will not stop child from falling out window. Keep child away from open window.
La malla no impide que un niño se pueda salir o caer fuera de la ventana. Mantenga
ADVERTENCIA
a los niños alejados de las ventanas abiertas.
Instruction Index:

Step 1 - Installing The Screen

Step 2 - Cleaning The Screen

Step 3 - Adjusting Roller Tension

window
Page 1 of 4
78G30100
1A
1B
1C
Chamfer up
Part Number: 80RS0001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rolscreen and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pella Rolscreen

Summary of Contents for Pella Rolscreen

  • Page 1 B. Position back cover as shown and press firmly (snap fit) to attach the back cover to the end caps. C. Prepare the screen roller for installation by positioning the chamfer end up. Chamfer up Page 1 of 4 Part Number: 80RS0001 © 2010 Pella Corporation...
  • Page 2 Installing The Screen (continued): D. Install the left end of the roller into the left end cap (the plastic piece at the top of the screen guide), and then install the right end of the roller into the right end cap. Ensure that the screen cloth is not unrolled more than 2”.
  • Page 3 Installing The Screen (continued): I. Test the closing operation of screen by pushing down firmly with both hands on the screen bar and snapping the bar into place at the sill. J. Test the smoothness of screen operation by raising and lowering the screen several times.
  • Page 4 Adjusting Roller Tension (continued): H. Roll the screen back up by hand. Note: The screen must be uniformly rolled, and the edges must be kept straight and even. I. Position the chamfer end up (see Photo 1C). J. Install the left end of the roller into the left end cap (the plastic piece at the top of the screen guide), and then install the right end of the roller into the right end cap.
