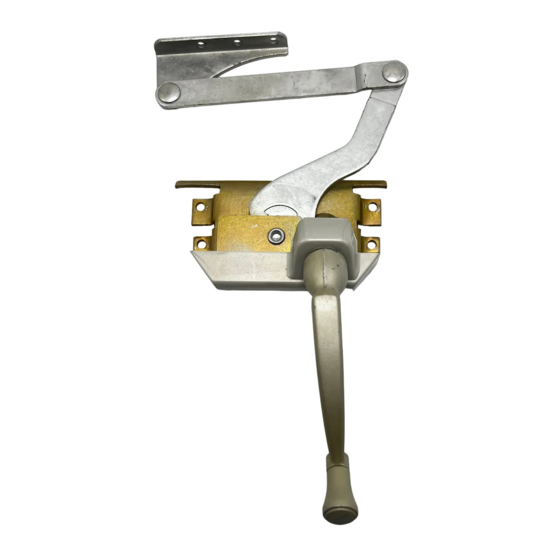

Roto Operator Replacement
Service Instruction
These instructions apply to:
®
Architect Series
1990-12/1999
®
Designer Series
1992-12/1999
Designer Series CLassic 1994-1998
ProLine
®
1991-3/2000
Awning windows: Remove the jamb frame
stop. See Supporting Document–Jamb Stop
Replacement–in web browser.
Casement windows: Remove sill frame stop.
See Supporting Document–Sill Frame Stop
Replacement–in web browser.
1

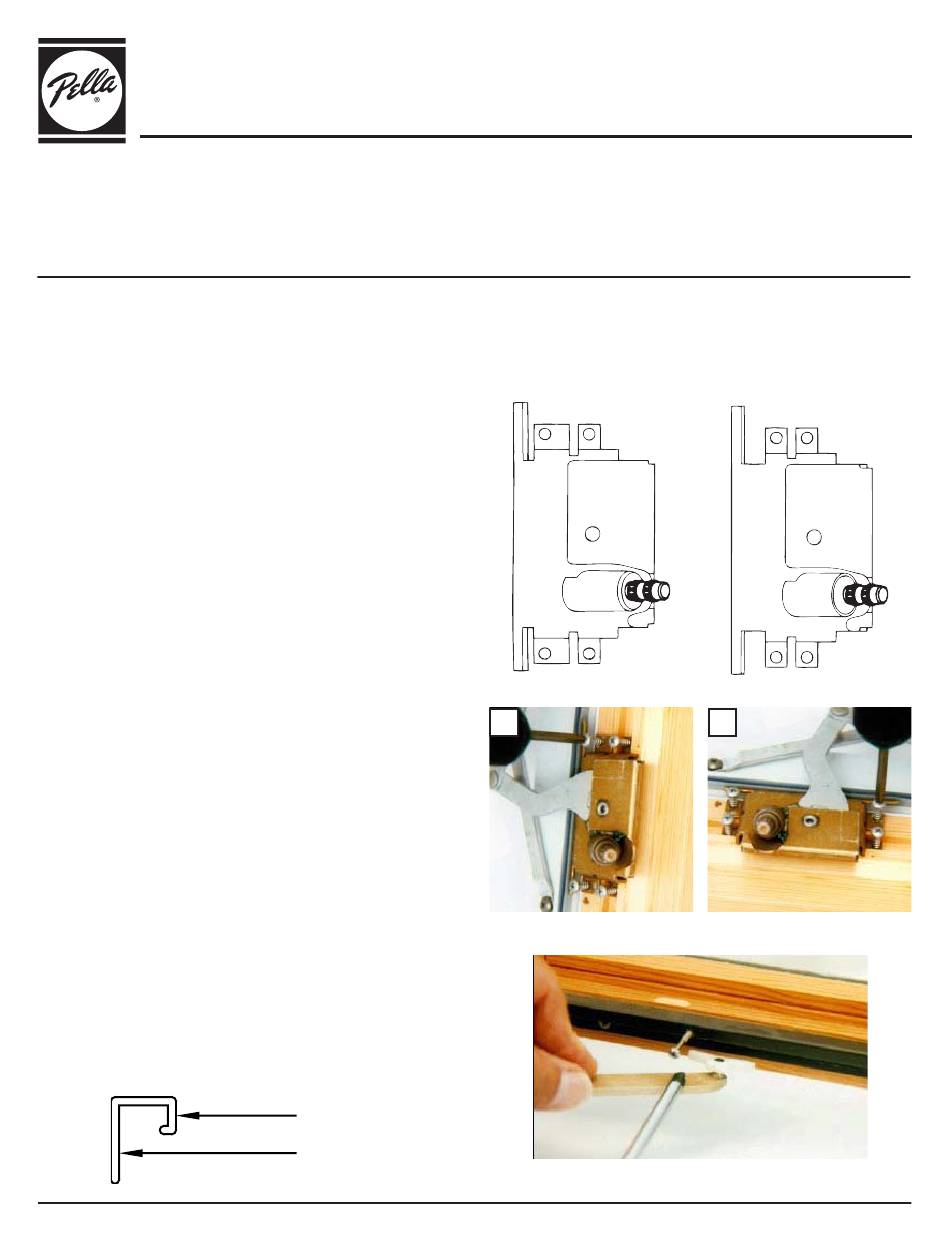

Replacing the Roto Operator:
A. Remove the screws hold ing the operator to the sash
and frame. Remove the operator.
Note: For egress roto operators, do the following:
1. Remove the sash stop screw from sash slide.
2. Align cutout in sash slide with end of operator arm.
Once aligned, press down on end of arm to re lease
from slide.
© Pella Corporation 2007
Tools Required:
• Screw driver
• Sealant Gun
• Sealant
Sash Stop Screw
optional locations
Page 1 of 2
Architect Series:
1990-1994
Designer Series:
1992
1A
Awning
Architect Series and Designer Series Casement ONLY
Rev. 06/22/07
Architect Series:
1995-12/1999
Designer Series:
1993-12/1999
ProLine:
1991-3/2000
1A
Casement
Part Number: NA
Advertisement
Related Manuals for Pella Roto Operator
Summary of Contents for Pella Roto Operator
- Page 1 Casement windows: Remove sill frame stop. 1992 1991-3/2000 See Supporting Document–Sill Frame Stop Replacement–in web browser. Replacing the Roto Operator: A. Remove the screws hold ing the operator to the sash and frame. Remove the operator. Awning Casement Note: For egress roto operators, do the following: 1.
- Page 2 Replacing the Roto Operator (Continued): B. Reseal weatherstrip to full width of frame sill. Awning Casement C. Attach the new operator with the original screws. D. Reattach sill frame stop. Additional finishing nails may be needed. DO NOT NAIL THROUGH OP ER A TOR CUT...
