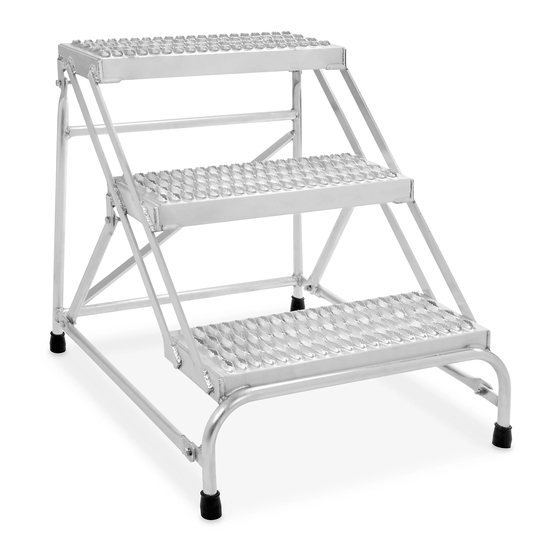

3-step aluminum step stand

Advertisement

π
H-7906
3-STEP ALUMINUM
STEP STAND

TOOLS NEEDED

9/16" (14 mm) Wrench
Steps x 1
WARNING! Please read and save these
instructions. Read carefully before attempting
to assemble, install, operate or maintain
the product described. Protect yourself and
others by observing all safety information.
Failure to comply with instructions could
result in personal injury and/or death. Retain
instructions for future reference. Assembly
and installation of the 3-Step Stand can be
inherently dangerous. Take all precautions
necessary during assembly and installation.
DANGER! Death or serious injury may occur if
improperly assembled or used.
• Assembly can be dangerous.
• Read all instructions thoroughly before
assembling and using.
• Take necessary precautions during the
assembly process.
• Do not fully tighten mounting bolts until
instructed to do so.
PAGE 1 OF 3
1-800-295-5510
uline.com
Safety Glasses
Back Panel x 1

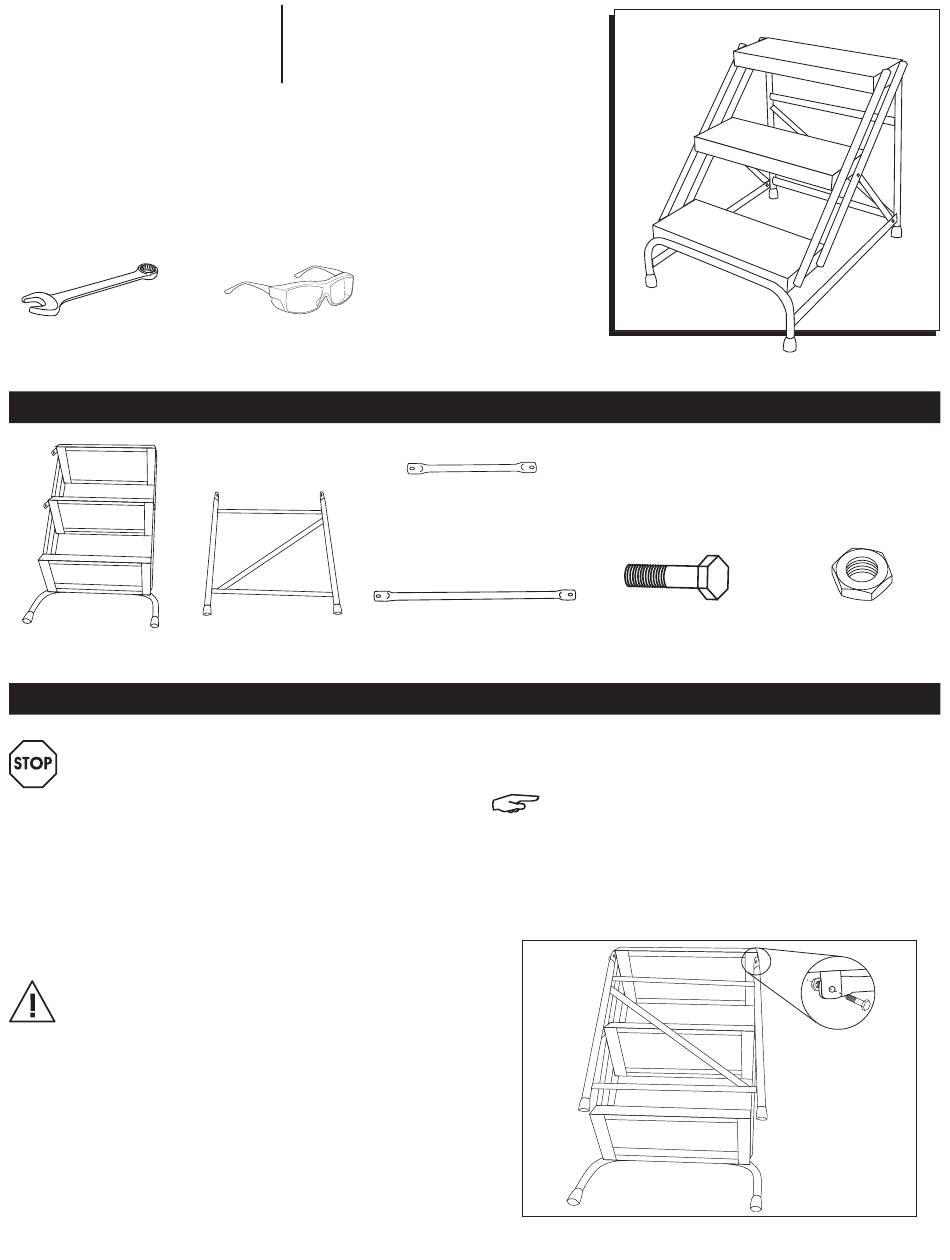

ASSEMBLY INSTRUCTIONS

PARTS

Short Brace x 2
Long Brace x 2
3/8-16 x 1/" Hex Head Cap
1.
Remove the step stand from the packaging and
place on a level surface.
NOTE: If any parts appear damaged in any
way, STOP, do not proceed with assembly and
contact Uline.
2. Attach back panel to top of steps with 3/8-16 x 1/"
hex head cap screws and hex nuts. Do not fully
tighten. (See Figure 1)
Figure 1
Screw x 6 (Included)
3/8-16 Hex Nut x 6
(Included)
0319 IH-7906
