U-Line H-3900 Manual

π

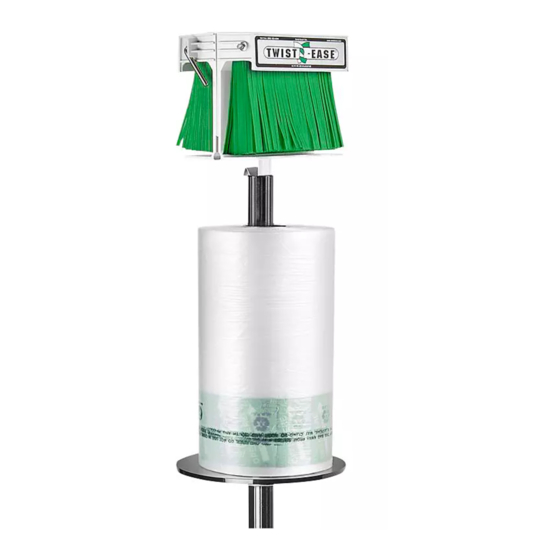

H-3900
PRODUCE BAG STAND
STANDARD
TOOL INCLUDED
Wrench
1. Attach the bottom pole to the base by inserting the
pole through the hole in the base from the bottom
(side with feet). (See Figure 1)
2. Insert black carriage bolt from top to bottom.
(See Figure 2)
3. Put the nut on the bottom side. Put all 4 bolts and
nuts on loosely. (See Figure 3)
PAGE 1 OF 6
1-800-295-5510
uline.com
ASSEMBLY
Figure 1
Figure 2
Figure 3
Pour le français, consulter les pages 5-6.
4. Tighten nuts with wrench provided. (See Figure 4)
5. Slide top pole over bottom pole. Insert set screw
through the hole of the top pole and tighten with
wrench. (See Figure 5)
Para Español, vea páginas 3-4.
Figure 4
Figure 5
0821 IH-3900
