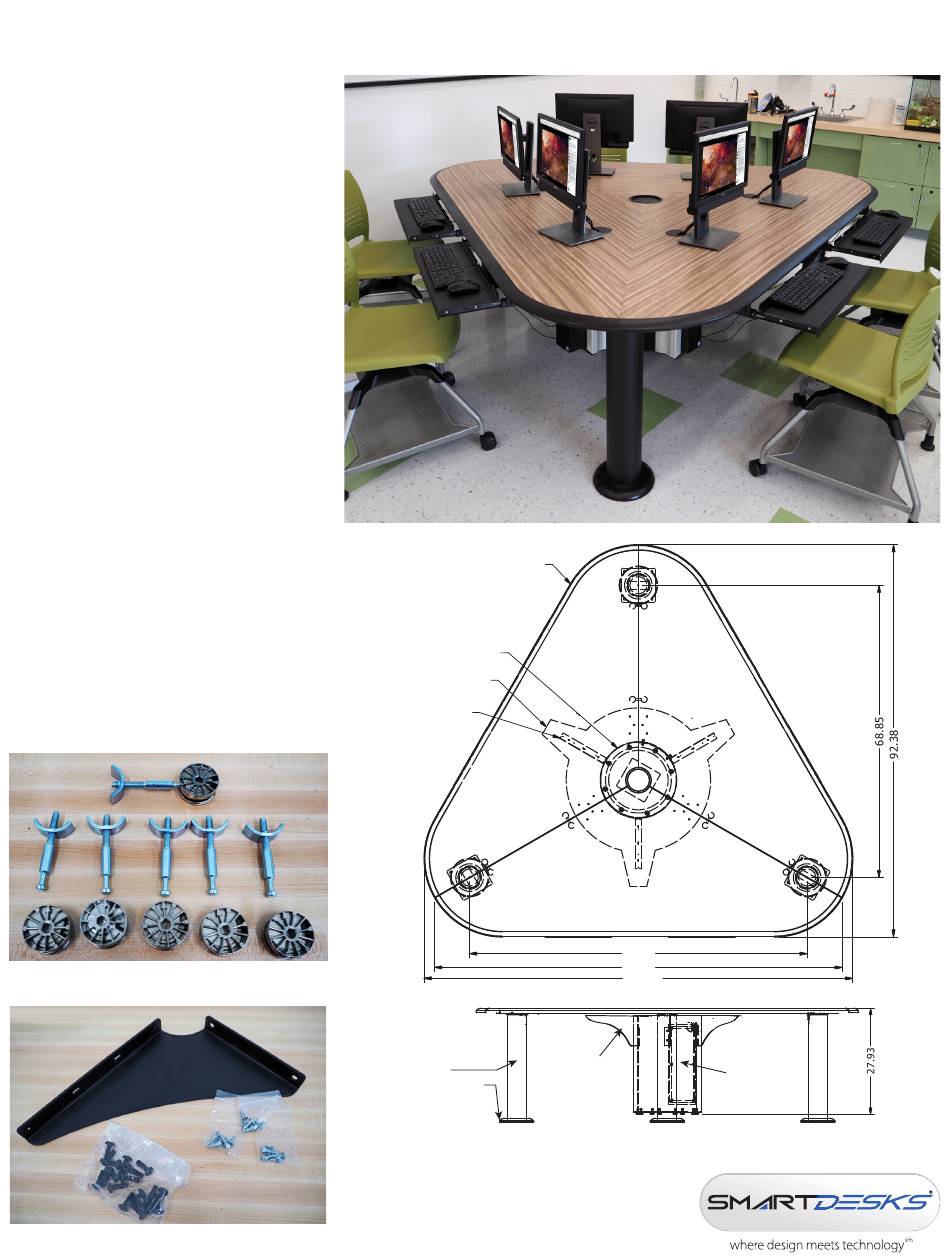

Collab®
SMARTdesks® Collab®
Collaboration Conference Table
This basic installation includes the
Concept™ Round power & data pop-up,
Keyboard trays, CPU holders and pass-
through grommets to support displays
on their own stands.
Your product may have other accesso-
ries, such as flipIT® monitor mounts or
flipIT Laptop Safe®. If this is the case,
factory cutouts will be made for these,
and instructions for installing the flipIT
Kits® will be used, as well. FlipIT Kits®
are installed after the assembly of the
basic table. If FlipIT® keyboard trays
are to be installed, this should be done
at the stage of the standard keyboard
trays shown in these basic instructions.
Familiarize yourself with the parts and
hardware.
TOOLS REQUIRED:
Screw Gun with #2 Phillips Drive and
3/8" hex drive.
JOINING CAM LOCKS
SUPPORT BRACKET
I N S T A L L A T I O N
SUPPORT BRACKET
800 770 7042 | www.smartdesks.com
D O C U M E N T A T I O N
CLB-9636
18" OD CYLINDER BASE
SUB TOP
SUPPORT
BRACKETS
LEGS &
WOODEN PLINTH
79.50
96.00
100.95
18" CYLINDER
BASE WITH
ACCESS HATCH
Advertisement
Table of Contents
Related Manuals for SMARTdesks Collab
Summary of Contents for SMARTdesks Collab
- Page 1 18” OD CYLINDER BASE Screw Gun with #2 Phillips Drive and SUB TOP 3/8” hex drive. SUPPORT BRACKET 79.50 96.00 JOINING CAM LOCKS 100.95 18” CYLINDER SUPPORT BASE WITH BRACKETS LEGS & ACCESS HATCH WOODEN PLINTH 800 770 7042 | www.smartdesks.com SUPPORT BRACKET...
- Page 2 Power & Data locations have been pre-determined, based on approved room layout. This drawing may come from the facilities project manager, architect, or SMARTdesks. Review this layout. Place Sub Top on Base Assembly The Sub Top installs with machine screws around the perimeter...
- Page 3 Attach Sub Top to Base Assembly Align the 8 locations for installing the Sub Top to the perimeter of the Cylinder Base. The locking hex nuts are placed in the counter-sunk holes, then start the ma- chine screws from the under-side. Use a screw gun with #2 Phillips driver to snug the nut into the counter-sunk location.
- Page 4 Use provided wood screws to install the unit using a screw gun and #2 Phillips driver. Prepare the Legs and Assemble Keyboard Trays and CPU Holder Tracks Make a work area with a furniture blanket Protect the flawless finish of the Collab table top. Keep this area free from stray screws and anything abrasive.
- Page 5 Install Cam Locks for Joining Cam Assembly The circular Cam Locks [2 per table section] press into place. Notice the orientation of the arrow which indicates the open setting for the Cam. Later, the second part of the Joining Cam Assembly will be made.
- Page 6 With help, lift the first of 3 table sections into position over base and legs At this time, double-check the position of the Cylinder base, such that it captured the power and data source in the floor. Locat the 3 legs, as nearly you can, to support the table section, then lift the table section into place. Secure Legs to Top Use two 1/4-20 hex head bolts to secure the leg to the...
- Page 7 Raise or lower the leg height adjustments. Install Concept Round Top Put the final touches on the Concept installation. Follow the instructions that come with the kit. Installation Complete 800 770 7042 | www.smartdesks.com...
