SMARTdesks Duet Series Assembly Instructions Manual

Piano Duet Assembly Instructions
Based on
Piano 10 Duet
Duet Series
Piano Assembly Approach

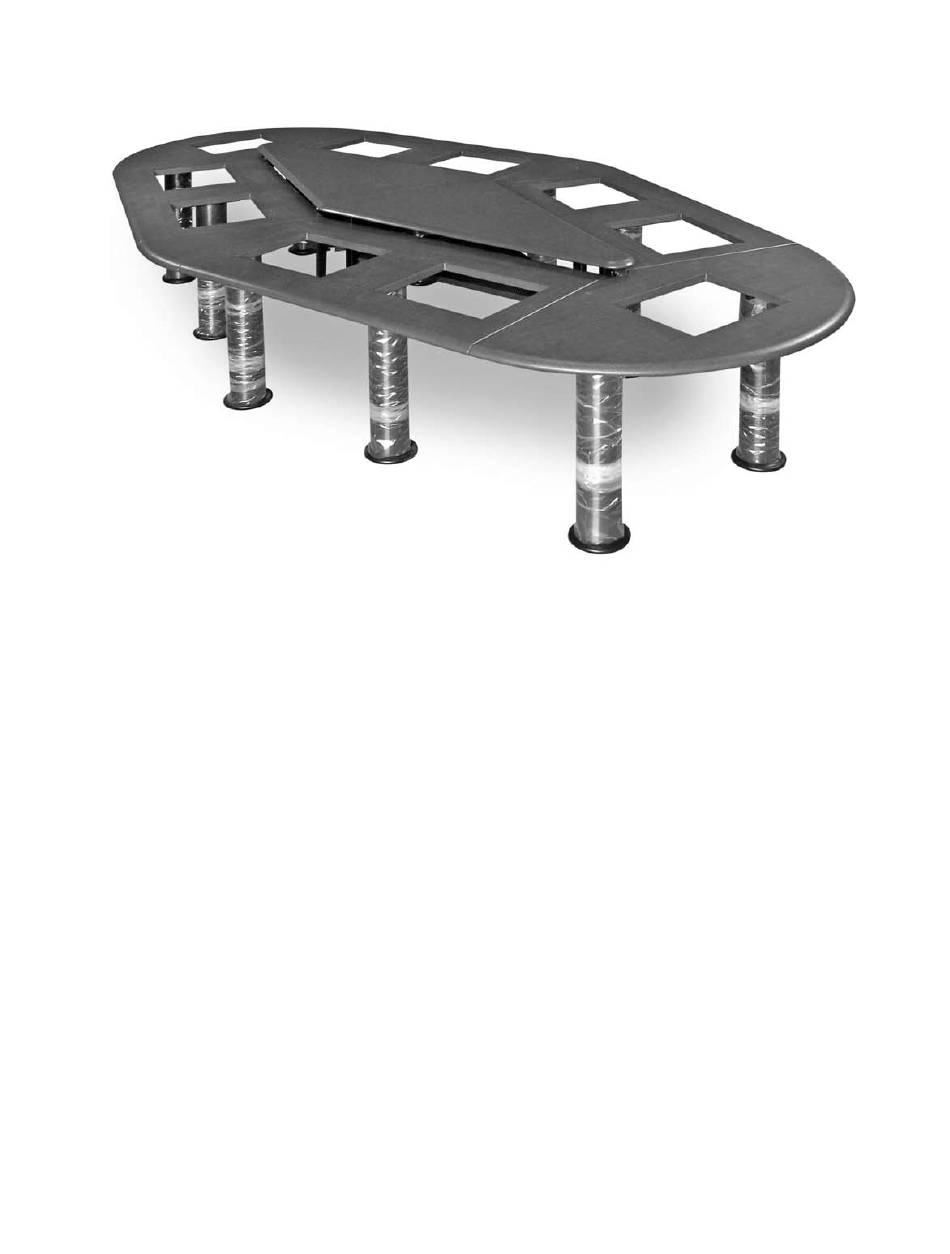

These instructions are illustrated for a Piano 10
Duet Computer Conference Table. Piano Duet is
available in other configurations, but the same
principles apply. Observe that there are curved
end sections, straight sections, and side transition
sections, plus hinged lids and Doric column legs.
If you are assembling a different model, you might
have...
• more straight sections, or
• the straight sections might have 3 flipIT
stations instead of 2, or
• the side transition sections might be a slightly
different shape, or
• the side transition sections might be expanded
to include a flipIT station, or
®
• there may be 4 lids instead of 2.
Given these variations, use these instructions as a
guide for approach.
These instructions are based on a specific custom-
er's requirements. Because each Piano Computer
Conference Table is made to order, there may be
differences in your hardware and part geometries.
© 2007 CBT Supply, Inc. dba SMARTdesks. All rights reserved. flipIT
2 People Required
Subassemblies need to be carefully lifted into position and a
second set of hands is needed to stabilize assembly.
Protect the table surfaces.
Assemble in an area protected by carpet, or lay down pack-
ing blankets to prevent scratching table top surfaces.
Assemble the Piano Table First.
Install flipIT
Piano is assembled. The weight of the flipIT
works against assembling the Piano safely. Consult flipIT
®
Installation Instructions for installing flipIT
ignore the instruction to install flipIT
This assumes a conventional desk, not the Piano.
Plan Ahead
Know where the table will be positioned in the room. The
table is assembled in sections that are small enough to fit
in most elevators, hallways and doorways. Once fully as-
sembled, the table should not be moved. The table should
be assembled in its final position. Assembled sections may
be lifted and moved together carefully. Have one person per
section lift and move assembled table sections. Connecting
brackets should be installed loosely until fully assembled,
then tightened from one end to the other, leveling & fine
tuning seams for each section.
US Patent 7 ,047 ,890. Piano Patent D541084 Other patents pending.
®
FIH or FIK stations AFTER
®
mechanics
®
®
Stations, but
®
before desk assembly.
®
