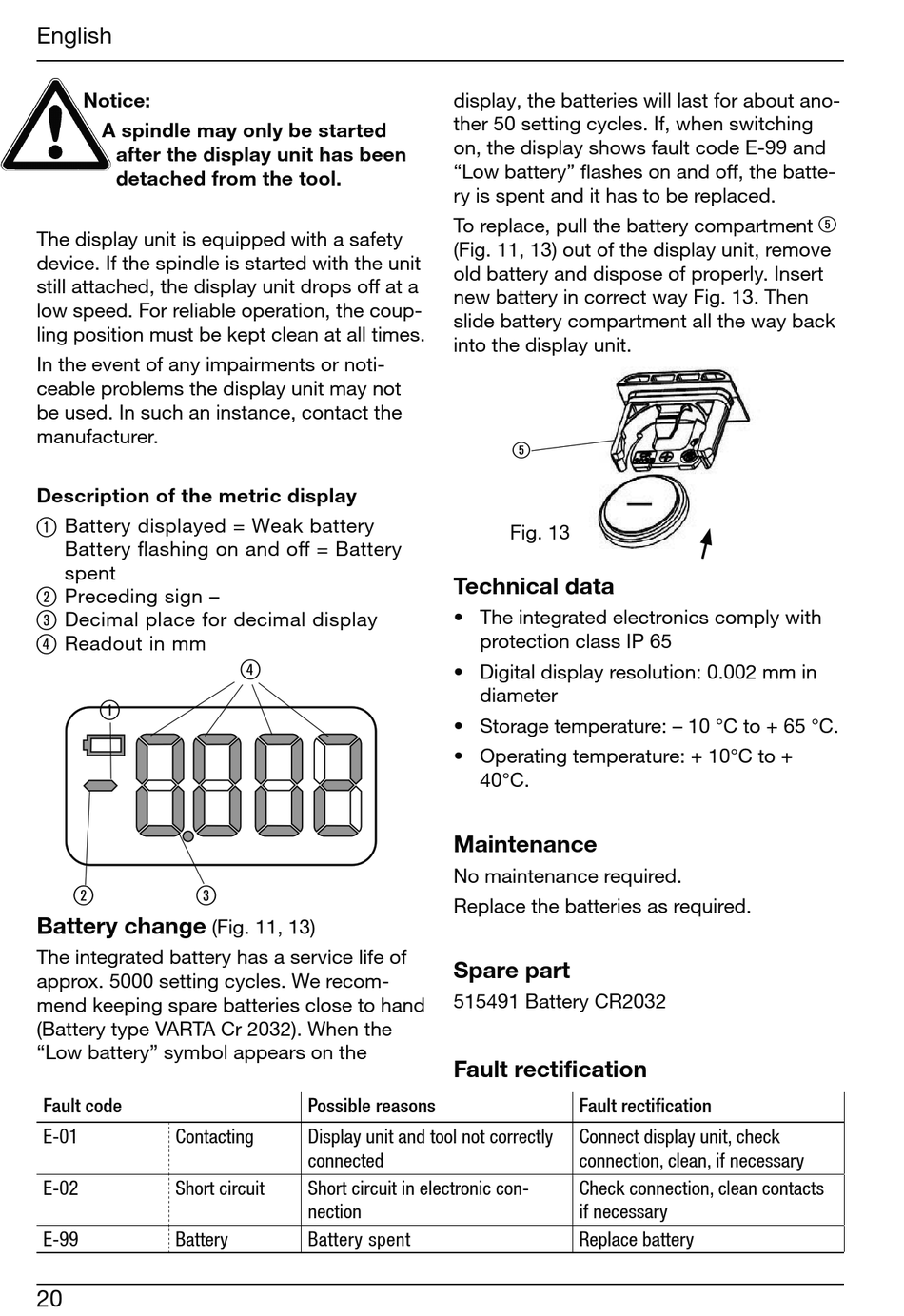

English
Notice:
A spindle may only be started
after the display unit has been
detached from the tool.
The display unit is equipped with a safety
device. If the spindle is started with the unit
still attached, the display unit drops off at a
low speed. For reliable operation, the coup-
ling position must be kept clean at all times.
In the event of any impairments or noti-
ceable problems the display unit may not
be used. In such an instance, contact the
manufacturer.
Description of the metric display
Battery displayed = Weak battery
1
Battery fl ashing on and off = Battery
spent
Preceding sign –
2
Decimal place for decimal display
3
Readout in mm
4
1
3
2

Battery change

The integrated battery has a service life of
approx. 5000 setting cycles. We recom-
mend keeping spare batteries close to hand
(Battery type VARTA Cr 2032). When the
"Low battery" symbol appears on the
Fault code
E-01 Contacting
E-02 Short circuit
E-99 Battery
20
4
(Fig. 11, 13)
Possible reasons
Display unit and tool not correctly
connected
Short circuit in electronic con-
nection
Battery spent
display, the batteries will last for about ano-
ther 50 setting cycles. If, when switching
on, the display shows fault code E-99 and
"Low battery" fl ashes on and off , the batte-
ry is spent and it has to be replaced.
To replace, pull the battery compartment
(Fig. 11, 13) out of the display unit, remove
old battery and dispose of properly. Insert
new battery in correct way Fig. 13. Then
slide battery compartment all the way back
into the display unit. into the display unit.
5
Fig. 13

Technical data

• The integrated electronics comply with
protection class IP 65
• Digital display resolution: 0.002 mm in
diameter
• Storage temperature: – 10 °C to + 65 °C.
• Operating temperature: + 10°C to +
40°C.

Maintenance

No maintenance required.
Replace the batteries as required.
Spare part
515491 Battery CR2032
Fault rectifi cation
Fault rectifi cation
Connect display unit, check
connection, clean, if necessary
Check connection, clean contacts
if necessary
Replace battery
