Step 3:
Assemble the side wall panels

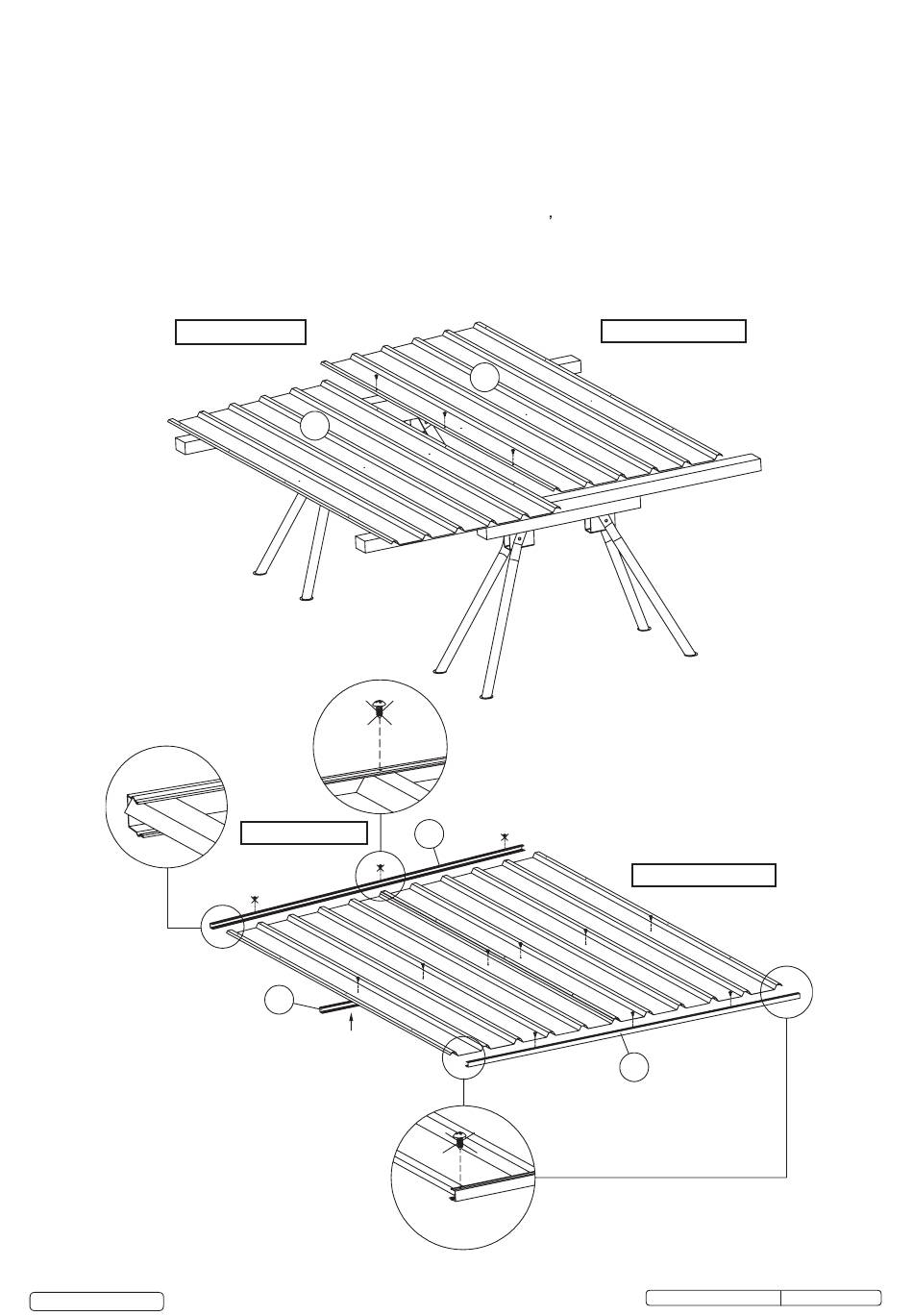

Place part 2D and 7A (sheet) on your worktable and tap or slide on part 25 (top channel) and part 20A (bottom channel).
Position and fix part 31 (mid wall channel) using the self-tapping screws. Fix part 20A (bottom channel) with self-tapping
screws but not part 25 (top channel) at this stage. Make sure that the small lip of the channels is always facing out. This ensures
rainwater cannot build up inside your shed. Repeat the same steps for part 2L and part 7B (the other sidewall). NOTE: All
screws marked with a cross should not be fixed at this stage.
ROOF TOP EDGE
Note: Channel 31
should face down.
© Jack Sealey Limited
2D
ROOF TOP EDGE
31
Original Language Version
7A
25
RIDGES FACING UP
RIDGES FACING UP
20A
GSS1515.V2, GSS1515G.V2 Issue: 2(I) - 13/04/17
