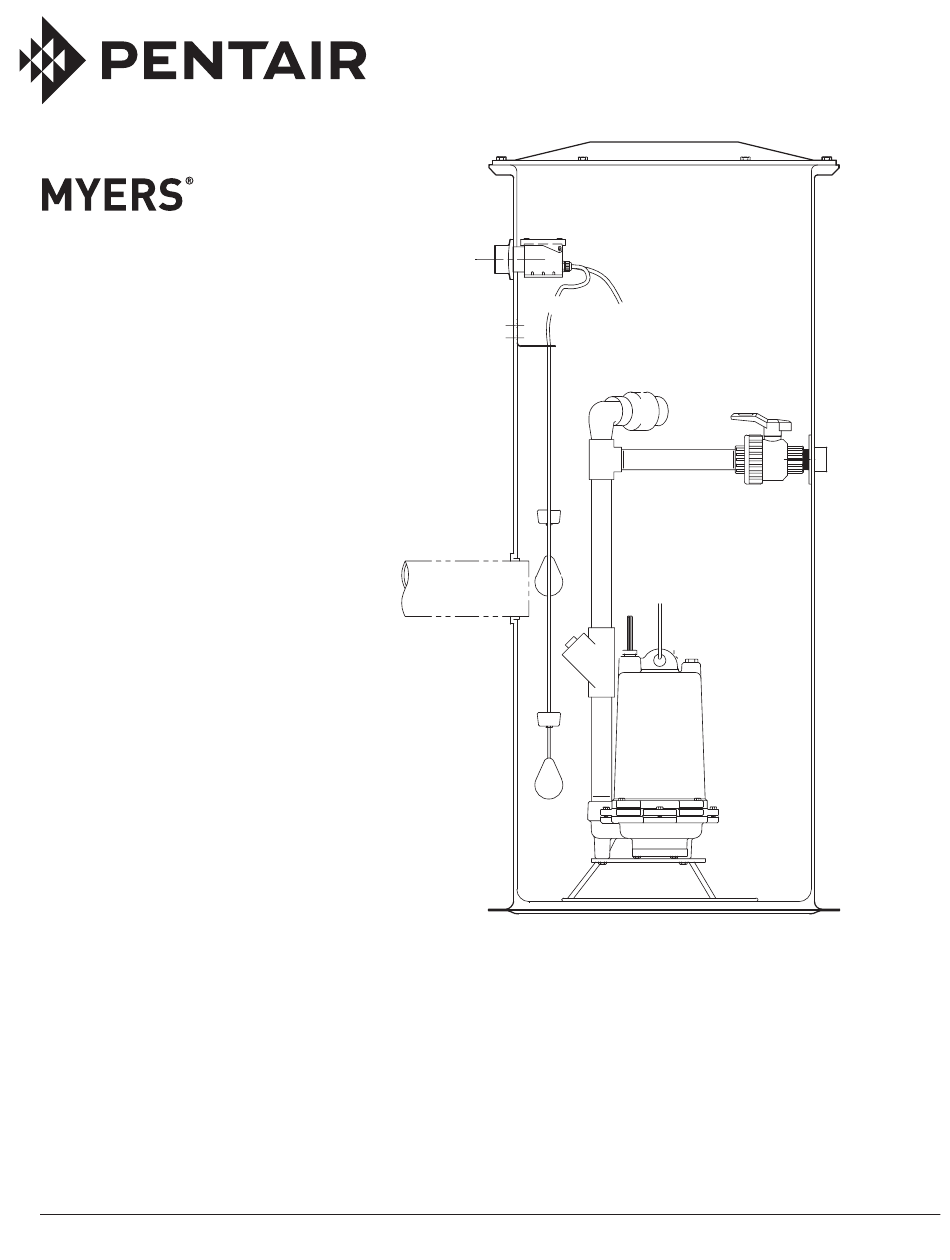

- Page 1 INSTALLATION AND SERVICE MANUAL NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible party who maintains the system. Part # 23833A654 | © 2012 Pentair Pump Group, Inc. | 11/09/12...
- Page 2 GENERAL INFORMATION STRUCTURES AND FOUNDATIONS. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN Thank you for purchasing your Low Pressure Sewer SERIOUS PERSONAL INJURY OR DEATH. Basin System. INSTALLATION SKILL REQUIREMENTS CALIFORNIA PROPOSITION 65 WARNING: The installation of a basin system is a specialized This product and related skill, which requires individuals with the basic accessories contain chemicals known to the...
- Page 3 STEP 3 n CAUTION! IN FREEZING CONDITIONS THE BACKFILL MUST BE DRY AND FREE OF ICE. DO Lower the basin into excavation, position and level NOT USE OTHER BACKFILL MATERIALS. FAILURE properly. Mount basin to base anchor bolts if an TO USE THE RECOMMENDED BED AND BACKFILL antiflotation tie-down kit is used.
- Page 4 INTERNAL BASIN INSTALLATION SYSTEMS WITH JUNCTION BOX INSTRUCTIONS STEP 1 Remove pump from carton. When unpacking unit, Ensure power source is off or dis con nect ed and push check for concealed damage. Claims for damage pump power, seal failure/heat sensor, and float cords must be made at the receiving end through the through cord grips in the junction box and tighten.
- Page 5 PANEL WIRING PUMP OPERATIONS NOTE: Failure to use a Myers approved control panel STEP 1 voids the pump/system warranty. Run clear water into the basin until motor housing is covered. IMPORTANT: Properly connect the panel ground wire to a grounding rod. Improper grounding voids STEP 2 warranty.
- Page 6 TROUBLE CHECKLIST Troubles listed generally pertain to the pump and auxiliary components. Other trouble can occur from a faulty control box. These will be listed with the control box instructions. CONDITION PROBABLE CAUSE Pump runs but does not pump 1. Cutters may be clogged. Amperage higher than nameplate may indicate down the basin with the H-O-A this problem.
- Page 7 FIBERGLASS SIMPLEX PARTS LIST Ref. Description Part Number No.. Req.. Pump, MGPD200-21, Sewage Grinder, 27315D011 230V/60 Hz/1ø, Positive Displacement Pump, MG200-21, Sewage Grinder, 26465D000 230V/60 Hz/1ø, Centrifugal Stand for MGPD200 Positive 14887-003-1 Displacement Pump Stand for MG200 Centrifugal Pump 27078B005 Junction Box, NEMA-6, 2"...
- Page 8 Warranty is effective only if Pentair Myers authorized control panels are used. All seal fail and heat sensing devices must be hooked up, functional and monitored or this warranty will be void. Pentair Myers will cover only the lower seal and labor thereof for all dual seal pumps. under no circumstance will Pentair Myers be responsible for the cost of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight expenses to and from the factory or an authorized Pentair Myers service facility.
