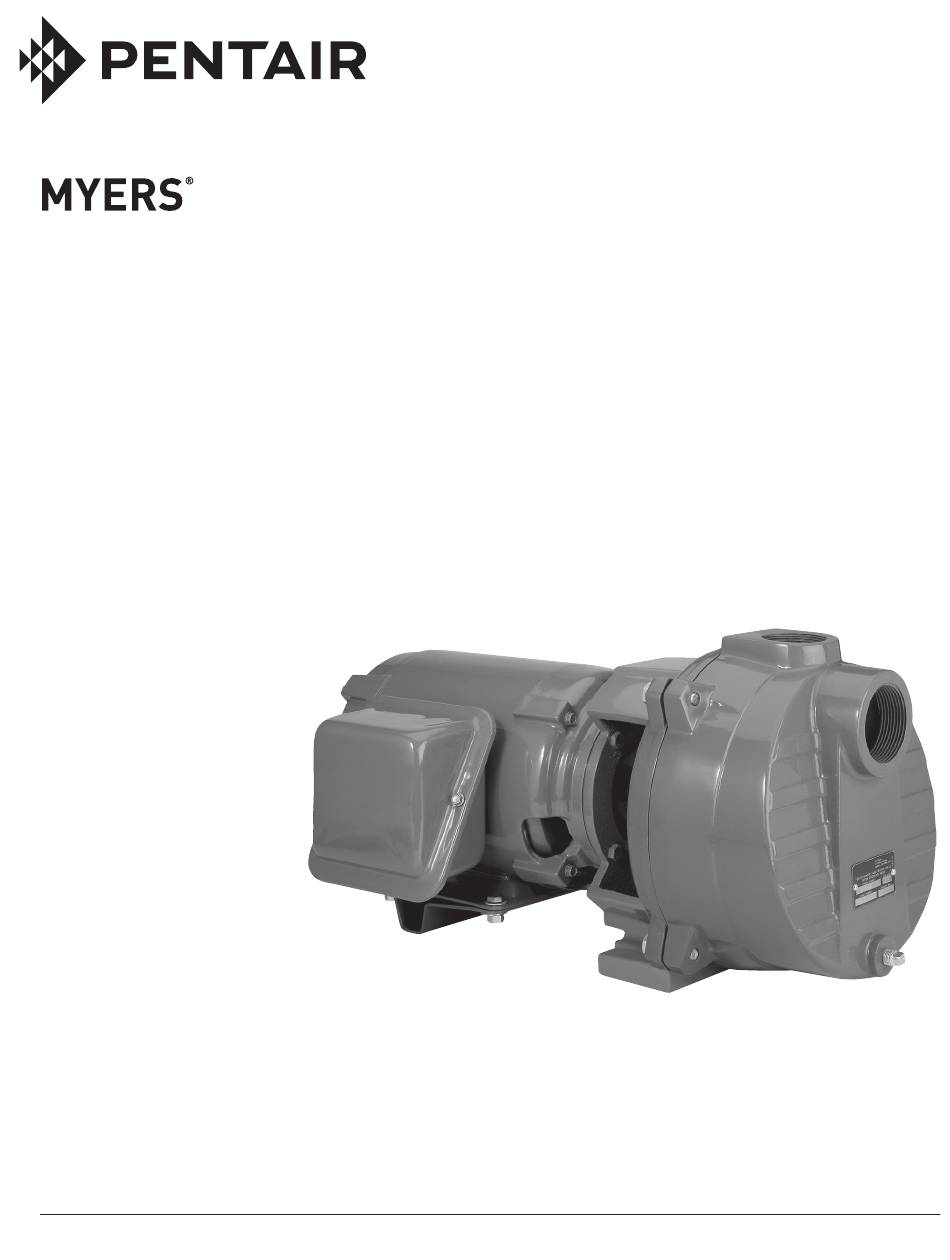

- Page 1 INSTALLATION AND SERVICE MANUAL NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible party who maintains the system. Part # 23833A400 | © 2014 Pentair Ltd. | 03/17/14...
- Page 2 WARNING! IMPORTANT SAFETY INSTRUCTIONS! 6) The voltage and phase of the power supply must READ CAREFULLY BEFORE INSTALLATION match the voltage and phase of the pump. CALIFORNIA PROPOSITION 65 WARNING: 7) Do not use an extension cord. Above ground joints must be made in an approved junction box. This product and related accessories contain chemicals known to the 8) Do not work on this pump or switch while the...
- Page 3 The pump must be securely fastened to a solid Three horsepower and under units are designed to foundation. The pump should always be mounted in automatically re-prime with or without a check or foot a horizontal position on a level foundation. Failure to valve in the suction line.
-
Page 4: Troubleshooting
3. The motor and bracket assembly can now 3. Suction lift too great; check with vacuum be removed from the pump case by pulling gauge. Check or foot valve, if used, may be horizontally away from the case. completely plugged or suction piping may be completely plugged. - Page 5 QP Series Centrifugal Pump Parts List Reference Part No. Description Qty. Reference Part No. Description Qty. Motor, 3/4 hp, 115/230V, 1 ph Diffuser – QP7, QP7-3, QP7-03, QP10, 20934A000 20559D000 QP-7 – Replaces 20587A QP10-3, QP10-03 Motor, 3/4 hp, 200/230/460V, 3 ph Diffuser –...
- Page 6 5 HP QP SERIES Centrifugal Pump Parts List 11 12 Model QP50B - Single Phase QP50B3 - Three Phase Ref. Part No. Description Qty. 26579A000 Motor, 5 hp, 230V, 1Phase – QP50B 26579A001 Motor, 5 hp, 230V, 3 Phase – QP50B3 26579B000 Bracket, Motor Support 19101A007...
- Page 8 (f) if unit is used for purposes other than for what it is designed and manufactured; (g) to any unit that has been repaired or altered by anyone other than Pentair Myers or an authorized Pentair Myers service provider;...
