Integral Audio PHANTOM Installation Manual page 7

A.
7

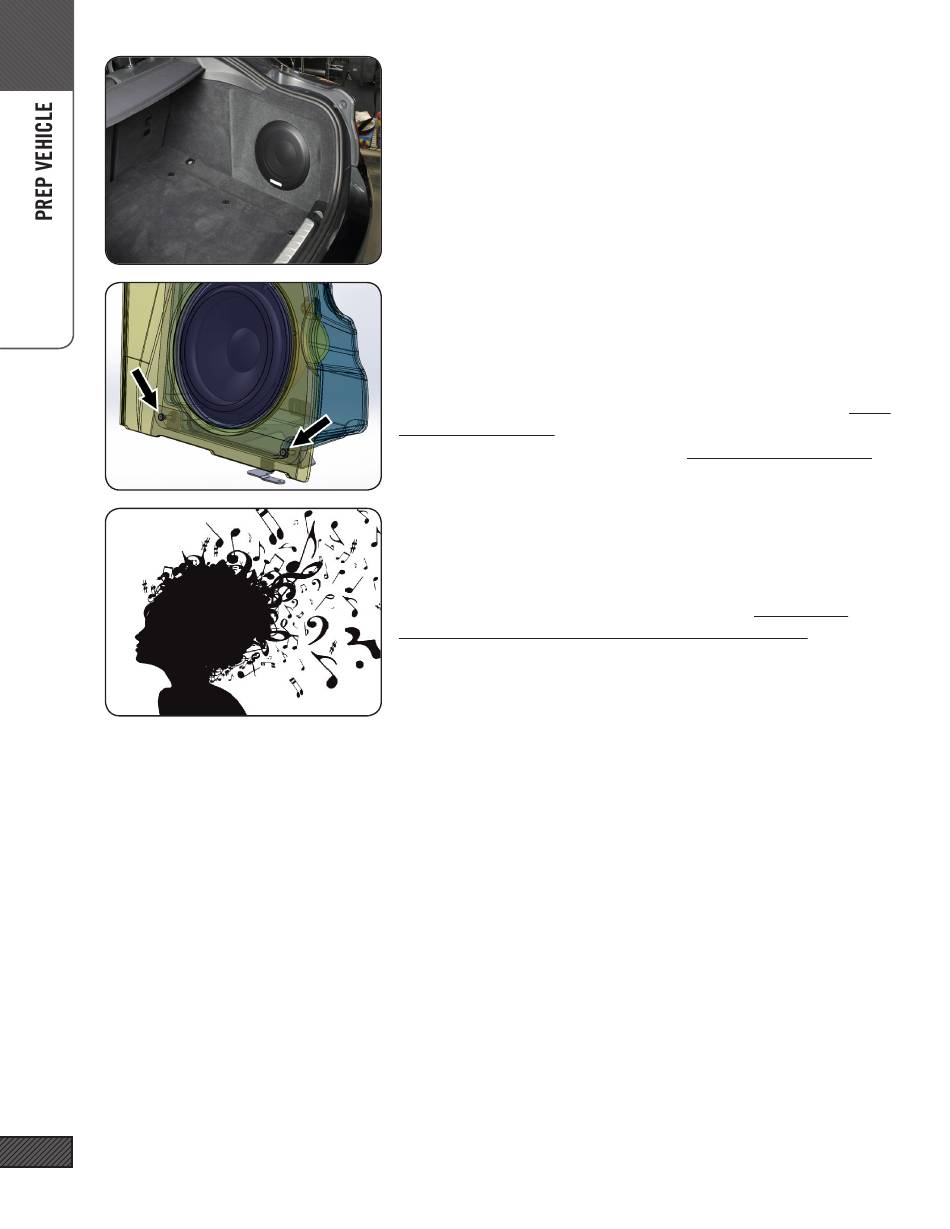

11. INSTALL SUBWOOFER ENCLOSURE
Connect the Neutrik connector.
Install the enclosure by placing the bottom front edge into the slot
in the Floor Side Trim Panel with the top of the enclosure leaning
forward, then rotate/tilt the top of the enclosure into place.
Domed Logo Badge
Affix the
12. FASTEN SUBWOOFER
The CAD image at left has some transparancy so you can see how
the bolts attach thru the baffle and into the bracket. Use the two
#10-24 x 2.5" Socket Head Cap Bolts
the screw holes in the baffle. Press the bolts through the carpet
and into the hole until they make contact with the bracket. Start
the threads by hand!
You only need to snug the bolts down, DO NOT OVERTIGHTEN!
13. ROCK. AND ROLL.
Reinstall remaining trim panels, seats, etc, in the reverse order
they were removed.
That's it! You should be ready to rock and roll. If you aren't
seriously impressed by the sound, something is wrong. Trust us
on this. It should be clean, clear, and balanced. If it isn't, revisit
the steps above or reach out to us for support at 646-926-0011 or
email us at support@integralaudio.com.
to the subwoofer grille.
Black Flat Washers.
and Locate
