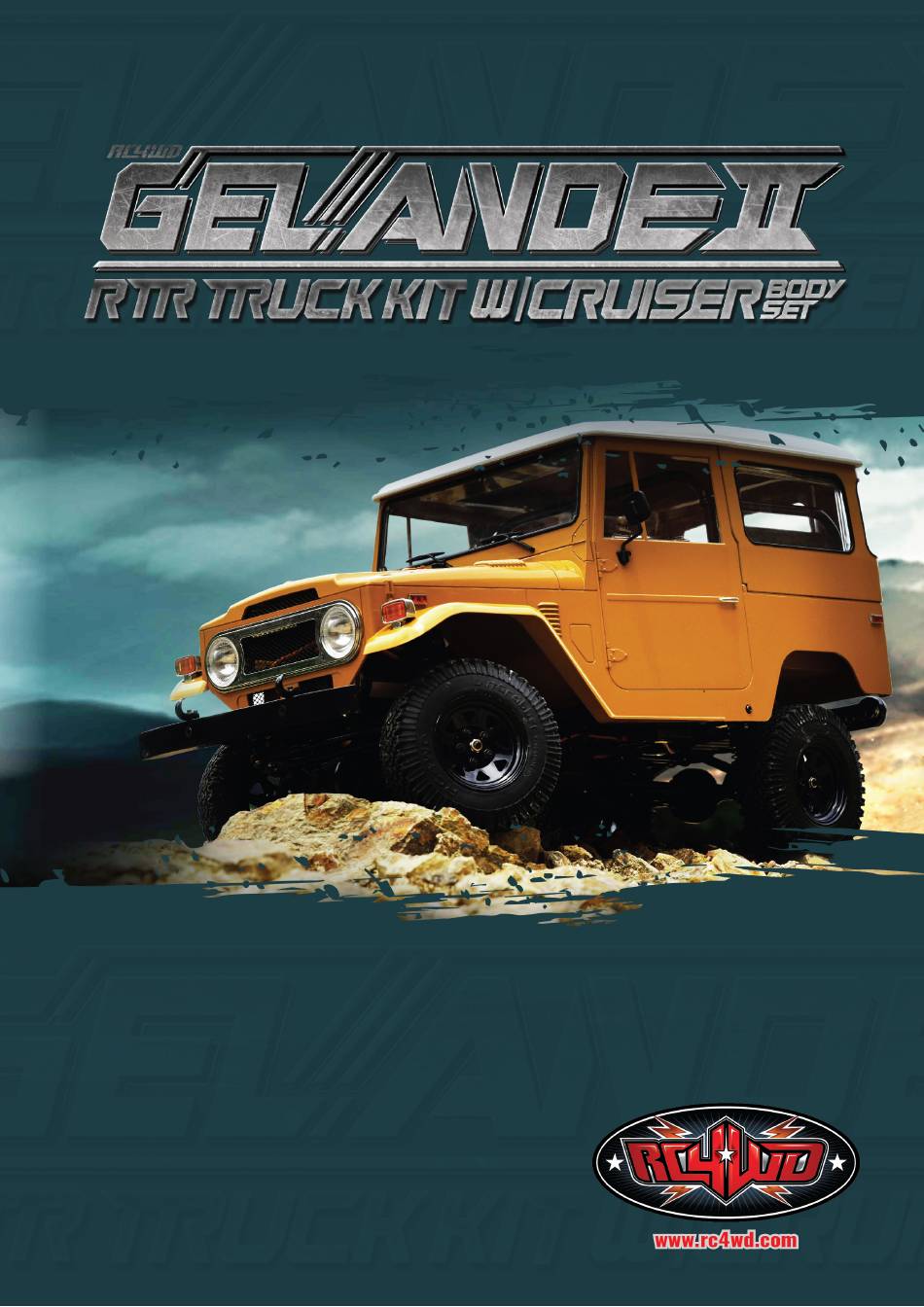

RC4WD Gelande II Manual

Rtr truck kit w/cruiser body set
Hide thumbs Also See for Gelande II:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gelande II and is the answer not in the manual?

Questions and answers

Related Manuals for RC4WD Gelande II

Summary of Contents for RC4WD Gelande II

  • Page 2 Recommended Tools Hex Drivers (1.5mm, 2mm, 2.5mm) Cross Wrench (M2,M3,M4) Side Cutter Plastic Cement/Glue Modeling/Craft Knife (Non-Whitening CA Glue) Thread Lock Long Nose Pliers Tips for Assembly Use good quality hex drivers to avoid stripping screw heads. Use thread lock when putting metal screws into metal parts. Use thread lock sparingly.
  • Page 3 This warranty lasts as long as the original purchaser owns the product.In the event of a defect under this warranty, RC4WD will, at our discretion, replace the product, provided our inspection indicates that an original defect exists.
  • Page 4 Electronic Manual This is a step by step overview of your new Gelande II RTR electrical items and how they connect. 1. ESC with BEC (Z-E0007) 2. ESC connected to the Brushed 45T Crawler Motor (Z-E0004)
  • Page 5 This connects the BEC of the ESC to the radio’s receiver (Z-R0008). This connects to the B/C port. Connecting the BEC to the radio’s receiver Channel (B/C). Connecting the ESC to the radio’s receiver Channel 2 (CH2). Channel 2 is the throttle control of the radio.
  • Page 6 Connect the servo (Z-E0035) to the radio’s receiver Channel 1 (CH1). This controls the trucks steering from the radio. 6. Show the battery connected to the ESC. 4-9 NiMH cells (1.2V per cell) or 3S 11.1V LiPo.
  • Page 7 7. This final step shows all the items as they are connected on the truck. Note: Battery is not included.
  • Page 8 (1) Remove the battery compartment cover (2) Install 4 "AA" batteries and replace compartment cover Please replace batteries when the power indicator blinks or the buzzer beeps RC4WD...
  • Page 9 Brake/Speed Down Forward/Speed Up Binding the Transmitter and Receiver Fail Safe Function Setting Turn on the receiver power. Press the SW switch. The receiver's LED should start Flashing. Receiver and Servo Connection Gas Powered Model Turn on the transmitter 3. When the LED on the receiver becomes solid, the binding process is complete.
  • Page 10 Countersunk Flat Spacers Head Screws Z-S0809 M3x6 Z-S0648 Z-S0600 Z-S0649 M3x8 Z-S0860 M3x10 Z-S0806 Z-S0746 M3x14 Z-S0821 Set Screws Nuts M3x5 Z-S0125 Z-S0308 M3x10 6X Z-S0629 Z-S0650 M3x15 14X Z-S1265 Z-S0804 M3 Drive Shaft Screw Pin 4X Z-S0303 M2.5 20X...
  • Page 11 Button Head Screws Cap Head Screws Z-S0764 Z-S1253 M2.5x6 M1.6x5 Z-S1255 M3x6 Z-S0651 M1.6x8 Z-S0593 Z-S0652 M3x8 M2x12 Z-S0855 Z-S0653 M3x10 M2.5x6 Z-S0829 M3x12 Z-S0654 M2.5x8 Z-S1380 M3x14 Z-S0655 M2.5x12 2X M3x16 Z-S0656 Z-S0739 M3x25 Z-S0895 M3x20...
  • Page 12 Axles Z-S0794 Z-S0795 Z-A0080 Z-A0081...
  • Page 13 Connecting Rods Z-S0399 10X Z-S0807 Z-S0402 4X Z-S0817 2X Z-S0398 4X Z-S0819 Z-S0401 2X Z-S0810 Z-S0805 4X Transmission Z-S0802 Z-U0028 Z-S0430...
  • Page 14 Chassis Z-C0040 Accessories Z-S0792 Z-B0016 4X Z-S1379...
  • Page 15 Accessories Z-S0042 2X Z-S0791 Z-S1381 Z-S1383...
  • Page 16 Accessories Z-S0592 Transfer Case Z-U0024 Z-U0027 Z-S0803 Drive Shafts Z-S0583 Z-S0443 4X Shock hoops Z-S0798 2X Z-S0799...
  • Page 17 Shocks Z-D0039 4X Wheels Z-W0129 Tires Z-T0005 4X...
  • Page 18 Body Z-B0061 Z-B0065...
  • Page 19 Body Z-B0079 Z-B0063...
  • Page 20 Body Z-B0069...
  • Page 21 Body Z-B0067...
  • Page 22 Body Z-B0073...
  • Page 23 Body Z-B0071...
  • Page 24 Body Z-B0075...
  • Page 25 Body Z-B0077...
  • Page 26 Body Z-B0083 Z-B0081...
  • Page 27 Assembly 1 Thread Lock Z-S0648 M3x8 Z-S0794 Assembly 2 Thread Lock Z-S0652 M3x8 Z-A0080 Assembly 3 Thread Lock Z-S0795 Z-S0860 M3x10 Z-A0081...
  • Page 28 Assembly 4 Thread Lock Z-S0795 Z-S0655 M3x14 Assembly 5 Z-S0650 M3x15 Z-S0807 1X Z-S0399 Z-S0817 2X Z-S0402 Z-S0805 4X Z-S0399 Assembly 6 Z-S0308 M3x10 Z-S0398 Z-S0819 2X Z-S0401 Z-S0810 1X...
  • Page 29 Assembly 7 Thread Lock Z-U0028 Z-S0652 M3x8 Z-S0802 Assembly 8 Thread Lock Z-S0649 M3x8 Z-S0802...
  • Page 30 Assembly 9 Thread Lock Z-S0652 M3x8 Z-S0792 Assembly 10 Thread Lock Z-S1379 Z-S0652 M3x8 Z-B0016 Z-S1379 Z-S1379 Assembly 11 Thread Lock Note: This step should be done on both frame rails. Z-S0953 M2x12 Z-S0654 M3x12 Z-C0040 M2x12...
  • Page 31 Note: Inner fenders are not included, Assembly 12 shown for example. Thread Lock Z-C0040 Z-S0953 M2x12 Z-S0654 M3x12 Z-B0068 M2x12 Assembly 13 Thread Lock Z-C0040 Z-S0653 M3x10 Assembly 14 Thread Lock Z-S0653 M3x10 Z-U0027...
  • Page 32 Assembly 15 Thread Lock Z-S0653 M3x10 Assembly 16 Thread Lock Z-S0653 M3x10 Z-S0654 M3x12 Z-S0953 Z-C0040 M2x12 M3x12 M2x12 Assembly 17 Thread Lock Z-S0652 M3x8 Z-S1381...
  • Page 33 Assembly 18 Thread Lock Z-S0653 M3x10 Z-S0798 Z-S0798 Assembly 19 Thread Lock Z-S0653 M3x10 Z-S0799 Z-S0799...
  • Page 34 Assembly 20 Thread Lock Z-S0791 Z-S0652 M3x8 Z-S0652 M3x8 Assembly 21 Thread Lock Z-S0653 M3x10 Z-S0794...
  • Page 35 Assembly 22 Thread Lock Z-S0804 M3 Drive Shaft Screw Pin Z-S0803 Assembly 23 Z-U0024...
  • Page 36 Assembly 24 Thread Lock Z-S0651 M3x6 Z-S0653 M3x10 Assembly 25 Thread Lock Z-S0804 M3 Drive Shaft Screw Pin...
  • Page 37 Assembly 26 Z-S1253 Z-B0077 - 11&12 M1.6x5 Z-B0077 - 9&10 Z-B0075 - 3 Z-B0075 - 2 Z-B0075 - 4&5 Z-S1381 Z-B0075 - 12&13 Z-B0075 - 15 Z-B0075 - 14 Assembly 27 Thread Lock Z-S0746 M3x14...
  • Page 38 Assembly 28 Thread Lock Z-S1255 M1.6x8 Z-S0042 Z-S1381 Assembly 29 Thread Lock Z-S0746 M3x14...
  • Page 39 Z-S0739 Assembly 30 M3x25 Z-S0629 M3 Nut 65.3mm Links Assembly 31 Thread Lock Z-S0895 M3x20 73mm Links...
  • Page 40 Assembly 32 Thread Lock Z-S0653 M3x10 Z-S0655 M3x14 M3x10 Z-S0656 Assembly 33 M3x16 Z-S0629 M3 Nut Z-S0806 3mm Spacer 3mm Spacer...
  • Page 41 Assembly 34 Thread Lock Z-S0654 M3x12 59mm Link Assembly 35 Thread Lock Z-S0655 M3x14 73mm Links...
  • Page 42 Assembly 36 Thread Lock Z-S0654 M3x12 Z-D0039 2mm Spacer Assembly 37 Thread Lock Z-S0654 M3x12 Z-S0809 1mm Spacer 1mm Spacer...
  • Page 43 Assembly 38 Thread Lock Z-S0653 M3x10 Z-S0655 M3x14 M3x10 Assembly 39 Thread Lock Z-S0656 M3x16 Z-S0629 M3 Nut Z-S0806 3mm Spacer 3mm Spacer...
  • Page 44 Assembly 40 Thread Lock Z-S0654 M3x12 70mm Link Assembly 41 Fit drive shaft rings Z-S0443 Z-S0583...
  • Page 45 Assembly 42 Fit both front and rear drive shafts Thread Lock Z-S0804 M3 Drive Shaft Screw Pin Assembly 43 Thread Lock Z-S0125 M3x5...
  • Page 46 Assembly 44 Thread Lock Z-S0649 M3x8 Assembly 45 Thread Lock Z-S0592 Z-S0860 M3x10...
  • Page 47 Z-S0651 Assembly 46 M3x6 Z-S0592 Assembly 47 Thread Lock Z-S0653 M3x10 70mm Link...
  • Page 48 Assembly 48 Thread Lock Z-S0651 M3x6 Assembly 49 Thread Lock Z-S0656 M3x16 Z-S0821 5mm Spacer 5mm Spacer...
  • Page 49 Assembly 50 1. Insert the ring inside the tire.
  • Page 50 Assembly 51 2. Place the rear wheel half way through the ring. 3. Ensure that the tire bead is evenly captured in the wheel rim. The tire may need to be pulled out a little to make it sit properly.
  • Page 51 Assembly 52 4.Place the front wheel half way through the ring. Ensure that the wheel design is aligned with both the front and rear. 5. Ensure that the tire bead is evenly captured in the wheel rim. The tire may need to be pulled out a little to make it sit properly.
  • Page 52 Z-S1380 Assembly 53 6. Place the wheel hub on the rear of the wheel and M2.5x12 insert a long bolt (M2.5x12mm) through the wheel. Z-S0303 M2.5 Nut 7. Ensure that the tire bead is evenly captured in the wheel rim. The tire may need to be pulled out a little to make it sit properly.
  • Page 53 Z-S1380 Assembly 54 M2.5x12 8. Place the wheel hub on the rear of the wheel and insert a long bolt (M2.5x12mm) through the wheel. Z-S0303 M2.5 Nut Z-S0829 Assembly 55 M2.5x8 9. Fit all of the remaining bolts and nuts. Swap the long bolts that were used to fit with the shorter bolts.
  • Page 54 Assembly 56 2mm Pin Note: Fit all four wheels. Assembly 57 Z-S1265 M4 Nut...
  • Page 55 Assembly 58 Z-S1383 Z-S1383 Assembly 59 Z-S0125 M3x5 Z-S0430...
  • Page 56 Z-S0651 Assembly 60 M3x6 Note: Battery is not included. Assembly 61...
  • Page 57 Assembly 62 Note: Use Heavy Duty Nylon for Strap Lock to secure the battery. Assembly 63 Plastic Z-B0075 - 1 Cement/Glue Z-B0077 - 1&2...
  • Page 58 Assembly 64 Z-S1253 M1.6x5 Z-B0075 - 16&17 Assembly 65 Z-B0073 Z-B0081...
  • Page 59 Assembly 66 Z-S0651 M3x6 Z-B0061 Assembly 67 Z-B0075 - 21&22 Z-B0077 - 3&4...
  • Page 60 Assembly 68 Z-B0083 M5x5 Assembly 69 Plastic Z-B0075 - 8, 9, 10 &11 Cement/Glue Z-B0077 - 5, 6, 7 &8...
  • Page 61 Assembly 70 Z-S1253 M1.6x5 Z-B0075 - 19, 20, 23 &24 Assembly 71 Plastic Z-B0071 - 4&5 Cement/Glue...
  • Page 62 Assembly 72 Plastic Cement/Glue Z-B0071 - 15&16 Z-B0071 - 2&3 Assembly 73 Plastic Cement/Glue Z-B0071 - 6&7...
  • Page 63 Assembly 74 Plastic Cement/Glue Z-B0075 - 6&7 Assembly 75 Plastic Z-B0067 - 2 Cement/Glue Z-B0077 - 13...
  • Page 64 Assembly 76 Plastic Cement/Glue Z-B0071 - 12&13 Z-S0651 Assembly 77 M2.5x6...
  • Page 65 Z-S0653 Assembly 78 M3x10 Z-B0065 Z-B0079 Assembly 79 Plastic Cement/Glue Z-B0075 - 18...
  • Page 66 Z-S0653 Assembly 80 M3x10 Assembly 81 Plastic Z-B0063 Cement/Glue Z-B0071 - 14 Z-B0071 - 10 Z-B0071 - 11...
  • Page 67 Assembly 82 Z-S0764 M2.5x6 Z-B0067 - 1&4 Assembly 83 Plastic Cement/Glue Z-B0071 - 8 Z-B0071 - 11...
  • Page 68 Assembly 84 Plastic Cement/Glue Z-B0067 - 3 Assembly 85 Z-S0653 M3x10...
  • Page 69 Assembly 86 Z-B0069 - 8 Plastic Z-B0069 - 10 Cement/Glue Assembly 87 Z-B0069 - 1 Z-B0069 - 3 Z-B0069 - 2 Z-B0069 - 4...
  • Page 70 Assembly 88 Plastic Cement/Glue Assembly 89 Z-B0069 - 7&9 Plastic Cement/Glue...
  • Page 71 Assembly 90 Plastic Z-B0071 - 1 Cement/Glue Assembly 91 Z-B0061 - 1 Plastic Cement/Glue...
  • Page 72 Assembly 92 Z-B0073 - 1&2 Z-B0069 - 5&6 Assembly 93 Plastic Cement/Glue...
  • Page 73 Z-S0654 Assembly 94 M3x12 Z-B0073 -3&4 Z-B0073 - 5 Z-S0653 Assembly 95 M3x10...
  • Page 74 Z-S0652 Assembly 96 M3x8 Z-S0593 Assembly 97 M2.5x6...
  • Page 75 M3 Offset Short Plastic Rod End Z-U0024 Hammer Transfer Case Z-E0004 RC4WD 540 Crawler Brushed Motor Z-E0007 Outcry Crawler Single Motor Electronic Speed Controller (ESC) Z-E0035 Twister High Torque Metal Gear Digital Servo Z-R0009 RC4WD XR3 3-Channel 2.4Ghz Transmission & Receiver Radio...
  • Page 76 VVV-C0128 Complete Metal Emblems Set for RC4WD Cruiser Body VVV-C0126 Front Metal Emblems for RC4WD Cruiser Body VVV-C0129 Metal Side Diamond (A) Plates for RC4WD Cruiser Body (Black) VVV-C0134 Metal Side Diamond (A) Plates for RC4WD Cruiser Body (Silver) VVV-C0173 Metal Tire Holder RC4WD G2 Cruiser/FJ40...
