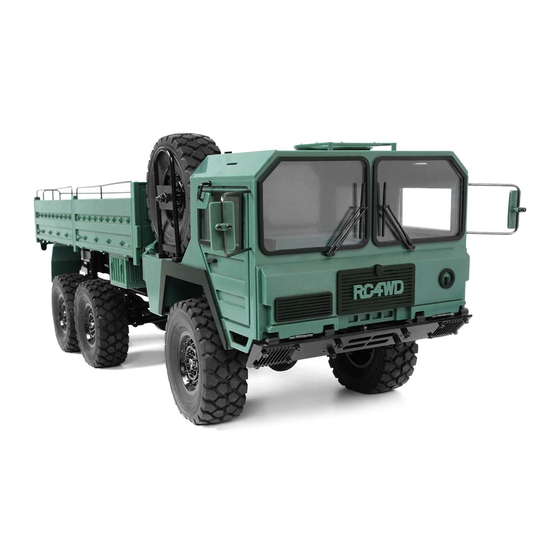

1/14 scale 6x6 truck
Hide thumbs Also See for BEAST II:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BEAST II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RC4WD BEAST II

Summary of Contents for RC4WD BEAST II

  • Page 2 Recommended Tools Modeling/Craft Knife Hex Driver (1.25mm) Hex Drivers (1.5mm, 2.0mm, 2.5mm) Side Cutters Styrene Glue Thread Lock Cross Wrench (M4) Cross Head Screwdriver (Small) Long Nose Pliers Tips for Assembly Use Acrylic Lacquer or Enamel if you'd like to paint the body parts. Test fit parts before applying glue and use glue sparingly.
  • Page 3 RC4WD will, at our discretion, replace the product, provided our inspection indicates that an original defect exists. RC4WD reserves the right to replace any product which is no longer available with a product of comparable value and function. If RC4WD determines the repair is not covered under warranty guidelines, we will contact you to discuss your options.
  • Page 4 RTR Step 1 Z-S1227 Z-S1227 Z-S1527-2 M2.5X8 Button Head Z-S1527-2 RTR Step 2 Z-S1529-3 Z-S1518 Z-S1518 M2X6 Flat Head...
  • Page 5 RTR Step 3 Z-S0652 Z-B0091-8 Z-S0629 Z-S0629 M3 Nut Z-S0652 M3X8 Button Head RTR Step 4...
  • Page 6 RTR Step 5 Z-B0017 Z-B0017 RTR Step 6 Move the lever to open/close the cab.
  • Page 7 RTR Step 7 Z-S0927 Z-S0927 Z-S0927 M2X4 Cap Head Electronic Manual This is a step by step overview of your new Beast II RTR electrical items and how they connect. 1. ESC with BEC (Z-E0007)
  • Page 8 2. ESC connected to the Brushed 55T Crawler Motor (Z-E0003)
  • Page 9 viii...
  • Page 10 6. 4-9 NiCd/NiMH cells (1.2V per cell) or 3S 11.1V LiPo. Note: Battery is not included.
  • Page 11 (1) Remove the battery compartment cover (2) Install 4 "AA" batteries and replace compartment cover Turn the switch up, high speed Stay at middle, normal speed. RC4WD...
  • Page 12 Brake/Speed Down Forward/Speed Up Binding the Transmitter and Receiver Gas Powered Model 3.When the LED on the receiver becomes solid, the binding process is complete. Electrical Powered Model...
  • Page 13 6x6 Body Z-B0099-1 Z-B0099...
  • Page 14 xiii 6x6 Body Z-B0105...
  • Page 15 6x6 Body Z-B0101...
  • Page 16 6x6 Body...
  • Page 17 6x6 Body...
  • Page 18 xvii 6x6 Body...
  • Page 19 xviii 6x6 Body Z-B0091-8...
  • Page 20 6x6 Body Z-B0089...
  • Page 21 6x6 Body...
  • Page 22 6x6 Body Z-B0093...
  • Page 23 xxii 6x6 Body Z-B0085 6x6 Body Z-B0107-3...
  • Page 24 xxiii 6x6 Body Z-S1519-1 Z-S1519-2 Z-S1519-3 Z-S1519-4 Z-S1519-5 6x6 Body Z-S1523-1 Z-S1523-2 Z-S1523-5 Z-S1523-4 Z-S1523-3 6x6 Body Z-S1525-1 Z-S1525-2 Z-S1525-3 Z-S1525-4 6x6 Body Z-S1521-6 Z-S1521-7 6x6 Body Z-S1531-1 Z-S1531-2...
  • Page 25 xxiv 6x6 Body Z-S1521-1 Z-S1521-2 Z-S1521-3 Z-S1521-5 Z-S1521-4 6x6 Body Z-S1527-2 Z-S1527-1...

  • Page 26: Z-S1527

    6x6 Body Z-S1529-3 Z-S1529-1 Z-S1529-2 Z-S1529-4 Tire Z-T0075 Z-W0119-1 Z-W0119-2 Z-W0119-3 Accessories Z-S1546-6 Z-S0430 Z-B0017 Z-S0277 Z-S0238 Z-S0599 Z-C0050-1 Transmission Z-U0029 Z-U0034...
  • Page 27 xxvi Driveshafts Z-S0443 Z-S0583 Z-S1548 Girde Z-C0046-1 Z-C0046-2 The Frame Z-S1534 Z-S1542 Z-S1536 Z-C0046-6 Z-C0046-5 Z-C0046-7 Z-C0050-2 Z-C0050-3 Z-S1532 Z-C0046-3...
  • Page 28 xxvii The Frame Z-S1528-1 Z-S1530 Z-C0048 Z-S1538 Z-S1540-1 Z-C0046-4 Z-S1546-5 Z-S1546-1 Z-S1528-2 Z-S1546-3 Z-S1546-2 Z-S1546-4 Connecting Rods Z-S0807/(59mm) Z-S0399 Z-S1084/(52mm) Z-S0884/(50mm) Z-S0402...
  • Page 29 xxviii Connecting Rods Z-S1550/(71.5mm) Z-S0401 Z-S1552/(41mm) Z-S0398 Z-S0819/(70mm) Z-S0810/(104.5mm) Axle Z-S1540-3 Z-A0080 Z-S1540-4 Z-A0010 Z-S0795-2 Z-A0081 Z-S1544-1 Z-S0795-1 Z-S1540-2 Z-S1544-2 Shock Z-D0039...

  • Page 30: Z-S1529

    xxix All of the hardware should be taken from Hardware Bags A/B/C/D. Z-S1227 M2.5X8 Button Head Z-S0745 Z-S1518 M2X6 Flat Head M3X4 Button Head Z-S0960 M3X6 Button Head Z-S0648 M3X6 Flat Head Z-S0652 M3X8 Button Head Z-S0649 M3X8 Flat Head Z-S0653 M3X10 Button Head Z-S1367...
  • Page 31 Assembly 1 Z-B0103-6 ① Z-B0103-1 Z-B0099-1 ② Z-B0089-3 Assembly 2 Note: If painting kit parts, please do Z-S1531-1 not tear off paper covering windshield. Z-B0105-1...
  • Page 32 Assembly 3 Z-B0091-1 Z-B0105-1 Assembly 4 Z-B0105-1...
  • Page 33 Assembly 5 Z-B0101-2 Z-B0099-5 Z-B0105-4 Z-B0105-5 Assembly 6 Z-B0087-1 Z-B0091-4...

  • Page 34: Z-S1523

    Assembly 7 Z-S0629 Z-S1529-4 Z-S0653 Z-S0629 Z-S1529-1 Z-B0087-8 M3 Nut Z-S1529-4 M3X7.2 Bushing Z-S0653 M3X10 Button Head Z-S1529-4 & Z-S1529-1 can be found in Bag 17. Assembly 8 Z-S1529-2 can be found in Bag 17. Z-S0654 Z-S0629 Z-S1524 Z-S0745 Z-S0629 Z-S1524 M3.1X3 Spacer Z-S0745...
  • Page 35 Assembly 9 Z-B0089-2 Z-B0099-2 Z-B0089-2 Assembly 10 Z-B0087-9 Z-B0087-7 Z-B0087-2...
  • Page 36 Assembly 11 Z-B0093-2 Z-B0101-3 Assembly 12 Z-B0093-1...
  • Page 37 Assembly 13 Z-B0097-3 Z-B0093-3 ① ② Z-B0097-4 Assembly 14 Z-B0085-7 Z-B0085-10...
  • Page 38 Assembly 15 Z-B0101-1 Assembly 16 Note: Z-B0099-4 does not require glue. Z-B0097-2 Z-B0099-4 Z-B0095-2...

  • Page 39: Z-S1521

    Assembly 17 Z-S1519-2 & Z-S1519-3 can be found in Bag 14. ② ① Z-S1522 Z-B0085-9 Z-B0085-6 Z-B0095-3 Z-S1522 M2.5X2 Set Screw Z-S1519-3 ③ Z-S1519-2 Assembly 18 Z-B0105-6 Z-S1519-1 Z-S1519-1 can be found in Bag 14.
  • Page 40 Assembly 19 Z-S1519-5 Z-S1519-5 can be found in Bag 14. Z-S1519-5 Assembly 20 Z-S1519-4 Z-S1519-4 can be found in Bag 14. Z-S1519- 4...
  • Page 41 Assembly 21 Assembly 22 Z-B0103-3 Z-B0103-2...
  • Page 42 Assembly 23 Z-B0105-2 Z-B0105-7 Z-B0105-3 Z-B0103-4 Z-B0103-5 Z-S1529-3 Z-S1518 Z-S1518 Z-B0097-5 M2X6 Flat Head Z-S1529-3 Z-S1518 Z-S1529-3 can be found in Bag 17. Assembly 24...
  • Page 43 Assembly 25 Z-B0097-6 Z-B0107-1 Z-B0107-2 Z-B0091-7 Z-B0091-3 Assembly 26 Z-B0091-3 Z-B0091-7...
  • Page 44 Assembly 27 Z-B0091-2 Z-S1531-2 Assembly 28 Z-S1531-2 Z-B0091-2...
  • Page 45 Assembly 29 Z-S1525-2 Z-B0097-7 Z-S1525-2 Z-B0097-7 Z-S1520 Z-S1520 Z-S1525-2 can be found in Bag 14. M1.4X3 Flat Head Assembly 30 Z-B0091-6 Z-S1525-1 Z-B0091-6 Z-B0093-4 Z-S1525-1 Z-B0093-4 Z-S0927 Z-S0927 M2X4 Cap Head...
  • Page 46 Assembly 31 Assembly 32 Z-W0119-1 Z-W0119-2 Z-T0075 Z-W0119-3 Z-S1533 Z-S1533 M1.6X12 Screw Z-S1230 Z-S1230 Note: Assemble six tires. M1.6 Nut...
  • Page 47 Assembly 33 Z-S1514 Z-S1514 M4X25 Button Head Z-S1527-1 Z-S0620 Z-S0620 M4 Nut Note: Spare Wheel and Tire are not included in KIT Version. Assembly 34 Z-S1227 Z-S1227 Z-S1527-2 M2.5X8 Button Head Z-S1527-2 can be found in Bag 17. Z-S1527-2...
  • Page 48 Assembly 35 Z-S1521-4 Z-B0097-1 Z-S1521-5 Z-B0095-1 Z-S1521-3 Assembly 36 Z-B0099-3 Z-B0089-5 Z-B0085-4 Z-B0085-4 Note: Install in the inner side of the carriage.
  • Page 49 Assembly 37 Z-B0085-8 Z-S1521-6 Z-B0085-8 Z-S1521-7 Assembly 38 Z-B0089-1 Z-S0649 Z-S1521-2 Z-S1521-1 Z-S0649 M3X8 Flat Head...
  • Page 50 Assembly 39 Z-S1546-6 Z-S1057 Z-S1057 M3X12 Set Screw Z-S1546-6 Z-S1546-6 can be found in Bag 18. Assembly 40 Z-B0093-7 Z-S0927 Z-S1523-3 Z-S1523-4 Z-S1523-5 Z-S1523-5 Z-B0093-7 Z-B0107-3 Z-B0107-3 Z-S1523-1 B0107-3 S1523-2 Z-S0927 M2X4 Cap Head Z-S1523-1, Z-S1523-2, Z-S1523-3 & Z-S1523-4 can be found in Bag 16.
  • Page 51 Assembly 41 Assembly 42 Z-B0093-5 Note: Install in the inner side of the carriage. Z-B0085-4...
  • Page 52 Assembly 43 Z-B0089-4 Z-B0089-6 Z-B0087-4 Z-B0085-5 Z-B0087-6 Z-B0087-3 Z-B0085-5 Z-B0085-5 Z-B0087-5 Z-B0089-4 Z-B0085-2 Assembly 44 Z-S0652 Z-B0091-8 Z-S0629 Z-S0629 M3 Nut Z-S0652 M3X8 Button Head...
  • Page 53 Assembly 45 Z-B0085-3 Z-B0085-2 Assembly 46 Z-S1540-2, Z-S1540-3 & Z-S1540-4 can be found in Bag 28. Z-S1540-3 Z-S1540-2 Z-S1540-4 Z-S0648 Z-S0648 M3X8 Flat Head...
  • Page 54 Assembly 47 Z-S0652 Z-A0080 Z-S0652 M3X8 Button Head Assembly 48 Z-S0795-2 Z-S0649 Z-A0010 Z-S0649 Z-S0795-2 can be found in Bag 29. M3X8 Flat Head...
  • Page 55 Assembly 49 Z-S0655 Z-S0795-1 Z-S0795-1 can be found in Bag 29. Z-S0655 M3X14 Button Head Assembly 50 Z-S0649 Z-S1544-1 can be Z-A0081 found in Bag 21. Z-S1544-1 Z-S0649 M3X8 Flat Head...
  • Page 56 Assembly 51 Z-S0655 Z-S1544-2 Z-S0655 Z-S1544-2 can be found in Bag 21. M3X14 Button Head Assembly 52 Links can be found in Bags 23/24/25/26/27. Rod Ends can be found in Bags 31/32/33/34. Z-S0399 Z-S0807 M3X15mm 59mm Link Z-S0884 M3X15mm Make 2 50mm Link Z-S1084 Z-S0402...
  • Page 57 Assembly 54 Z-S1528-1 can be found in Bag 19. Z-U0034 Z-S0960 Z-S0960 Z-S1528-1 M3X6 Button Head Assembly 55 Z-S1528-2 can be found in Bag 19. Z-S0648 Z-S0648 Z-S1528-2 M3X6 Flat Head...

  • Page 58: Z-C0046

    Assembly 56 Z-C0050-1 can be found in Bag 19. Z-C0050-1 Z-S0648 Z-C0050-1 Z-C0050-2 Z-S0648 M3X6 Flat Head Z-C0046-5 Z-S0652 Z-S0652 M3X8 Button Head Assembly 57 Z-S1530 can be found in Bag 20. Z-S1530 Z-C0046-3 Z-S0653 Z-S0653 Install 2 sets M3X10 Button Head...
  • Page 59 Assembly 58 Z-C0046-3 Z-C0048 Z-C0046-1 Z-C0046-6 Z-S0652 Z-S0652 M3X8 Button Head Z-S0653 Z-S0653 M3X10 Button Head Assembly 59 Z-C0046-4 & Z-C0046-7 can be found in Bag 19. Z-C0046-2 Z-S1538 Z-C0046-7 Z-S0652 Z-S0652 Z-C0046-4 M3X8 Button Head Z-S0653 M3X10 Button Head Z-S0654 Z-S0654 Z-S0654...
  • Page 60 Assembly 60 Z-S0648 Z-C0050-3 Z-S0648 M3X6 Flat Head Assembly 61 Z-S1532 Z-S1534 Front Rear...

  • Page 61: Z-S1540

    Assembly 62 Z-S1536 can be found in Bag 20. Z-S1536 Z-S0648 Z-S0652 Z-S1532 Z-S1536 Z-S1532 Z-S0648 Z-S0648 M3X6 Flat Head Z-S0652 Z-S0652 M3X8 Button Head Assembly 63 Z-S1534 Z-S1542 Z-S1536 Z-S1542 Z-S1534 Z-S0648 M3X6 Flat Head Z-S0653 M3X10 Button Head Z-S0653 Z-S0652 Z-S0652...

  • Page 62: Z-S1546

    Assembly 64 Z-S1540-1 can be found in Bag 20. Z-S1540-1 Z-S0653 Z-S0653 M3X10 Button Head Assembly 65 Z-U0029 Z-S0599 Z-S0599...
  • Page 63 Assembly 66 Z-S0804 Z-S0804 M3 Driveshaft Pin Assembly 67 Z-S0653 Z-S0653 M3X10 Button Head...
  • Page 64 Assembly 68 Z-S0804 Z-S0804 M3 Driveshaft Pin Assembly 69 Z-S1546-3 Z-S1546-4 Z-S0927 Z-S1546-4 can be found in Bag 22. Install 2 sets Z-S0927 M2X4 Cap Head...
  • Page 65 Assembly 70 Z-S1546-5 can be found in Bag 22. Z-S1546-5 Z-S1546-1 Z-S1546-2 Z-S1546-3 Z-S1518 Z-S1546-2 Z-S1546-3 Z-S1518 M2X6 Flat Head Assembly 71 Z-S0927 Z-S0927 Z-S0927 M2X4 Cap Head...
  • Page 66 Assembly 72 59mm Link Z-S0654 Z-S0654 M3X12 Button Head Assembly 73 71.5mm Link Z-S0657 Z-S0629 Z-S0629 Z-S0657 Z-S0629 M3 Nut Z-S0657 M3X18 Button Head...
  • Page 67 Assembly 74 Z-D0039 Z-S0600 Z-S0654 Z-S0600 M3X2 Spacer Z-S0654 Z-S0600 Z-S0654 M3X12 Button Head Assembly 75 Z-S0809 Z-S0654 Z-S0809 104.5mmLink Z-S0809 M3X1 Spacer Z-S0654 Z-S0654 M3X12 Button Head...
  • Page 68 Assembl y76 Z-S0895 Z-S0653 Z-S0809 Z-S0809 M3 X 1 Spacer Z-S0653 M3X10 Button Head Z-S0895 M3X20 Button Head Assembly 77 Z-S0654 Z-S0654 Z-S0654 M3X12 Button Head...
  • Page 69 Assembly 78 Z-S0653 70mm Link Z-S0653 Z-S0653 M3X10 Button Head Assembly 79 52mm Link Z-S1367 Z-S0629 Z-S0629 M3 Nut Z-S1367 M3X22 Cap Head...
  • Page 70 Assembly 80 Z-S0654 Z-S0654 Z-S0654 71.5mm Link M3X12 Button Head Assembly 81 Z-D0039 Z-S0654 Z-S0600 Z-S0600 M3 X 2 Spacer Z-S0600 Z-S0654 Z-S0654 M3X12 Button Head...
  • Page 71 Assembly 82 Z-S0656 Z-S0629 Z-S0629 M3 Nut Z-S0655 Z-S0655 M3X14 Button Head Z-S0656 M3X16 Button Head Assembly 83 Z-S0654 Z-S0654 M3X12 Button Head...
  • Page 72 Assembly 84 50mm Link Z-S1367 Z-S0629 Z-S0629 M3 Nut Z-S1367 M3X22 Cap Head Assembly 85 71.5mm Link Z-S0654 Z-S0654 Z-S0654 M3X12 Button Head...
  • Page 73 Assembly 86 Z-D0039 Z-S0654 Z-S0600 Z-S0600 M3 X 2 Spacer Z-S0654 Z-S0600 Z-S0654 M3X12 Button Head Assembly 87 Z-S0656 Z-S0629 Z-S0629 M3 Nut Z-S0629 Z-S0654 M3X12 Button Head Z-S0656 Z-S0656 Z-S0654 M3X16 Button Head...
  • Page 74 Ring Assembly Z-S0443 ① ② ③ Assembly 88 Z-S0125 Z-S0125 Z-S1548 M3X5 Set Screw...
  • Page 75 Assembly 89 Z-S0654 Z-S0654 M3X12 Button Head Assembly 90 Z-S0125 Z-S0583 Z-S0125 Z-S0125 M3X5 Set Screw...
  • Page 76 Assembly 91 Z-S0804 Z-S0804 M3 Driveshaft Pin Assembly 92 Note: Servos are not included in KIT Version. Z-S0182 70mm Link Z-S0653 Z-S0653 M3X10 Button Head...
  • Page 77 Assembly 93 Z-S0652 Z-S0652 M3X8 Button Head Z-S0653 Z-S0653 M3X10 Button Head Assembly 94 Z-S0652 Z-S0652 M3X8 Button Head...
  • Page 78 Assembly 95 Assembly 96 Z-S0960 Z-S0960 M3X6 Button Head...
  • Page 79 Assembly 97 41mm Link Z-S0653 Z-S0653 M3X10 Button Head Assembly 98 Z-S0238 Z-S0277 Z-S0238 Z-S0277...
  • Page 80 Assembly 99 Z-S0620 Z-S0620 Z-S0620 M4 Nut Assembly 100 Note: Motor is not included in KIT Version. Z-S0124 Z-S0430 Z-S0430 Z-S0124 M3X3 Set Scre w...
  • Page 81 Assembly 101 Z-S0960 Z-S0960 M3X6 Button Head Assembly 102 Z-S0648 Z-S0648 M3X6 Flat Head...
  • Page 82 Assembly 103 Z-S1529-3 Z-S1518 Z-S1518 M2X6 Flat Head Assembly 104...
  • Page 83 Assembly 105 Z-B0017 Z-B0017 can be found in Bag 18. Z-B0017 Complete Assembly 106 Before Adjustment The installation of 6x6 rear axles gear is different than the G2. Reinstall if you plan on using this axle on another truck.
  • Page 84 Disassembly 1 Disassembly 1 M2x6 Cap Head Disassembly 2 M2x10 Cap Head Disassembly 3 M2x6 Cap Head M2x6 Cap Head...
  • Page 85 Adjust Reverse Assembly 1 M2x6 Cap Head M2x6 Cap Head Assembly 2 M2x10 Cap Head...
  • Page 86 Assembly 3 Please focus on third member direction. M2x6 Cap Head...

  • Page 87: Spare Parts

    Spare Parts Z-D0039 Dual Spring 80mm Scale Black Shocks (Ver 2) Z-U0034 R3 Scale 2 Speed Cast Transmission Z-U0029 Triton Transfer Case (1/1) Z-S0583 Scale Nylon Short Punisher Shaft (89mm-120mm) Z-A0080 Yota II Ultimate Scale Cast Axle (Front) Z-A0010 Yota II Ultimate Scale Cast Axle (Center Rear) Z-A0081 Yota II Ultimate Scale Cast Axle (Rear) Z-S0599...
