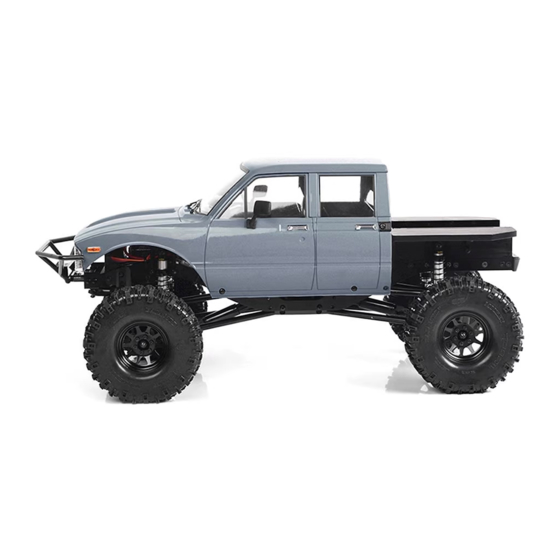

RC4WD C2X Class 2 Competition Truck w/ Mojave II 4 Door Body

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C2X Class 2 Competition Truck w/ Mojave II 4 Door Body and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RC4WD C2X Class 2 Competition Truck w/ Mojave II 4 Door Body

Summary of Contents for RC4WD C2X Class 2 Competition Truck w/ Mojave II 4 Door Body

  • Page 1 RC4WD C2X Class 2 Competition Truck w/ Mojave II 4 Door Body...

  • Page 2: Warranty

    This warranty lasts 30 days after arrival for original pur- chaser. In the event of a defect under this warranty, RC4WD will, at our discretion, replace the product, provided our inspection indicates that an original defect exists.
  • Page 3 Z-B0120 Z-W0210 Z-S1811 Z-T0123 Z-D0052 Z-U0024 Z-U0028 Z-S0594...
  • Page 4 Z-A0104 Z-A0106 400-0060 400-0059 400-0057 400-0058 400-0055 350-1557 400-0056 350-1561 350-1555 350-1558 350-1560 400-0054 350-1562 Z-S0597 400-0061 350-1560 350-1556...
  • Page 5 350-1565 350-1566 Z-B0029 350-1563 350-1554 350-1559 350-1564 350-1567 325-0980 Z-S1378 350-1568 350-1553 350-1552 150-0061 150-0064 150-0062 150-0063 150-0318 150-0067 150-0068 M3 x 6mm BHCS M3 x 8mm BHCS M3 x 12mm BHCS M3 x 10mm BHCS M3 x 15mm BHCS M3 x 18mm BHCS M3 x 20mm BHCS 150-0069...

  • Page 6: Battery Charging

    BATTERY CHARGING 1. Only change batteries that are cool to the touch and are not damaged (swollen, bent, broken or punctured). 2. Connect the charger to the proper wall receptacle noting proper polarity. 3. Plug the battery’s connector into the charger’s connector. The LED will light red as it is charging.
  • Page 7 Failure to follow instructions associated with this symbol risks injury or even death! Avoid battery liquid contact with skin and clothing. If contact occurs, remove contaminated clothing and wash skin thoroughly with water. Before Use: Read and understand the battery and charger operating instructions before recharging. ONLY use genuine charger unit for NEVER place a battery into water.

  • Page 8: Size Specifications

    RC4WD Outcry III Waterproof ESC Z-E0113 Fwd.Cont. / Peak Current 60A/360A Rev.Cont. / Peak Current 30A/180A Voltage Range 2-3S Lipo or 5-9 NiMH 1/8:Touring Car, Buggy,Short Course Truck, Monster, Truggy, Cars Applicable Rock Crawler and Tank 2S Lipo or 6 NiMH 540,550,775 Size Motor: ≧12T or RPM＜3000 @7.2V...
  • Page 9 FEATURES INSTRUCTIONS • Water-proof and dust-proof, suitable for all-weather conditions. Product Features and Characteristics • Small size with built-in capacitor module. I.Battery & Operating mode • Three running modes: Fwd/Br, Fwd/Rev/Br and Fwd/Rev, fits for various vehicles. Note 1: Fwd =Forward, Br=Brake, Rev=Reverse. •...
  • Page 10 Steering Servo Receiver Battery Gas Powered Model Channel 4 Servo Channel 3 Servo RC4WD Throttle Servo Warning: Please replace batteries when the Connect to Power Switch power indicator blinks or the buzzer beeps. Receiver Battery Steering Servo RC4WD USA 100-0012...

  • Page 11: Step 4. Binding The Transmitter And Receiver

    3CH Transmitter / Radio Step 5. Fail Safe Function Settings Step 4. Binding the Transmitter and Receiver 1. Turn on the receiver power. Press the SW switch. The receiver’s LED should start flashing. 1. Set the TH, ST switches to the norm position. 2.
  • Page 12 C2X Class 2 Competition Truck w/ Mojave II 4 Door Body Manual This is a step by step overview of your new C2X RTR Truck electrical items and how they connect. 1. Outcry III Waterproof ESC (Z-E0113) 2. Shows the ESC connected to the Brushed 35T Crawler Motor (Z-E0005)
  • Page 13 3. This shows the ESC to radio’s receiver (Z-R0008) connected to the CH2 port 4.Connect the servo (Z-E0035) to the radio’s receiver Channel 1 (CH1) This controls the truck’s steering from the radio...
  • Page 14 5. Shows the battery (Z-E0090) connected to the ESC 6. This final step shows all the items as they are connected on the truck...
  • Page 15 Step 1 *How to adjust the upper links. Step 2 *How to install the links on the lowest position. *Use screws from Parts Bag for this step 150-0064 M3 x 12mm BHCS Z-S0629...
  • Page 16 Step 3 *How to re-install the battery tray. 150-0101 M3 x 10mm FHCS Z-S0629 Step 4 *How to re-install the battery tray continued... Z-S0648 M3 x 6mm FHCS...
  • Page 17 Step 5 *How to adjust the rear shock hoops. 150-0062 M3 x 8mm BHCS 150-0067 M3 x 18mm BHCS 350-0020 2mm Spacer Step 6 *How to adjust the rear shock hoops, continued... 150-0062 M3 x 8mm BHCS 150-0067 *Use thread lock when M3 x 18mm BHCS installing screws.
  • Page 18 Step 7 *How to install the battery straps. *Two slots allow for large and small batteries to be strapped into place Step 8 *How to install the main cab. 150-0062 M3 x 8mm BHCS...

  • Page 19: Replacement Parts

    Trail Finder 2 Plastic Body Posts Z-B0120 Mojave II Four Door Complete Body Set Z-B0122 RC4WD Mojave II Cab Back Panels and Grill Parts Tree (Primer Gray) Z-B0078 RC4WD Mojave II Clear Parts Tree Z-B0076 RC4WD Mojave II Chrome Bumper and Parts Tree...
  • Page 20 RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) Z-D0061 RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) Z-D0068 RC4WD King Off-Road Dual Spring Shocks for Axial Yeti Front (100mm Medium OD) Z-D0033 RC4WD King Off-Road Scale Dual Spring Shocks (90mm) Z-D0031...
  • Page 21 Punisher Shaft for Axial Wraith (106mm - 140mm / 4.17" - 5.51" ) 5mm Hole Z-S0238 RC4WD 12mm Axle Wheel Hex Set Z-S0778 RC4WD Marlin Crawler Front Steel Tube Bumper for Trail Finder 2 Z-S0612 RC4WD MAXTRAX Vehicle Extraction and Recovery Boards 1/10 (Safety Orange) (2) Z-S0699...
  • Page 22 RC4WD Large Shovel Winch Anchor Z-S1496 RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 Z-S1789 RC4WD Marlin Crawler Front Winch Bumper w/Stinger for Trail Finder 2 Z-S1831 RC4WD MAXTRAX Vehicle Extraction and Recovery Boards 1/10 (Safety Orange) (2) Z-S1833...
  • Page 23 Scale Garage Series 1/10 Dual Tank Welders Cart Z-X0030 Scale Garage Series Metal Handy Cart Z-X0050 RC4WD ARB Roof Rack for Mojave II Four Door Body Z-X0039 Tough Armor LZR-1 Metal Roof Rack Z-G0065 12t 32p Hardened Steel Pinion Gear...
  • Page 24 720 N. Gateway St. Visalia, CA 93291 Web: www.rc4wd.com - Email: support@rc4wd.com 100-0074...
