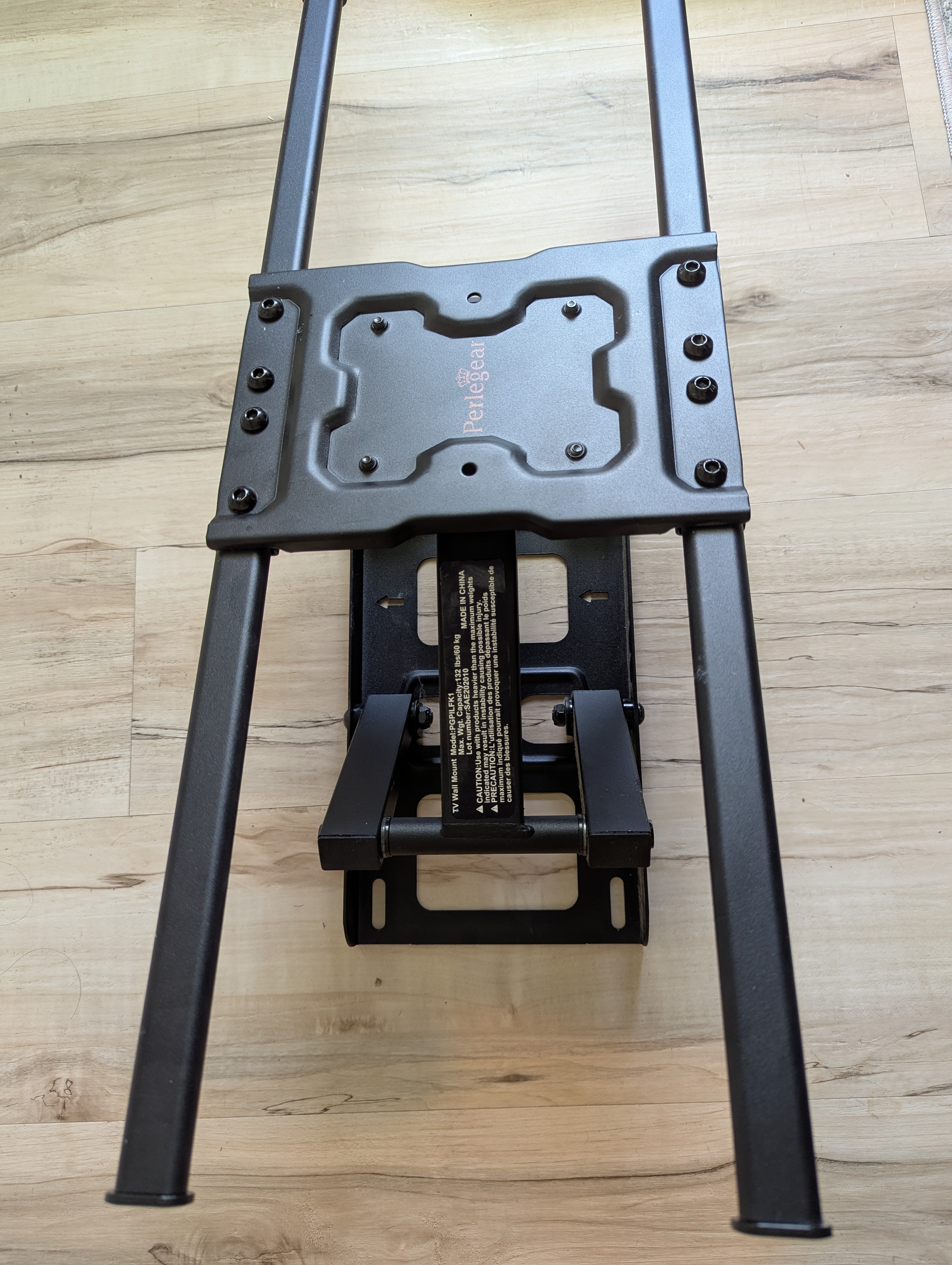

LARGE FULL-MOTION TV WALL MOUNT
V1.0
PGPILFK1
Thank you for choosing our product! We strive to
provide the best quality and services for our
customers. Would you kindly share your experience
on Amazon if you are satisfied? Should you have
any issues, please don't hesitate to contact us.
Email：support@perlegear.com
Advertisement
Table of Contents
Related Manuals for Perlegear PGPILFK1
Summary of Contents for Perlegear PGPILFK1
- Page 1 LARGE FULL-MOTION TV WALL MOUNT V1.0 PGPILFK1 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? Should you have any issues, please don't hesitate to contact us.
-
Page 2: Supplied Parts
•Carefully read all instructions before attempting installation.If you do not understand the instructions or have any concerns or questions, please contact customer service at support@perlegear.com •This product may contain moving parts. Use with caution. •Do not use this product for any purpose or in any configuration not explicitly specified in this instruction. -
Page 3: Supplied Hardware
(1PC) (2PCS) Supplied Hardware Hardware for Attaching Wall Plate to Wall Lag Bolts Washers Wall M8X65 Anchor CAUTION! These anchors are for concrete or brick walls ONLY. DO NOT use them in drywall or wood studs. Hardware for Attaching TV Bracket to TV Spacers Spacers Washers... - Page 4 Step 1 Measure VESA and Check TV screws Measure the distance between the holes located at the back of your TV (these measures may form the shape of a square, or a rectangle) and check that these taken measures are within the VESA(*) range for this wall mount.(*) VESA: International standard established by the TV manufacturers used to determine if LCD/LED TVs are compatble with wall mounts.
- Page 5 Step 2 Step 1 Tighten the two screws together. Step 2 Tighten the two screws together.
- Page 6 Step 3 Install TV bracket Manual Only! For Flat screen TV Manual Only! For Curved TV E2/E3 C1/C2 C1/C2...
-
Page 7: Step 4 Attach Wall Plate To Wall
Step 4 Attach Wall Plate to Wall For wood stud installation, follow STEP 4A For concrete installation, follow STEP 4B Step 4A Wood Stud Option WARNING: Avoid potential personal injury or property damage! DO NOT over-tighten the lag bolts [A1]. Tighten the lag bolts [A1] only until the washers [A2] are pulled firmly against the wall plate . - Page 8 4A-3 4A-4 Mount the wall plate using 4 sets of M8X65 lag bolts A1 and washers A2 with a 1/2 in.socket wrench(not included). Drill 4 pilot holes using a 1/5 in. (5mm) Wood Drill diameter drill bit.Make sure the depth is not less than 65mm. socket wrench Step 4B Solid Concrete or Concrete Block Option WARNING:...
- Page 9 4B-1 4B-2 10mm Drill 4 pilot holes using a 25/64 Position the wall plate at your desired in.(10mm) diameter drill bit.Make sure the height, level the wall plate and mark the depth is not less than 70mm. pilot hole locations. 4B-3 Use the hammer to knock anchors A3 into the wall.
-
Page 10: Step 6 Level Adjustment
Step 5 Hang your TV to the Brackets and lock it. Iocking Step 6 Level Adjustment If needed,the TV can be leveled. Level the TV... -
Page 11: Tilt Adjustment
Step 7 Tilt adjustment socket wrench Tilt adjustment... - Page 12 Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? Should you have any issues, please don't hesitate to contact us. Email：support@perlegear.com...
