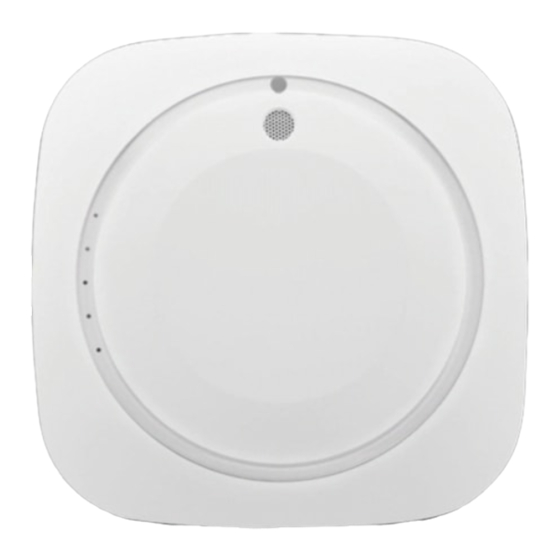

Delta Uno Sense S1649 Quick Start Manual

【 Care and maintenance 】
NOTICE: Failure to follow these care and cleaning instructions could result in
damage to UNO sense or other property.
Using connectors and ports
Never force a connector into a port. Check for obstructions on the port. If the connector and port don't join
with reasonable ease, they probably don't match. Make sure that the connector matches the port and that
you have positioned the connector correctly in relation to the port.
Keeping UNO sense within acceptable temperatures
Operate UNO sense in a place where the temperature is always between
Keeping the outside of UNO sense clean
•
To clean UNO sense, unplug the power cord and all cables.
•
Then use a soft, lint-free cloth. Avoid getting moisture in openings. Do not spray liquid directly on the UNO sense.
• Don't use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasives to clean UNO
sense.
WARNING: Never push objects into the ventilation openings.
Proper handling
Proper handling set up your UNO sense on a stable work surface that allows for adequate air circulation
under and around the UNO sense.
Water and wet locations
Keep your UNO sense away from sources of liquid, such as drinks, washbasins, bathtubs, shower stalls,
and so on. Protect your UNO sense from dampness or wet weather, such as rain, snow, and fog.
Do Not Make Repairs Yourself
•
Do not attempt to open UNO sense or disassemble it. If you need any further assistance, please
contact uno.service@deltaww.com
•
The limited warranty does not responsible for damage arising from failure to follow instructions relating
to the part's use.
• Don't attempt to replace the UNO sense battery yourself—you may damage the battery, which
could cause overheating, fire, and injury. The lithium-ion battery in your UNO sense should be serviced
or recycled by UNO sense or an authorized service provider, and must be recycled or disposed of
separately from household waste. Do not expose your UNO sense to extreme heat sources, such as
radiators or fireplaces, where temperatures might exceed 212°F or 100°C.
WARNING: Failure to follow these safety instructions could result in fire, electric
shock, or other injury or damage to UNO sense or other property.
Important: The only way to turn off power completely is to unplug the power cord. Make sure at least one
end of the power cord is within easy reach so that you can unplug your UNO sense when you need to.
Remark:
1. CO2 measurement range/accuracy range
2. TVOC unit conversion 1ppm=1,000ppb
PM2.5 accuracy tolerance ±15μg/m³
3.
4. The information and specifications contained herein are subject to change without notice.
5. Actual performance and measurement of the product will vary from operation conditions and
environmental factors, result in discrepancy on actual operation measuring indications.
6. Please move carefully to keep the precision of sensors.
7. CO2 component will be automatically calibrated after 24 hours
Avoid direct Indoor only Avoid the keep out of
sunlight outlet LED heat
source
uno.sales@deltaww.com
uno.service@deltaww.com
+886-2-8797-2088
No.186, Ruiguang Rd., Neihu Dist., Taipei City 114,
Taiwan (R.O.C.)111
© 2018 Delta Electronics, Inc. All Rights Reserved.
0º ~ 35º C（32º ~ 95º F）
keep out keep out of avoid cleaning
of fire cooking agents
www.uno.deltaww.com
【 Specification 】
Ambient light
PM2.5
LED
Power
Wi-Fi
1
Bluetooth
2
Bluetooth
Error
USB Power

【 Accessories】

• Bracket x 1
• USB cable x 1
70 x 120 x 15 mm
(2.76" x 2.76" x 0.59")
• Manual
x 1

【Installation type】

• Wall type
150cm
(5.9")
Note : not allowed suspended ceilings
Model name S1649
Temperature. Humidity. CO2. TVOC.
Sensor
PM2.5. Pressure. Ambient light
Operating
(32 ~ 95°F)
0 ~ 35°C
temperature
Input power DC 5V/2A
140 x 140 x 39mm
Dimension
(5.5" x 5.5" x 1.54")
Weight 300g (10.6oz.)
•
Wi-Fi
Communication
•
Bluetooth Low Energy v4.1
•
Smartphone iOS
requirements
•
Android
• Power adaptor x 1
Cable length 1M 100-240V~50-60Hz
USB A-Micro B 5V-2A 10W
• cable clamps x 3
• Table type
130cm
(5.12")
V1.0
