- Page 1 Accessing and Navigating the RL1 Webpage www.jgroptics.com © 2020 JGR Optics Inc. All Rights Reserved...
- Page 2 Accessing and Navigating the RL1 Webpage This guide will give an overview of how to access and navigate the RL1 webpage via an ethernet connection. For more information, please visit www.jgroptics.com or email support@jgroptics.com www.jgroptics.com © 2020 JGR Optics Inc. All Rights Reserved...

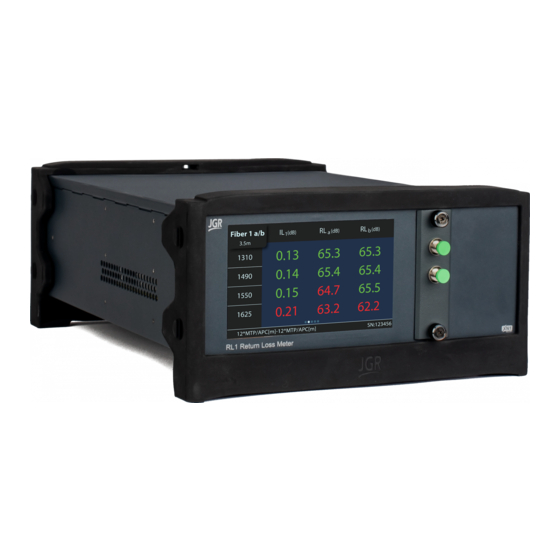

- Page 3 Accessing and Navigating the RL1 Webpage 1. Connect the following: a) Power cable to the back of the RL1 b) Ethernet cable from the router to the back of the RL1 2. Turn on the RL1 Step 1. b) Step 2.
- Page 4 Accessing and Navigating the RL1 Webpage 3. Swipe to the Setup page which displays information about the device 4. Network Status will show as Connected 5. The IP address of the RL1 will be displayed Step 4 Step 5 Step 3 Note: if Network Status reads as Disconnected, please verify your ethernet connection and try again.
- Page 5 Accessing and Navigating the RL1 Webpage 6. Open a web browser from a PC or tablet on the same network as the RL1. Enter the IP address of the RL1 into the search bar. The RL1 webpage should load within a few seconds.
- Page 6 Accessing and Navigating the RL1 Webpage Dashboard Displays calibration reports: • Factory calibration by JGR • Self-calibration (last 3 are stored on the RL1) Click on the arrow to view the desired report www.jgroptics.com © 2020 JGR Optics Inc. All Rights Reserved...
-
Page 7: System Information
Accessing and Navigating the RL1 Webpage System Information Ø Device History: displays the RL1 events log www.jgroptics.com © 2020 JGR Optics Inc. All Rights Reserved... - Page 8 Accessing and Navigating the RL1 Webpage Settings Ø Network Settings: the RL1 network parameters can be set automatically or manually • Automatic: enable DHCP (dynamic IP address) • Manual: disable DHCP and set parameters (fixed IP address) www.jgroptics.com © 2020 JGR Optics Inc. All Rights Reserved...
- Page 9 Note: the power meter firmware is stored on the RL1. If the Upgrade Status indicates that an upgrade is required, click on the button to the right of it to install the new firmware for each power meter as indicated.
-
Page 10: Self Calibration
Accessing and Navigating the RL1 Webpage Self Calibration More information on the self-calibration process can be found in the RL1 Self Calibration tutorial available in the Tutorials section of our website: http://www.jgroptics.com/support/tutorials www.jgroptics.com © 2020 JGR Optics Inc. All Rights Reserved... - Page 11 Accessing and Navigating the RL1 Webpage Help • Contact JGR Optics’ technical support • Contact the sales department • Download the latest version of the XN1 server software www.jgroptics.com © 2020 JGR Optics Inc. All Rights Reserved...
- Page 12 Accessing and Navigating the RL1 Webpage About Displays information about the device www.jgroptics.com © 2020 JGR Optics Inc. All Rights Reserved...
