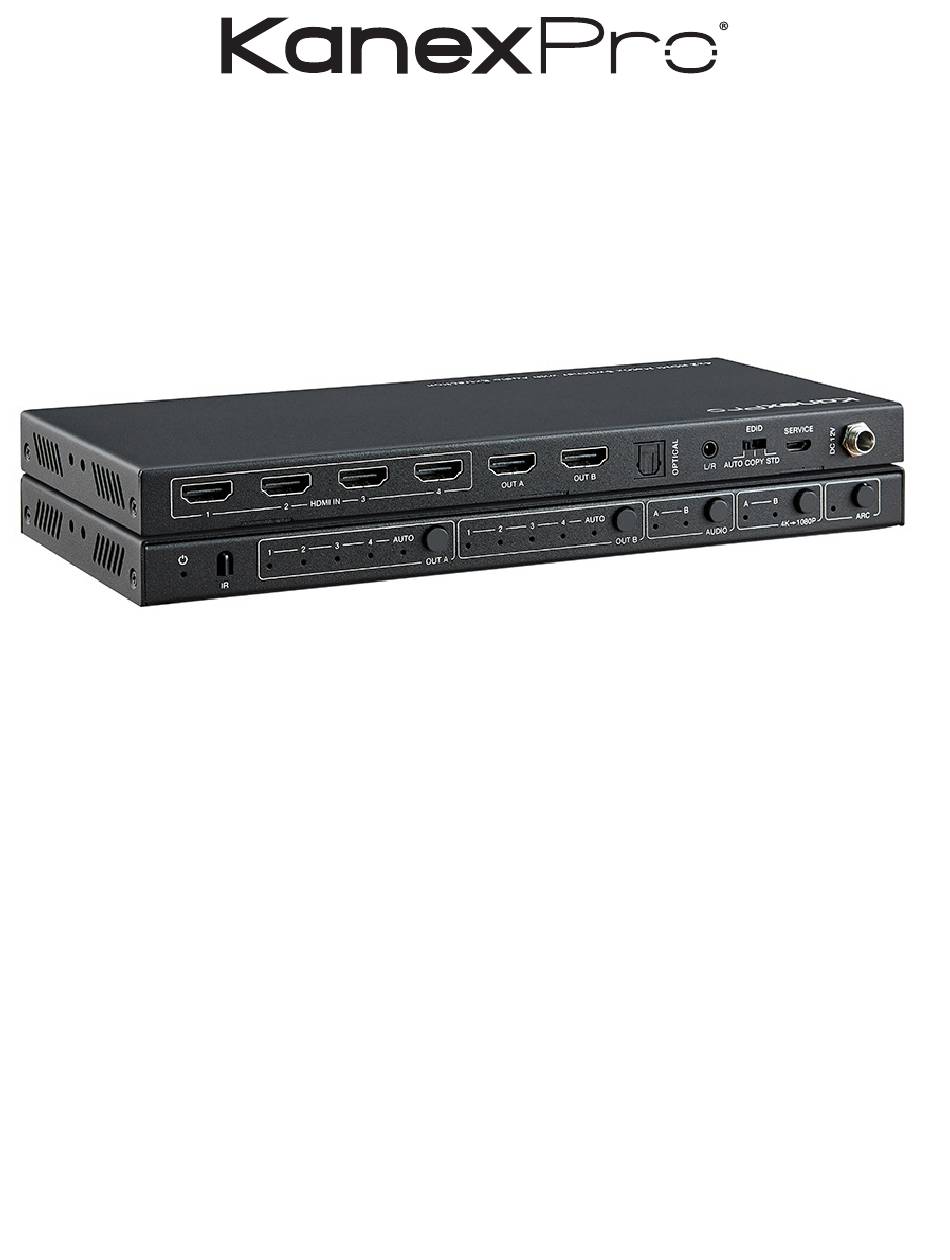

- Page 1 Ultra-Fast 4x2 HDMI Matrix Switcher with Audio Extraction 4K/60Hz All Rights Reserved MPN: HDMX42A-18G...
-
Page 2: Table Of Contents
Ultra-Fast 4x2 HDMI Matrix Switcher with Audio Extraction 4K/60Hz Ultra-Fast 4x2 HDMI Matrix Switcher with Audio Extraction 4K/60Hz SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: •... -
Page 3: Features
4K sources to 1080p displays allowing for the unit to be integrated in mixed 4K and 1080p systems with no loss of quality to the 4K display. The HDMX42A-18G is ideal for swift switching and routing of any HDMI sources such as laptops, Blu-ray players, and 4K based Apple TV to any four displays. -
Page 4: Operation Controls And Functions
Premium Extender Kit for K-12 Educational Applications Connections Input Ports 4xHDMI Type A [19-pin female] Output Ports 2xHDMI Type A [19-pin female] 1xL/R audio out [3.5mm Stereo Mini-jack] 1xOPTICAL audio out [S/PDIF] Mechanical Housing Metal Enclosure Color Black Dimensions 251mm(W)x105mm(D)x20mm(H) Weight 620g Power Supply... -
Page 5: Rear Panel
4x2 HDMI 2.0 Seamless Matrix Switcher ◼ Audio button Press AUDIO button to select extract the input source audio from OUT A port or OUT B port to optical and analog L/R output, the corresponding blue LED will illuminate. ◼ If ARC function is turned on, press Audio button to select return the audio signal from OUT A or OUT B display device to optical output, the corresponding blue LED will illuminate. -
Page 6: Ir Remote
4x2 HDMI 2.0 Seamless Matrix Switcher 6. IR Remote Power on the product or set it to standby mode. Output A (Output B) Select input source signal to Out A port output, 1/2/3/4 the corresponding blue LED on the front panel will illuminate. -
Page 7: Application Example
4x2 HDMI 2.0 Seamless Matrix Switcher Audio function Turn on / off ARC function. ◼ If ARC function is turned on, press Audio A or B button to select return the audio signal from Out A or Out B display device to optical port (TOSLINK) output. At this time, the analog L/R port (Audio out) is mute. - Page 8 Remarks: For further assistance or solutions, please contact your local distributor, or email directly to us at support@kanexpro.com...
