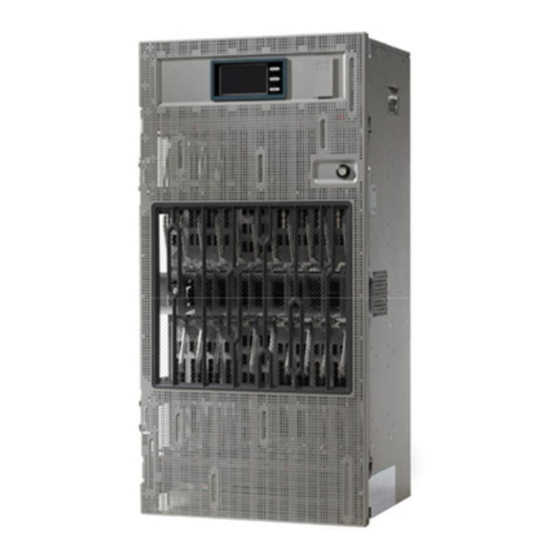

Cisco NCS 4016 Manual

Hide thumbs

Advertisement

Quick Links

Securing the Chassis
This chapter describes how to secure the Cisco NCS 4016 chassis in the rack.
Note
To install two Cisco NCS 4016 chassis in a single rack, you will need to have a minimum vertical opening
of 48 RU. If you are using the DC Power Front Connection Adapter, only one chassis will fit into the rack.
Preparing the Rack for Chassis Installation
Install the Cisco NCS 4016 chassis into one of the following standard racks:
• ANSI 19-inch or 23-inch (2- or 4-post)
• ETSI
Note
For the ANSI 19-inch rack, the minimum front opening must be 17.72 inches (450 mm) to allow for chassis
insertion.
If you are installing a single chassis in a rack, the chassis must go in the middle or bottom portion of the rack
or follow your company chassis mounting practices.
Note
At the bottom of the rack, keep 1 rack unit free to allow for removal of the bottom fan tray.
To bolt the rack to the floor, a floor bolt kit (also called an anchor embedment kit ) is required. For information
on bolting the rack to the floor, consult a company that specializes in floor mounting kits (such as Hilti; see
Hilti.com for details). Make sure that floor mounting bolts are accessible, especially if annual re-torquing of
bolts is required.
Preparing the Rack for Chassis Installation, on page 1
Preparing to Mount the Chassis in a Rack, on page 3
Mounting the Chassis into a Rack, on page 17
Attaching the Chassis Door, on page 22
Unpacking Chassis Component Shipping Pallets, on page 22
Securing the Chassis
1

Advertisement

loading

  Summary of Contents for Cisco NCS 4016

  • Page 1 Note To install two Cisco NCS 4016 chassis in a single rack, you will need to have a minimum vertical opening of 48 RU. If you are using the DC Power Front Connection Adapter, only one chassis will fit into the rack.
  • Page 2: Summary Steps

    Before you move the chassis or mount the chassis into the rack, we recommend that you do the following: SUMMARY STEPS 1. Place the rack where you plan to install the Cisco NCS 4016 chassis. 2. Secure the rack to the floor.
  • Page 3: Detailed Steps

    Preparing to Mount the Chassis in a Rack Before you mount the Cisco NCS 4016 chassis into a rack, it is critical that the installation site be prepared properly to handle the chassis weight, power requirements, cooling needs, and other requirements.
  • Page 4 Securing the Chassis Installing the Mounting Brackets Figure 2: Positioning for Mounting Bracket Installation Top bracket area, middle position Top bracket area, front position Bottom bracket area, middle position Bottom bracket area, front position Prerequisites Make sure that you have the correct type of mounting brackets to suit your rack type. There are three different types of mounting brackets for the three types of racks (ANSI 19-inch or 23-inch or ETSI).
  • Page 5 Installing the Mounting Brackets Required Tools and Equipment • Number 1 Phillips screwdriver • Cisco NCS 4016 installation kit (NCS4K-INST-KIT=) Installing the Mounting Brackets To attach the mounting brackets, simply fix each bracket onto the chassis using six screws as shown in the figure, below.
  • Page 6 Securing the Chassis Installing the Mounting Brackets Figure 4: Attaching ANSI 19-Inch Brackets to Front (4-Post Rack) or Middle (2-Post Rack) Securing the Chassis...
  • Page 7 Securing the Chassis Installing the Mounting Brackets Figure 5: Attaching ANSI 23-Inch Brackets to Front (4-Post Rack) or Middle (2-Post Rack) Securing the Chassis...
  • Page 8: Installing The Aid Brackets

    Identify the position of the chassis inside the rack to define the aid brackets position. Required Tools and Equipment • Number 1 Phillips screwdriver • Cisco NCS 4016 installation kit (NCS4K-INST-KIT=) Steps SUMMARY STEPS 1. Attach the aid brackets to the rack below where the chassis will sit. Tighten the two screws to firmly attach the brackets to the rack.
  • Page 9 Securing the Chassis Installing the Aid Brackets Figure 7: Attaching Aid Brackets to the Rack Step 2 Once the chassis has been installed, remove the aid brackets. Loosen the two screws from the aid brackets and take off the rack. Keep the aid brackets in case of future chassis relocation.
  • Page 10 Securing the Chassis Removing the Chassis Door What to do next To accommodate equipment racks with different mounting hole patterns, the aid brackets have groups of screw holes on either side. The mounting holes in the aid brackets are spaced so that one mounting hole in each hole group aligns with a corresponding hole in the equipment rack.
  • Page 11 Securing the Chassis Removing the Chassis Door Figure 8: Knob to Unlock Door Step 2 Open the door. Step 3 Loosen the screw to disconnect the ground cable. Securing the Chassis...
  • Page 12 Securing the Chassis Removing the Chassis Door Figure 9: Disconnecting the Ground Cable Securing the Chassis...
  • Page 13 Securing the Chassis Removing the Chassis Door Securing the Chassis...
  • Page 14 Securing the Chassis Removing the Chassis Door Step 4 Move down the pin to release the door from the chassis hinge. Securing the Chassis...
  • Page 15 Securing the Chassis Removing the Chassis Door Figure 10: Pin to Release Door from Hinge Securing the Chassis...
  • Page 16 Securing the Chassis Removing the Chassis Door Securing the Chassis...
  • Page 17: Mounting The Chassis Into A Rack

    Figure 11: Releasing the Bottom Hinge Pin Mounting the Chassis into a Rack This section describes how to mount the Cisco NCS 4016 chassis into a rack . The figure below, shows the chassis mounting hardware ready for rack mounting.
  • Page 18 Securing the Chassis Mounting the Chassis into a Rack Figure 12: Chassis Mounting Hardware Ready for Rack Mounting Prerequisites • Make sure that the rack is level and bolted to the floor. Securing the Chassis...
  • Page 19 Required Tools and Equipment • Number 1 Phillips screwdriver • Mechanical lifting device, such as a scissor lift or other suitable lifting device • Installation kit, shipped with the chassis, contains installation aid brackets and screws (Cisco product number NCS4K-INST-KIT=) Steps...
  • Page 20 Securing the Chassis Mounting the Chassis into a Rack Figure 13: Example Using a Scissor Lift to Position the Chassis in the Rack Step 3 Move the chassis. With at least two people, stand in front of the chassis and carefully push the chassis into the rack. Step 4 Move the lift aid away from the front of the chassis.
  • Page 21 Securing the Chassis Mounting the Chassis into a Rack Figure 14: Chassis Mounting Holes Securing the Chassis...
  • Page 22 If the front door was removed earlier, install it after the chassis is installed on the rack. For door installation details, see the “Replacing the Front Door” section in the Cisco Network Convergence System 4000 Series Hardware Installation Guide .
  • Page 23 Unpack all cosmetic parts from the packaging and set the parts carefully aside. What to do next What to Do Next You can now install any additional chassis components, line cards, route processor cards, and fabric cards. See the Cisco Network Convergence System 4000 Series Hardware Installation Guide . Securing the Chassis...
  • Page 24 Securing the Chassis Unpacking Chassis Component Shipping Pallets Securing the Chassis...
