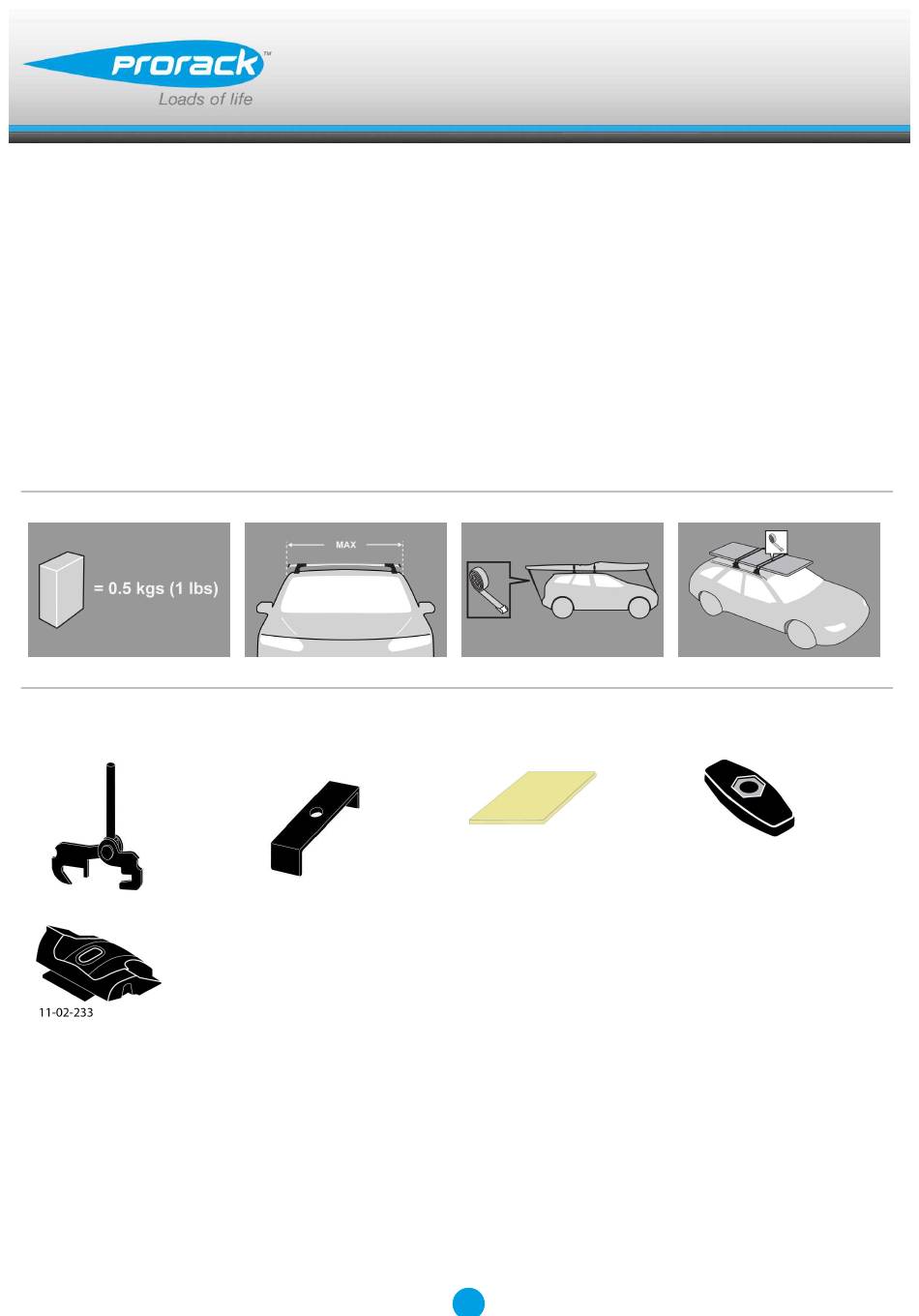

- Page 1 K730 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 1A...
- Page 2 Fitting Kit K730 MAX kgs (lbs) Chevrolet Orlando, 5dr MPV 10-+ 68 kgs (149 lbs) 68 kgs (149 lbs) Orlando, 5dr MPV 11-+ 68 kgs (149 lbs) 68 kgs (149 lbs)
- Page 3 Fitting Kit K730 Orlando, 5dr MPV 10-+ (EU) 250mm 960mm 932mm 910mm 9 13/16ths" 37 13/16ths" 36 11/16ths" 35 13/16ths" Orlando, 5dr MPV 11-+ (ZA) 250mm 960mm 932mm 910mm 9 13/16ths" 37 13/16ths" 36 11/16ths" 35 13/16ths"...
-
Page 4: First Time Installation
Fitting Kit K730 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K730 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 6 Fitting Kit K730 Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 7 Fitting Kit K730 Fitment Open or remove fixed-point covers. Hook clamps into the fixed points on the vehicle. Hook small claw into rear of the clamping block Hook large claw into front of the clamping block Ensure the clamp pin is inserted into the fixed point and the clamp sits flat to the body side.
- Page 8 Fitting Kit K730 Apply protective strip as shown. Place ditch mould insert over the clamp. Ensure internal clamp sits upright.
- Page 9 Fitting Kit K730 Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes underneath the foot. Place crossbar foot over clamp bolt. Tighten the plastic knob. The side with the nut showing should be facing up.
- Page 10 Fitting Kit K730 Ensure the plastic knob is in the position shown when fully tightened. Repeat for all four positions. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars.
-
Page 11: Maintenance
Fitting Kit K730 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K730 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Year Warranty
YakimaEU will issue to the original retail purchaser, at YakimaEUs option, either a refund equal to the purchase price paid for the product, or a credit to be used toward the purchase of new Prorack products or rack components.
