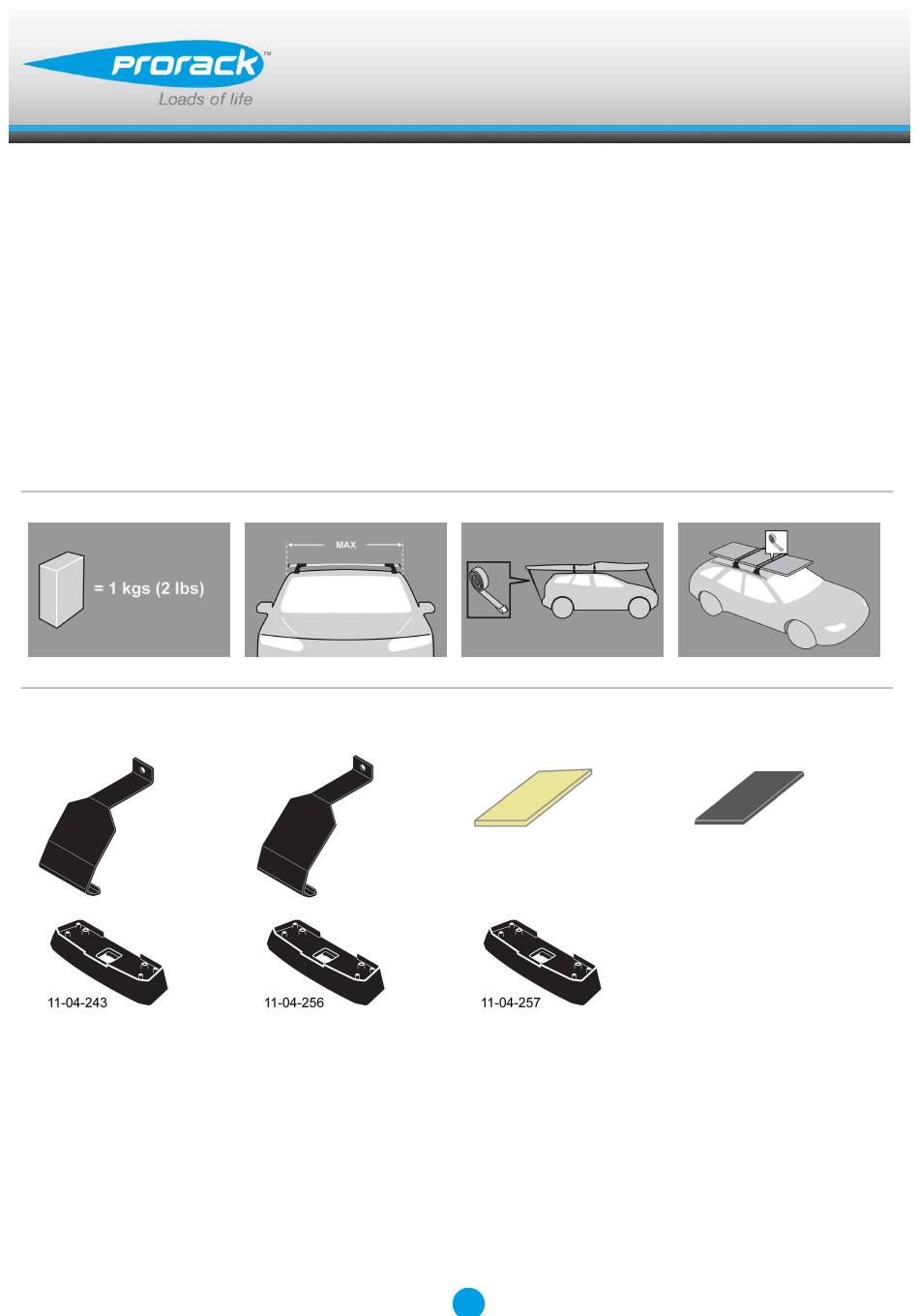

- Page 1 K700 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 2A...
- Page 2 Fitting Kit K700 MAX kgs (lbs) Nissan Pulsar , 4dr Sedan 12-+ 50 kgs (110 lbs) 50 kgs (110 lbs) Pulsar , 4dr Sedan Nov 12-+ 50 kgs (110 lbs) 50 kgs (110 lbs)
-
Page 3: First Time Installation
Fitting Kit K700 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K700 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K700 Remove locking screw. Apply protective strip as shown. Trim if required. A = Clear B = Grey It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps.
- Page 6 Fitting Kit K700 Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 7 Fitting Kit K700 It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 243A B = 256A C = 257A Place rubber pads (supplied with fitting kit) on the vehicle roof.
- Page 8 Fitting Kit K700 Fitment Clamps directly to edge of roof under the doors Please check the rear of this manual for information relating specifically to your vehicle. Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 9 Fitting Kit K700 Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 10 Fitting Kit K700 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K700 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K700 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 13 Fitting Kit K700 Pulsar, 4dr Sedan 12-+ (NZ) -240mm 460mm 922mm 888mm -9 -7/16ths" 18 1/8ths" 36 5/16ths" 34 15/16ths" Pulsar, 4dr Sedan Nov 12-+ (AU) -240mm 460mm 922mm 888mm -9 -7/16ths" 18 1/8ths" 36 5/16ths" 34 15/16ths"...
-
