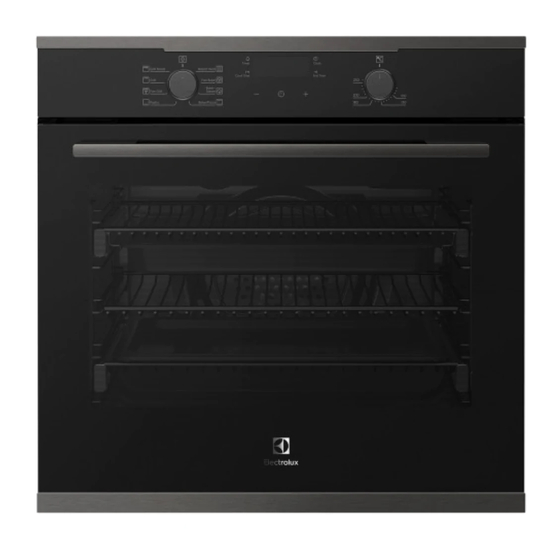

Electrolux EVE602 Installation Manual

Installation guide
Built-in ovens
WARNING
The appliance must not be installed behind a decorative door in
order to avoid overheating.
To avoid any potential hazard, you must follow our instructions
when you install your appliance. Failure to install the appliance
correctly could invalidate any warranty or liability claims and lead
to prosecution.
Use an authorised person
As stated in the local municipal building codes and other relevant
statutory regulations:
• Wiring connections must be in accordance with AS/NZS 3000
Wiring Rules and any particular conditions of the local authority.
• Refer to data plate for rating information. The data plate is
positioned behind the bottom of the oven door.
• For appliances with open cooking surfaces, a disconnect functional
switch should be provided near the appliance in an accessible
position. Refer to AS/NZS 3000 clause 4.7.1
• Wiring should be protected against mechanical failure. Refer to AS/
NZS3000 clauses 3.3.2.6, 3.9, 3.10
• A means of disconnection with a contact separation of at least
3mm must be supplied in the fixed wiring.
• This appliance must be connected with cable of 75°C rating
minimum.
• This product has passed the insulation resistance test after
manufacture. If the resistance reading is low at installation, it
is probably caused by moisture from the atmosphere being
absorbed by the elements after the appliance has been produced.
(pass at 0.01MΩ AS/NZS 3000 Wiring Rules Clause 8.3.6.2).
WARNING
This appliance must be properly earthed.
• Do not lift the appliance by the door handles.
• Prepare the cupboard opening to match your appliance
measurements. (See diagrams)
• Slide appliance into the cupboard, ensuring that the supply cable
(where fitted) does not kink.
• To prevent tipping, use the screws supplied to secure your
appliance into the cupboard by fastening through the 4 holes to
the front panel.
• Where the appliance is built into a cabinet, the cabinet must be
capable of withstanding 70°C. Installation into low temperature
tolerant cabinetry (e.g. vinyl coated) may result in deterioration of
the low temperature coating by discolouring or bubbling.
• If the appliance is to be installed adjacent to vinyl wrapped
surfaces, use an installation kit available from the vinyl-wrap
supplier.
• Electrolux Home Products cannot accept responsibility for damage
caused by installation into low temperature tolerant cabinets.
• After installation, test and ensure that the appliance operates
correctly before handing it over to the customer.
NOTE: If a powerpoint is fitted it must be accessible with the appliance
installed, as the plug must be accessible after installation.
Cabinet construction for your appliance
For the best integration within a kitchen, install this appliance in a
standard 600mm wide cupboard that gives a flush fit (Figure A) with the
surrounding cupboard fronts. Non-pyrolytic appliances can also be
installed using a proud fit (Figure B).
© 2020 Electrolux Home Products Pty Ltd. ABN 51 004 762 341 E_INS_Underbench_A4_Jun20 A20803501 Rev A
IMPORTANT
For all Pyrolytic clean models, the oven must be installed as a
flush fit (Figure A) to the surrounding cupboards and the "infill
panel" MUST not exceed 100mm in length. This ensures a 16mm
gap is maintained between the cabinet and side of the appliance
to prevent the cupboard overheating.
Figure A – Flush Fit
16mm
568mm
Infill panel
100mm max
for pyrolytic oven
Oven
Cupboard
door
600mm
Figure B – Proud Fit
16mm
568mm
Infill panel
Cupboard
Oven
door
600mm
NOTE: Your appliance must be mounted on a flat horizontal surface
for the full width and depth of the product
Levelling oven
Place a level in the oven as below making sure the level sits on the
front and rear forms. The level needs to be correct to prevent slides
from moving in or out with gravity.
To access your detailed user manual
simply scan the QR code on your
smart phone or visit electrolux.com.au/
support/manuals/
20mm
✓
