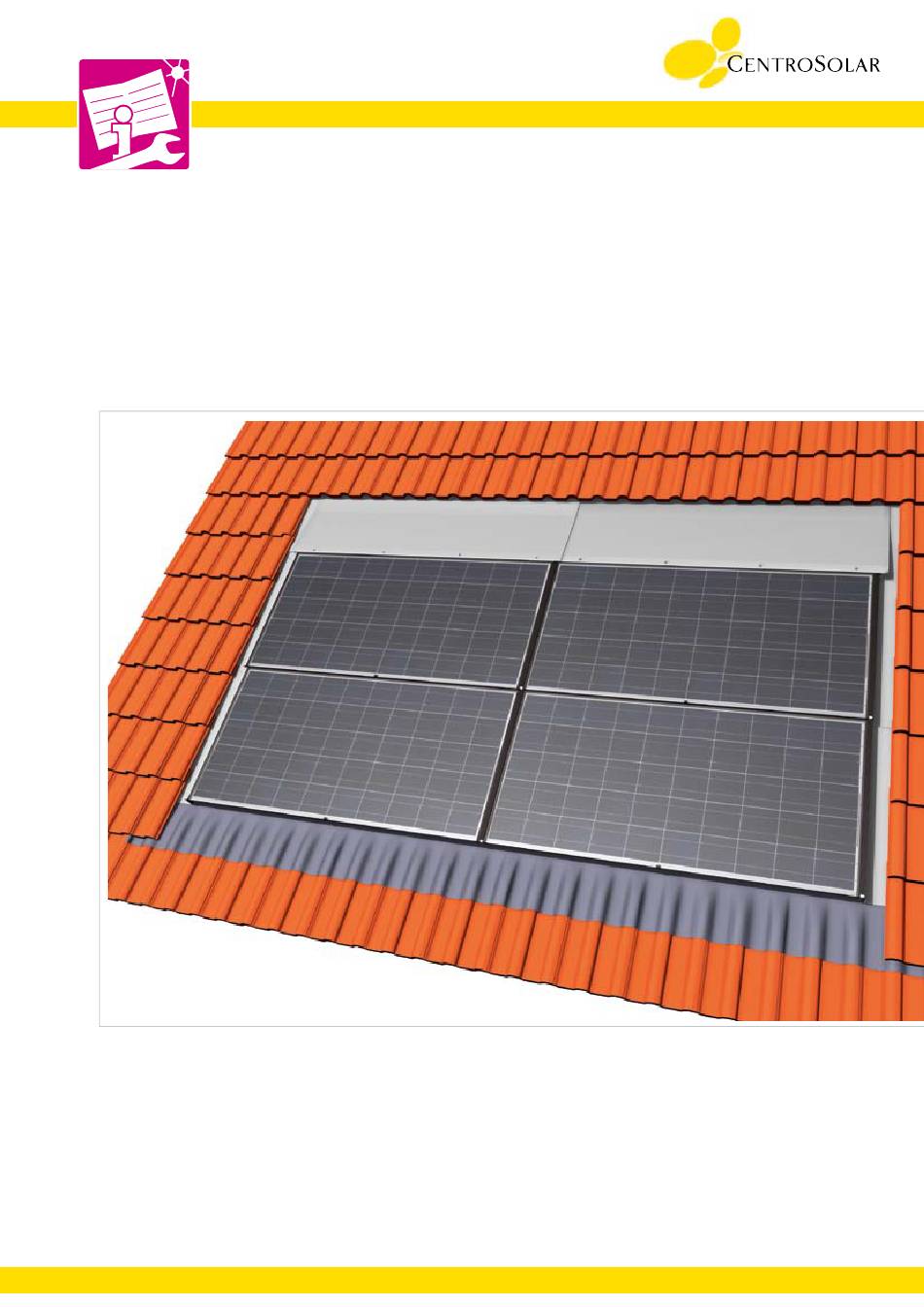

- Page 1 Installation Guide S-Class Integration Deluxe S-Class Integration Installation Guide S 190P50 Integration S 190M50 Integration Deluxe S 190P50 Integration Deluxe S 195P50 Integration S 195M50 Integration Deluxe S 195P50 Integration Deluxe...
-
Page 3: Table Of Contents
Installation guide Contents 1 Notes on this guide 2 System S-Class Integration (Deluxe) 2.1 Description 2.2 Tightness 2.3 Sub-roof 2.4 Dimensional data and dimensions 3 Scope of supply 3.1 Material and tools 3.2 List of material 4 Module connection - circuitry proposals 5 Safe installation 5.1 Preliminary remarks 5.2 Installation of the modules 5.3 Installation of the roofing frames 6 Special case: Installation in steps 7 Commissioning of the system 8 Maintenance and cleaning 9 Warranty and guarantee 10 Disclaimer 11 Electrical parameters and design features... -
Page 4: Notes On This Guide
This guide is part of the product. It is applicable only to S-Class Integration/S-Class Integration Deluxe so- For the electrical connection, HUBER+SUHNER prefabri- lar modules by Centrosolar AG. Please pay special atten- cated connectors are used. tion to the notes on the safe use of the system. Centroso- lar is not liable for any damage resulting from disregarding this guide. -
Page 5: Dimensional Data And Dimensions
Installation guide 2.4 Dimensional data and dimensions ∆Wi Horiz. installation tolerance ∆Hi Vert. installation tolerance Module type S-Class Integration S-Class Integration Deluxe Generator width without roofing frame: Generator height without roofing frame: Module dimensions 1682 x 864 Generator width with roofing frame: W x H in mm Generator height with roofing frame: Installation dimen- Number of modules side by side... -
Page 6: Scope Of Supply
Installation guide 3 Scope of supply 3.1 Material and tools Scope of supply - material: SOLRIF - fixing bracket "Frame", "Field" and "Top" 4.5 x 35 Spax VA screws for fixing bracket, roofing frame sets: Basic set, top, right and left, alumi- num plastics sealing sheet Material to be provided on site: Module / support lathing (roofing laths / KVH 38 x 58 mm (quantities see dimensional information), original roofing laths* fastening screws for module / support lathing according to DIN 1052 (woodworking... -
Page 7: List Of Material
Installation guide 3.2 List of material 1 Aluminum plastics sealing sheet 2 Module laths 38 x 58 3 Fixing bracket "Frame" 4 Fixing bracket "Field" 5 Fixing bracket "Top" 6 Eaves ventilation comb 7 Roofing frame right 8 Roofing frame corner right 9 Roofing frame top 10 Roofing frame top "End piece"... - Page 8 Installation guide a - Fixing bracket "Field" (4) b - Fixing bracket "Frame" (3) c - Fixing bracket "Top" (5) d - Spacer block Screws = Spax VA 4.5 x 35 a - Fixing bracket left (12) b - Fixing bracket right (7) a - Fixing bracket corner left (11) b - Fixing bracket corner right (8)
- Page 9 Installation guide Roofing frame top (9) (left hand side feather edge to the top) Roofing frame top left (10) (left hand side feather edge to the bottom) a - Eaves ventilation comb (6) b - Valley sealing strip (13) c - Metal retainer (14) with 4.5 x 25 Spax screw...
-
Page 10: Module Connection - Circuitry Proposals
Installation guide 4 Module connection - circuitry proposals... -
Page 11: Safe Installation
Installation guide 5 Safe installation 5.1 Preliminary remarks The PV generator, or the generator area respectively, Direct-current connection (DC) must be integrated rectangularly into the roof (see "3- Since the module and string cabling will be inaccessible 4-5 rule"). Therefore, it must be parallel to eaves and after the installation of the PV in-roof system, the open- verge. - Page 12 Installation guide Rectangular integration of the PV generator The 3-4-5 rule is a good way to determine the right angle. Divide a cord by knots or marks into sections with a pro- portion of 3 to 4 to 5 (e.g. 3 meters, 4 meters, 5 meters). Stretch the cord on the roof as shown in the figure.
- Page 13 Installation guide Preparation work Preparation of the left hand side roofing frame 30 mm Preparation of the 38 x 58 mm module laths and screw fastening of the fixing brackets using 4.5 x 35 Spax screws a - Module lath "Frame" left b - Module lath "Frame"...
-
Page 14: Installation Of The Modules
Installation guide 5.2 Installation of the modules Figure 1 In order to screw fasten the roof lath (a) for the lower roof connection, a lath thickness corre- sponding to the existing roof lathing must be used. The distance between the upper edge of the roof tile and the lower edge of the roof lath should be 180-200 mm. - Page 15 Installation guide Figure 4 When installing with a horizontal orientation, make sure that the "right hand" roofing sheets sufficiently reach under the neighboring roof tiles. According to type, the left hand hanging cams of the roof tiles must be cut off, or the neighboring roof tiles must be trimmed.
- Page 16 Installation guide Figure 7 Move the module lath "Frame" horizontally so that that the fixing bracket rests in the groove of the left hand module frame (a). Then push up the module lath to the lower edge of the module (b).
- Page 17 Installation guide Figure 10 Take out the module again and finish the screw fastening of the module laths. Make sure that the module laths are straight. Fold the upper edge of the aluminum plastics sealing sheet at an angle of 45 degrees by approx. 1.5 cm to the front, pointing to the roof eaves.
- Page 18 Installation guide Figure 13 Pull down the module so that the lateral module frame slides into the fixing bracket (see figure 13b). Figure 14 Profile view with correct installation The two module laths are positioned and screw fastened in the same manner as for the first module. Any further modules of the lower row must be installed in the same manner.
- Page 19 Installation guide Figure 15 If the module laths extend over the existing roof lathing by more than 150 mm, an additional roof lath (a) must be provided for support. Figure 16 Placing the distance template (a) onto the outer edge of the upper module frame and position- ing and screw fastening of the fixing bracket "Frame".
- Page 20 Installation guide Figure 18 Using the distance template, screw fasten the fixing bracket "Field" (a) to the center of the module lath. Figure 19 Inserting the first module of the second row. Figure 20 Inserting the subsequent modules of the second row.
- Page 21 Installation guide Figure 21 Installation of the upper fixing bracket. Position the bracket flush with the rubber lip.
-
Page 22: Installation Of The Roofing Frames
Installation guide 5.3 Installation of the roofing frames Installation of the right roofing frames Figure 22 Sliding the lower right roofing frame under the module frame. Figure 23 Sliding the subsequent roofing frame under the module frame while overlapping the sheet below accordingly. Slightly bend up the seaboard (a) of the lower sheet and fold it back later. - Page 23 Installation guide Installation of the left roofing frames Figure 25 Inserting and pushing up of the lower left roofing frame under the fixing bracket above. Figure 26 Sliding back the roofing frame under the lower fixing bracket. Figure 27 Inserting the subsequent roofing frame under the fixing bracket above and pushing back the roofing frame under the lower fixing bracket.
- Page 24 Installation guide Figure 28 Fasten the left hand roofing frame on the roof lathing using metal retainers. Right hand corner and upper roofing frames Figure 29 Inserting the top right hand corner of the roofing frame. The lower edge of the sheet is aligned with the chamfer of the module frame (a). Bend up the seaboard of the lower sheet slightly and fold it back later.
- Page 25 Installation guide Figure 30a Detailed view of top right hand roofing frame Figure 31 Screw fastening of the pre-drilled cover plate through the upper free groove of the module frame using 4.8 x 9 self-tapping screws with gasket. Figure 32 Fastening of the top right hand roofing frame us- ing metal retainers to the roof lathing or added auxiliary lathing respectively (a).
- Page 26 Installation guide Figure 33 All subsequent upper cover plates must be slid into each other and fastened in the same man- ner and in the same order as above (cf. Figures 31 and 32). Left hand corner and upper roofing frames Figure 34 Sliding the left hand corner sheet into the top left hand roofing frame (end plate;...
- Page 27 Installation guide Figure 35 Lowering both plates. Bend up the seaboard of the lower sheet slightly and fold it back later. Figure 36 Screw fastening of the cover plate as shown in Figures 31 and 32. Figure 37 Screw fasten the corner sheet to the module lathing (4.8 x 19 mm self-tapping screw (a) with gasket) and replace the metal retainers.
- Page 28 Installation guide Figure 38 Gap-less, circumferential bonding of the eaves sealing strips. Figure 39 Final roofing with tiles. Figure 40 Fully installed system...
-
Page 29: Special Case: Installation In Steps
Installation guide 6 Special case: Installation in steps If the modules must be installed in steps (due to interruptions such as windows, chimneys, roof geometries such as hipped roofs or roof valleys, for example) special inner corners are available as roofing sheets. Figure a1 a - Roofing sheet inner corner "left"... - Page 30 Installation guide Figure a4 Fasten the roofing frame "left" at a distance of 40 mm from the sheet edge using self-tapping screws as shown in the figure. After installation of all lateral roofing frames "left", apply eaves sealing strips. 40 mm Figure a5 Carry out the following tasks as shown in figure a2.
-
Page 31: Commissioning Of The System
Installation guide 7 Commissioning of the system 8 Maintenance and cleaning The commissioning of a photovoltaic system is part of the This photovoltaic system requires extremely little mainte- proper and professional implementation and installation. It nance and servicing. must only be performed following a careful visual examina- However, do inspect the system regularly and perform tion and a professional electrical inspection. -
Page 32: Warranty And Guarantee
Photovoltaic systems consists of electrical and mechani- cal components, which are assembled to a complete sys- tem on site. CENTROSOLAR AG is not in a position to monitor the adherence to the information and instructions of this installation guide. Therefore CENTROSOLAR AG is... -
Page 33: Electrical Parameters And Design Features
Installation guide 11 Electrical parameters and design features Electrical Parameters S-Class Integration Deluxe monocrystalline S 190M50 Integration Deluxe S 195M50 Integration Deluxe Module type Power (P 24.15 Voltage (U 24.20 7.87 Current (I 8.06 30.50 Open Circuit Voltage (U 30.60 8.33 Short Circuit Current (I 8.51 -0.43 Coefficient of Performance (∆P -0.43 -0.36 Coefficient of Voltage (∆U -0.36 0.028 Coefficient of Current (∆I... - Page 34 Installation guide...
