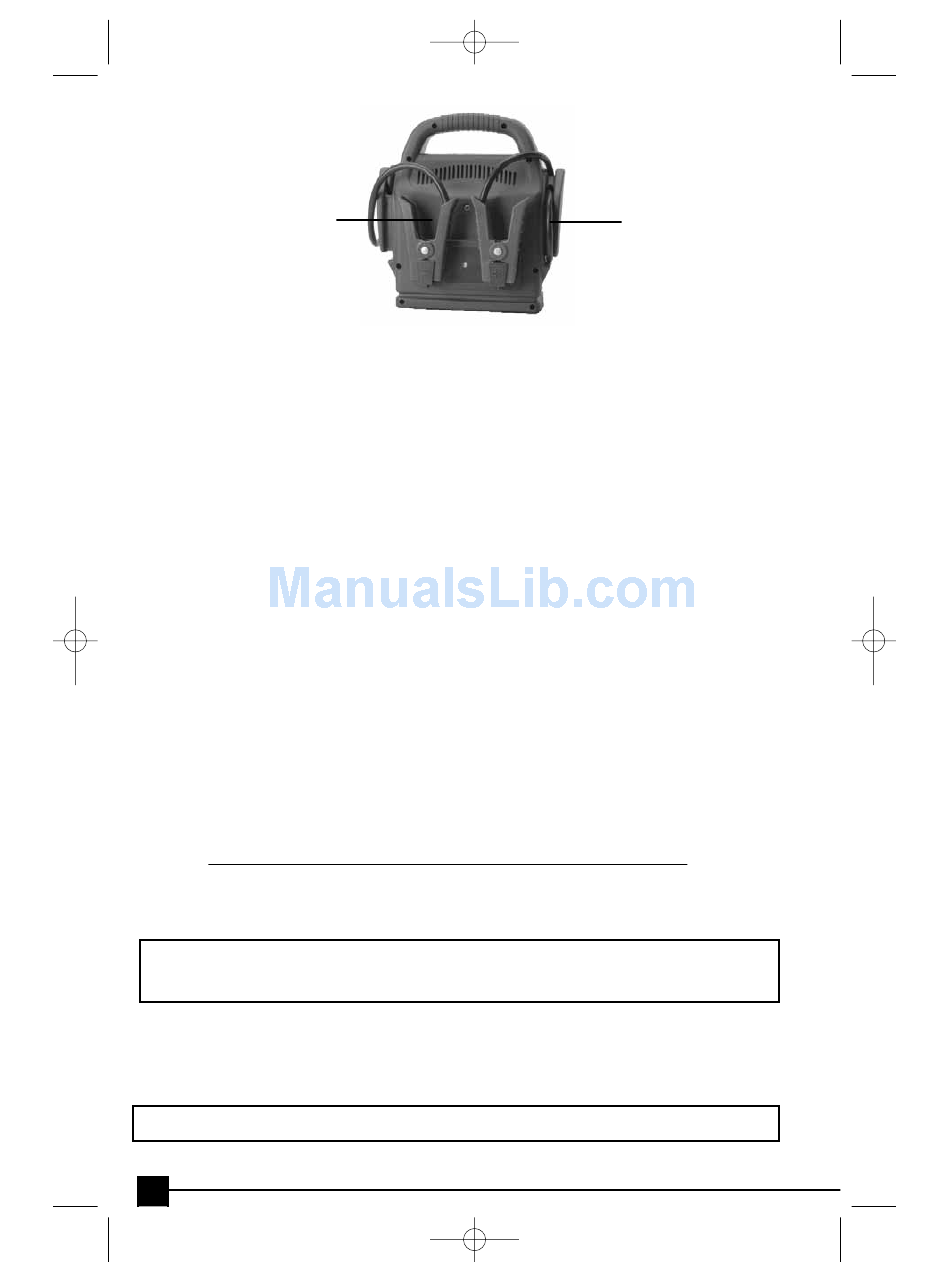

FIGURE 2
N
EG CABLE AND
(BLACK)
CLAMP
2 2 2 2 . . . . 3 3 3 3 J J J J U U U U M M M M P P P P - - - - S S S S T T T T A A A A R R R R T T T T P P P P R R R R O O O O C C C C E E E E D D D D U U U U R R R R E E E E
1. Turn OFF ignition and all accessories before making cable connections.
2. Make sure the Compact El i t e's power safety swi t ch i s turned OFF.
3. Observe jump-starting negative or positive ground system, as follows:
Negati v e ground (negati v e battery terminal connected to chassis) - most common.
4. Connect positive (+) red clamp to vehicle's posi t i v e battery terminal.
5. Connect negative (-) black clamp to chassis or a solid, non-moving, metal vehicle
component or chassis part, make sure cables are not in path of moving belts or fan.
6. Turn ON unit's power safety swi t ch.
7. Start vehicle (crank engine in 3 - 6 second bursts) if engine won't start within 6 seconds let
the Compact El i t e's internal battery cool 3 mi n utes before another attempt.
8. After vehi c l e starts, turn portabl e power safety swi t ch to OFF posi t i o n.
9. Leave engine running.
10. Remove clamps. First, disconnect the clamp connected to the engine or chassis, foll o wed
by the cl a mp connected to the battery posi t i v e terminal.
11. Carefully press negative (black) jumper cable wire into storage channel starting at end
away from the cl a mp.
12. Squeeze negative (black) clamp handles and clamp onto holster.
13. Carefully press positive (red) jumper cable wire into storage channel starti n g at end away
from the clamp.
14. Squeeze positive (red) clamp handles and clamp onto holster.
15. Recharge unit as soon as possible.
3.

USE AS A 12 VOLT DC PORTABLE POWER SUPPLY

This portabl e power source i s al s o for use wi t h al l 12VDC accessori e s equi p ped wi t h a mal e
accessory outlet plug and are rated up to 12 amps.
WARNING!
NEVER INSERT A CIGARETTE LIGHTER INTO ACCESSORY OUTLET.
CAUTION:
Make sure that the unit's power safety swi t ch i s ALWAYS in the off position
when using the unit's 12 vol t DC accessory outl e t
1. Li f t up the cover of the uni t 's 12 vol t DC outl e t.
2 Insert the 12 vol t DC pl u g from the appl i a nce i n to the 12 vol t accessory outlet on the unit.
DO NOT EXCEED A 12 AMP LOAD.
3. Switch on the appliance, as usual.
4. Periodically press the battery charge l e vel pushbutton to check battery status.
CAUTION:
DO NOT OPERATE APPLIANCES THAT DRAW MORE THAN 12 AMPS.
8
5/22/06 11:19 AM Page 8
P
OS CABLE AND
(RED)
CLAMP
