Displays2go DCKDMT Assembly Instructions

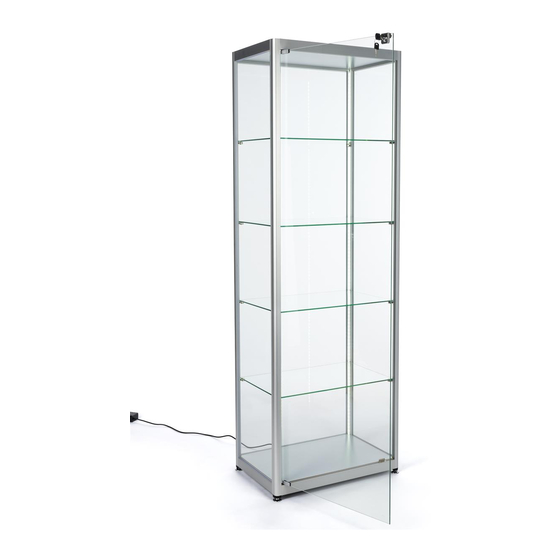

DCKDMT - Floor Standing Metal Display Case - Single Door
IMPORTANT SAFETY INFORMATION:
Read all instructions before start installing the unit. Displays2go is not responsible for any damage or injury
caused by incorrect installation, assembly or use. 2 people are required for assembling.
PARTS LIST
A. Back Panel
B. Front Panel with Lock
C. Side Panel
D. Glass Shelf
E. Power Adapter & Cords
F. Top and Bottom Panel
G. Plastic Cover
H. Peg
A B
D
F
TOOLS NEEDED
-Flat/Phillips Screwdriver
Scan QR code to visit the product page:
Ver. 08/18
X1
X1
X2
X4
X2
X1
X4
X4
C
E
G H
1. Place the back panel (A) on a soft work area. Slide 1 side
panel (C) into the groove from the top of the back panel (top
has no feet) on one side. See below:
Slowly slide it all the way to the bottom until it stops.
2. Slide the 2nd side glass panel (C) into the groove on the
other side of the back panel. Slowly slide it all the way
down as in Step 1.
1 of 2
