- Page 1 SELECT SERIES LS200 ALTERNATING PRESSURE / LOW AIR LOSS MATTRESS SYSTEM USER MANUAL LS200-INS-LAB-RevD19 Read this manual before operating your Mattress System. Save this manual for future use.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ................................3 INTENDED USE ................................3 CONTRAINDICATIONS FOR USE ...........................3 SYMBOL DEFINITION ..............................3 SAFETY PRECAUTIONS ..............................4 SIGNIFICANCE OF SAFETY STATEMENTS ......................4 DANGER: TO REDUCE THE RISK OF ELECTROCUTION ..................4 WARNING: TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE, OR PERSONAL INJURY ....4 NOTICES ...................................6 FEATURES ..................................7 PUMP AND MATTRESS SYSTEM ...........................7... -
Page 3: Introduction
INTRODUCTION Congratulations on your purchase of the Lumex LS200 Alternating Pressure / Low Air Loss Mattress System. This guide covers its use. The following pages will provide you with important safety, setup and operating instructions as well as maintenance and warranty information. Read this manual carefully before operating your Mattress System and refer to it as often as needed. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS WARNING: IMPORTANT: Before using this device, read and adhere to the following safety precautions and warnings. Failure to do so could result in serious personal injury or damage to your Mattress System. WARNING: Caregivers should be sure to discuss Safety Information, Risks and Precautions and Contraindications with the patient (or the patient’s legal guardians) and the patient’s family. Always consult your healthcare professional to determine safe methods most suitable for your individual abilities. Protect yourself, your attendant and Mattress System by having it serviced regularly. If you experience any malfunction, contact GF Tech Support at 1.770.368.4700 or your GF authorized distributor immediately, as a hazardous condition could result, causing personal injury or damage to your Mattress System. - Page 5 WARNING: Always use close supervision when this device is used by or near children, the physically challenged, or those who require close supervision. WARNING: If components are damaged or missing, contact your GF authorized distributor immediately. DO NOT use substitute parts. Use only Lumex replacement parts. The use of non-Lumex replacement parts could cause personal injury, property damage, and void the warranty. WARNING: Unauthorized modification of your Mattress System could cause personal injury, property damage, and void the warranty. WARNING: The Mattress System has a minimum weight capacity of 88 lb (40 kg) and maximum weight capacity of 350 lb (158 kg), EVENLY DISTRIBUTED. WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused by improper assembly or use of this product. WARNING: Check all parts for shipping damage before using. In case of damage, DO NOT USE the equipment. Contact the carrier or your GF authorized distributor for further instructions. WARNING: Keep open flame and heating devices away from the mattress system. WARNING: Avoid Fire Hazards – To minimize risk of fire, connect the power cord directly into a wall-mounted outlet. Do not use extension cords or multiple outlet strips. WARNING: No Smoking in Bed – Smoking in bed can be dangerous. To avoid the risk of fire, smoking in bed must never be allowed. WARNING: Keep sharp objects away from the mattress system. WARNING: If pain, irritation, numbness, swelling, or redness occur, discontinue use and contact a healthcare professional. WARNING: Position power cable and pump at the foot end of bed to prevent any risk of strangulation by cable. WARNING: Ensure this device is used with stable power or UPS. WARNING: This device should not be used adjacent to or stacked with other equipment. WARNING: Medical electrical equipment needs special precautions regarding EMC and needs to be installed according to the EMC information provided. WARNING: Patient Entrance / Exit – Caregiver should always aid patient in exiting the bed. Make sure a capable patient knows how to get out of bed safely (and, if necessary how to release the side rails) in case of fire or other emergency. WARNING: Brakes – Caster brakes should always be locked once the bed is in position. Verify wheels are locked before any patient transfer to or from the bed. WARNING: Bed Height – To minimize risk of falls or injury, the bed should always be in the lowest practical position when patient is unattended. WARNING: Head of Bed Elevation – Keep head of bed as low as possible to help prevent patient migration. WARNING: Bed Frame – Always use a standard healthcare bed frame with safeguards or protocols that may be appropriate. Frame and side rails must be properly sized relative to the mattress to help minimize any gaps that might entrap a patient’s head or body.
-
Page 6: Notices
WARNING: Side Rails / Patient Restraints – Whether and how to use side rails or restraints is a decision that should be based on each patient’s needs and should be made by the patient and the patient’s family, physician and caregivers, with facility protocols in mind. Caregivers should assess risks and benefits of side rail / restraint use (including entrapment and patient falls from bed) in conjunction with individual patient needs and should discuss use or non-use with patient and / or family. Consider not only the clinical and other needs of the patient but also risks of fatal or serious injury from falling out of bed and from patient entrapment in or around the side rails, restraints or other accessories. Consult a caregiver and carefully consider the use of bolsters, positioning aids or floor mats, especially with confused, restless or agitated patients. It is recommended that side rails (if used) be locked in the full upright position when the patient is unattended. Make sure a capable patient knows how to get out of bed safely (and, if necessary, how to release the side rails) in case of fire or other emergency. Monitor patients frequently to guard against patient entrapment. WARNING: To help prevent inadvertent bed exits or falls, ensure the distance between the top of side rails (if used) and top of mattress (without compression) is approximately 4.5 inches / 11.4 cm. Consider individual patient size, position (relative to the top of the side rail), and patient condition in assessing fall risk. WARNING: I.V. and Drainage Tubes – I.V. and drainage tubes should always have slack for Alternating Pressure and other patient movements. WARNING: Skin Care – Monitor skin conditions regularly and consider adjunct or alternative therapies for high acuity patients. Give extra attention to skin over any raised side bolster and to any other possible pressure points and locations where moisture or incontinence may occur or collect. Early intervention may be essential to preventing skin breakdown. WARNING: Fluids – Avoid spilling fluids on pump controls. If spills do occur, unplug unit immediately and clean fluid from pump wearing rubber gloves while it is unplugged to avoid any possibility of shock. Once fluid is removed, check operation of components in area of spill. Fluids remaining on controls can cause corrosion, which may cause components to fail or operate erratically, possibly producing potential hazards for patient and staff. WARNING: Power Cord – Ensure power cord is kept free from all pinch points and moving parts and is not trapped under casters. Improper handling of the power cord can cause damage to the cord, which may possibly produce risk of fire or electric shock. WARNING: General Protocols – Follow all applicable safety rules and institution protocols concerning patient and caregiver safety. WARNING: Waste Disposal – At the end of this product’s useful life, dispose of it in accordance with local requirements, or contact the manufacturer for advice. WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov. WARNING: GF Health Products, Inc. specifically disclaims responsibility for any bodily injury or property damage which may occur during any use which does not comply with federal, state or local laws or ordinances. -
Page 7: Features
FEATURES PUMP AND MATTRESS SYSTEM Description The Lumex LS200 Alternating Pressure / Low Air Loss Mattress System is a specialized mattress replacement unit that utilizes low air loss technology with specialized mattress design that provides pressure management for the treatment of pressure ulcers. The 2:1 alternating function also provides active prevention for pressure relief, especially for those in acute care and long term care settings (the cells inflate and deflate in a 2:1 cycle, meaning of the body is always... -
Page 8: Handling Procedures: Unpacking, Storage, And Waste Disposal
HANDLING PROCEDURES: UNPACKING, STORAGE, AND WASTE DISPOSAL UNPACKING 1. Check for any obvious damage to the carton or its contents. If damage is evident, notify the carrier or your GF authorized distributor. 2. Open shipping container. s NOTICE: Do not use sharp instruments to open boxes. Damage to mattress could result. 3. Remove contents. 4. -
Page 9: Setup
SETUP WARNING: Always use a standard healthcare bed frame with appropriate safeguards and protocols. Frame and side rails must be properly sized relative to the mattress to help minimize any gaps that might entrap a patient’s head or body. MATTRESS INSTALLATION 1. Ensure bed is level and brakes are locked. 2. Remove existing mattress from bed frame. 3. Replace the mattress with the mattress replacement system. Orient mattress so that the air tube is at the foot of the bed. If re-installing the Select Mattress System onto a new frame or for a new patient, check mattress surface for staining and soiling;... -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS PATIENT PLACEMENT AND NURSING CARE Read all sections of this manual before patient placement. Carefully review the Contraindications, Safety Information, and Risks and Precautions sections prior to placing a patient on any Mattress System. When transferring patient, follow all applicable safety rules and institution protocols. OPERATION Skin Care •... -
Page 11: Static Mode

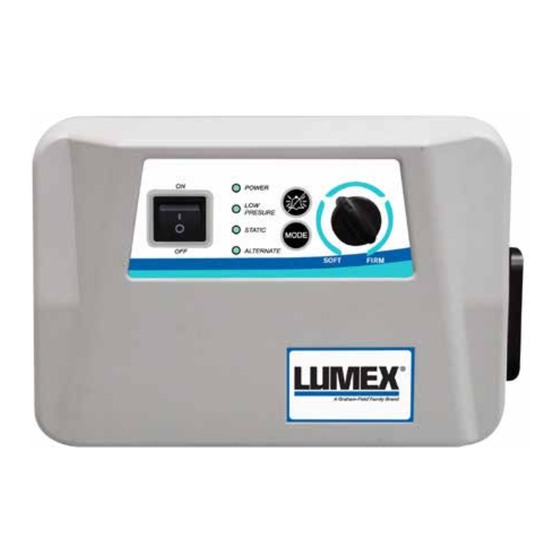

MODE LED (STATIC / ALTERNATE) MODE Button Pressure Adjustment Knob Pump Front Panel 2. Press and hold the pump front panel MODE button, shown above, for one second to select therapy mode. The selected MODE LED will now be illuminated; default mode is ALTERNATE. 3. -
Page 12: Alternate Mode
ALTERNATE mode MODE LED (STATIC / ALTERNATE) MODE Button Pressure Adjustment Knob Pump Front Panel Press and hold the MODE button, shown above, for one second to select ALTERNATE mode and enable the two-one alternating function. Alternating time is pre-set and not adjustable. The cycle time, shown above, is twelve minutes: 1) four minutes deflate “A”... -
Page 13: Low Pressure Alarm
Low pressure alarm ALARM RESET Button Pump Front Panel The pump is equipped with an audible low pressure alarm which enables the pump to audibly alert the caregiver to a low pressure issue with the mattress system. The low pressure alarm can be muted for twenty minutes by pressing the pump front panel ALARM RESET button, shown above. -
Page 14: Care And Maintenance
CARE AND MAINTENANCE Proper care and maintenance are essential to keeping your Select Mattress System in a safe operating condition. In addition to inspecting the unit before each use, periodic maintenance checks should be done. It is very important to have a strict cross infection, cleaning and disinfection policy in line with current infection control guidelines. -
Page 15: Cleaning And Disinfection Of The Pump
Cleaning and Disinfection of the Pump WARNING: Ensure pump power is off and unplug the power cord from the wall outlet before cleaning the pump. s NOTICE: Do not flood any part of the pump with cleaning solution. Do not immerse the pump in liquid. s NOTICE: Avoid spilling any liquid on pump. If spills do occur, clean fluid from pump wearing rubber gloves or while unit is unplugged to avoid any possibility of shock. Once liquid is removed, check operation of components in area of spill. Any liquid remaining on pump can cause corrosion, which may cause components to fail or operate erratically, possibly producing potential hazards for patient and staff. Clean the pump weekly using a clean, damp soft cloth and mild detergent. 1. Wipe all controls, chassis and hose fittings with a damp cloth and a mild detergent. 2. -
Page 16: Troubleshooting
TROUBLESHOOTING WARNING: Service and repair of the Select Mattress System MUST be performed by qualified personnel ONLY. The following list of problems, their causes and solutions will assist you in determining what may be causing your Select Air Mattress not to function as designed. If a problem occurs which is not listed below, contact GF Tech Support at 1.770.368.4700 for further information. Do not attempt to repair components or parts, as this may invalidate your warranty or cause further problems that may result in patient injury. -
Page 17: Specifications
SPECIFICATIONS MATTRESS OVERLAY (Applied Part) Model Description Specification LS200M Dimensions (L x W x H) 80 in. x 36 in. x 8 in. (203.2 cm x 91.4 cm x 20.3 cm) Weight 20 lb (9.1 kg) Top Cover Material Navy Nylon coated with PU + Single Quilting Bottom Cover Material Black polyester laminated with PVC PUMP... -
Page 18: 10 Limited Warranty
10 LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the Original Purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. -
Page 19: 11 Emc Related Notification
11 EMC RELATED NOTIFICATION WARNING: Medical electrical equipment needs special precautions regarding EMC and needs to be installed according to the EMC information provided. Careful consideration of this information is essential when stacking or collocating equipment and when routing cables and accessories. WARNING: RF mobile communications equipment can affect medical electrical equipment. Manufacturer’s declaration-electromagnetic emissions The LS200 is intended for use in the electromagnetic environment (for home and professional healthcare) specified below. The customer or the user of the LS200 should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment-guidance... - Page 20 Manufacturer’s declaration-electromagnetic immunity The LS200 is intended for use in the electromagnetic environment (for home and professional healthcare) specified below. The customer or the user of the LS200 should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level Electromagnetic...
- Page 21 Manufacturer’s declaration-electromagnetic immunity The LS200 is intended for use in the electromagnetic environment (for home and professional healthcare) specified below. The customer or the user of the LS200 should assure that it is used in such and environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance...
- Page 22 Manufacturer’s declaration-electromagnetic immunity Test specifications for ENCLOSURE PORT IMMUNITY to RF wireless communications equipment The LS200 is intended for use in the electromagnetic environment (for home and professional healthcare) specified below. The customer or the user of the LS200 should assure that it is used in such an environment. Compliance LEVEL Test...
-
Page 23: 12 Index
12 INDEX Patient Placement 10 Pump 7 Air filter, replace 15 Pump and mattress system 7 ALTERNATE function 12 Pump, cleaning and disinfection 15 Assembly instructions 9 Pump front panel 7 Pump installation 9 Care and maintenance 14 Pump rear view 7 CAUTION statement, significance 4 Cleaning 14 Safety precautions 4... - Page 24 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com © 2017, GF Health Products, Inc. All Rights Reserved. Graham-Field and Lumex are trademarks of GF Health Products, Inc., One Graham-Field Way, Atlanta GA 30340-3140 GF Health Products, Inc.
