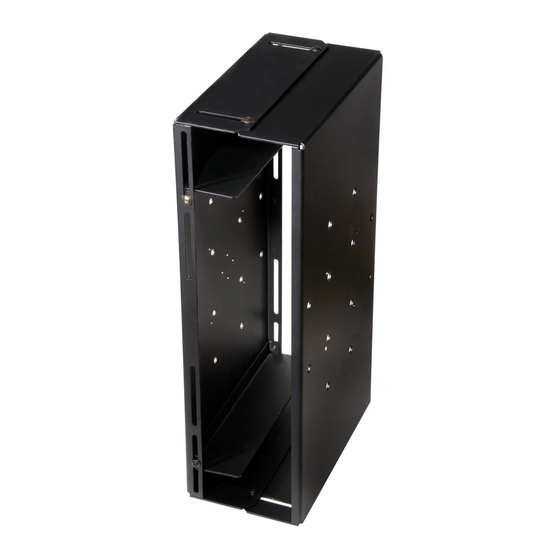

Plasma pc mount bracket
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Installation and Assembly - Plasma PC Mount Bracket
Note: Read instruction sheet before you start installation and assembly.
Before you start check the parts list to insure all of the parts shown are included.

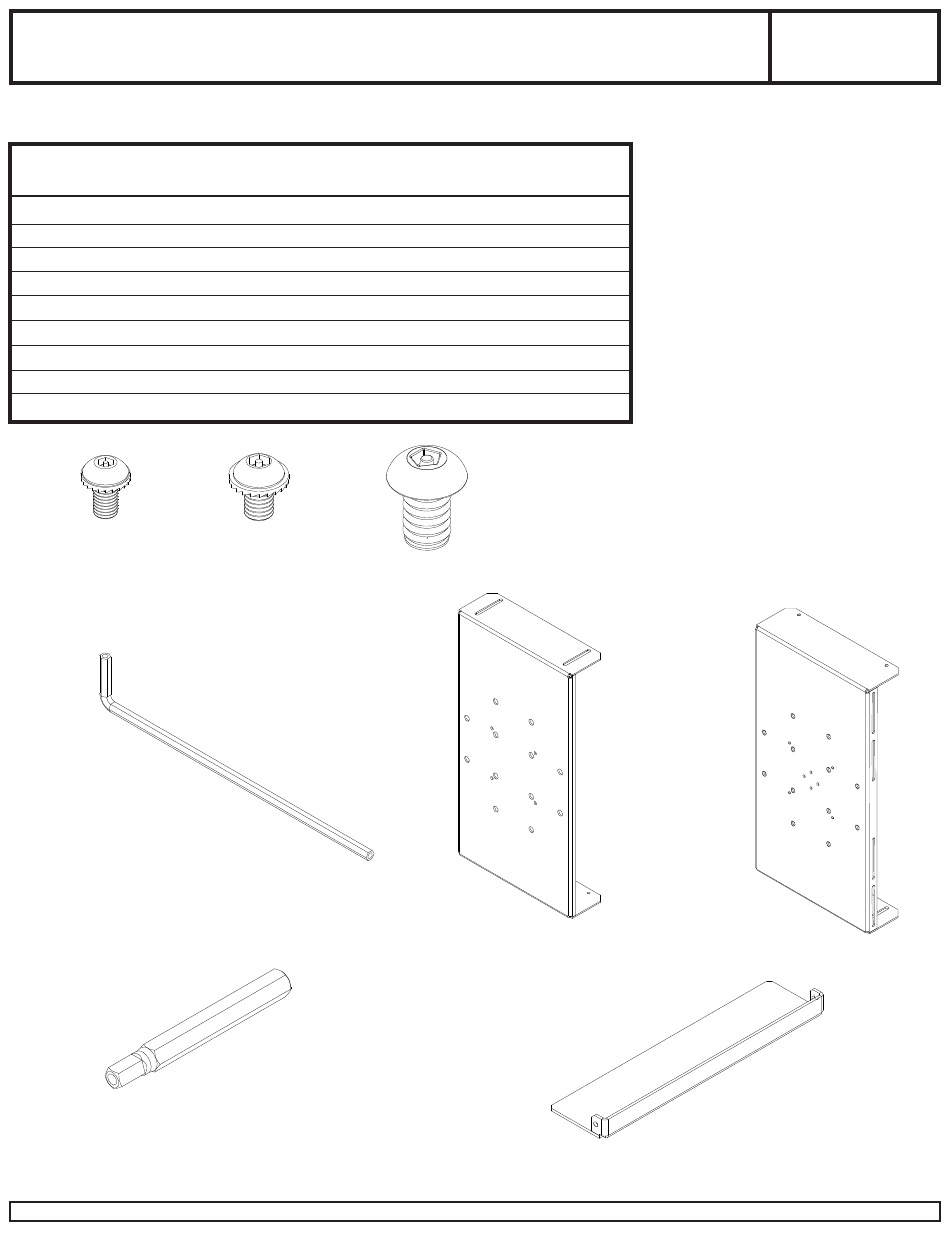

Parts List

Description
A mount adapter
B mount attachment bracket
C clamp bracket
D M5 x 10 mm socket pin serrated washer head screw
E
M6 x 10 mm socket pin serrated washer head screw
F
M10 x 15 mm penta-pin screw
G 4 mm security allen wrench
H penta-pin tool
I
rubber pad (not shown)
D
E
G
Visit the Peerless Web Site at www.peerlessmounts.com
F
A
H
Qty.
Part #
1
201-1196
1
201-1198
2
201-1199
8
510-1126
4
510-1066
8
520-9263
1
560-9646
1
520-9260
12
590-1159
C
1 of 4
For customer service call 1-800-729-0307 or 708-865-8870.
Model: DS334
B
ISSUED: 03-05-09 SHEET #: 125-9049-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS334 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PEERLESS DS334

Summary of Contents for PEERLESS DS334

  • Page 1 M10 x 15 mm penta-pin screw 520-9263 G 4 mm security allen wrench 560-9646 H penta-pin tool 520-9260 rubber pad (not shown) 590-1159 1 of 4 ISSUED: 03-05-09 SHEET #: 125-9049-1 Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
  • Page 2 (D). Leave M5 x 10 mm socket pin serrated washer head screws (D) loose. Place four rubber pads (I) on clamp brackets (C) as shown. 2 of 4 ISSUED: 03-05-09 SHEET #: 125-9049-1 Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
  • Page 3 Place computer between clamping brackets (C). Attach mount adapter (A) to mount attachment bracket (B) using four M6 x 10 mm socket pin serrated washer head screws (E). Tighten all fasteners. COMPUTER 3 of 4 ISSUED: 03-05-09 SHEET #: 125-9049-1 Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
  • Page 4 Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870. © 2009 Peerless Industries, Inc. All rights reserved. Peerless is a registered trademark of Peerless Industries, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.
