  • Page 1 WatchGuard Firebox ® M4600 Hardware Guide CL4AE24...
  • Page 2 Copyright© 1998–2016 WatchGuard Technologies, Inc. All rights reserved. WatchGuard, the WatchGuard logo, LiveSecurity, and any other mark listed as a trademark in the “Terms of Use” portion of the WatchGuard Web site that is used herein are either registered trademarks or trademarks of WatchGuard Technologies, Inc.

  • Page 3: Table Of Contents

    Running H/F 2 Chapter 1 Hardware Specifications ......................1 Fireware OS ................................1 Package Contents ..............................2 About Your Hardware............................2 Environmental Requirements..........................3 Hardware Description............................4 Restore Factory-Default Settings........................10 Safety Notices............................... 11 Hinweise Zur Sicherheit............................ 12 Avis de sécurité ..............................13 Aviso De Seguridad ............................
  • Page 4 Running H/F 2 WatchGuard Firebox M4600...

  • Page 5: Chapter 1 Hardware Specifications

    WatchGuard. Fireware OS The Firebox M4600 uses WatchGuard’s next generation UTM OS — Fireware® OS. The Firebox includes Fireware and delivers exceptional protection against today's sophisticated threats to make sure that your business stays connected. For more information on the features of Fireware OS, see the current Fireware Help.

  • Page 6: Package Contents

    2 USB 3.0 1 RJ45 RS232 console port This specification describes the interfaces that are on the Firebox M4600 as shipped. The Firebox also has two slots where you can install additional interface modules. The supported interface modules are described in the Hardware Description section.

  • Page 7: Environmental Requirements

    Hardware Specifications Environmental Requirements To safely install your Firebox, we recommend that you:  Install it in a network rack  Put it in a secure area, such as a locked room, to prevent unauthorized access  Connect it to a conditioned power supply to prevent damage from sudden power changes Other M4600 environmental requirements: Operating temperature 0 - 40°C...

  • Page 8: Hardware Description

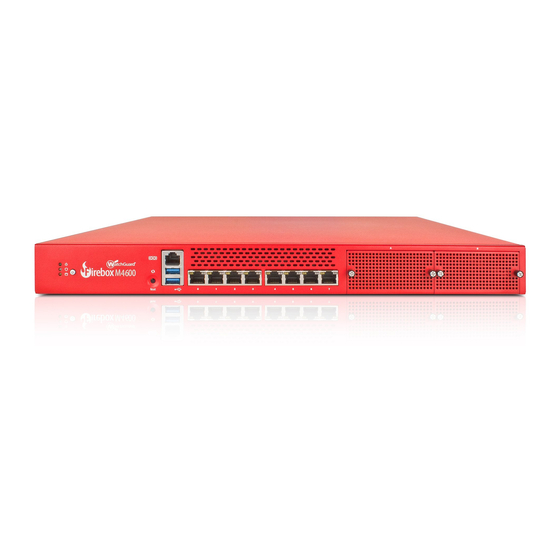

    Hardware Specifications Hardware Description Front View Firebox M4600 front view: Left front panel detail: Buttons and Indicators Power ( The power indicator on the left front of the Firebox is green when the Firebox is powered on. Arm/Disarm ( When the Firebox is armed and ready to pass traffic, this indicator is green. When the Firebox is powered on, but not ready to pass traffic, this indicator is red.
  • Page 9 Hardware Specifications Built-In Interfaces The Firebox M4600 has 8 built-in network interfaces, two USB interfaces, and one serial console port. Dual USB interfaces Connect a USB storage device to use for USB backup and restore, or to store a support snapshot.
  • Page 10 Interface Status Activity (left) Yellow, blinks Power on, network activity Not lit Power off, no connections Connection (right) Yellow Link at 1000 Mbps Green Link at 100 Mbps Not lit Link at 10 Mbps, or no link WatchGuard Firebox M4600...
  • Page 11 Not lit Power off, no connections Connection (right) Orange Link at 1000 Mbps Not lit No link You can purchase compatible SFP transceivers from an authorized WatchGuard reseller: SFP multi-mode transceivers (1000Base-SX, 850nm) FINISAR FTLF8519P3BNL WatchGuard SKU WG8585 Hardware Guide...
  • Page 12 No link Activity (right) Orange, blinks Power on, network activity Not lit Power off, no connections You can purchase compatible SFP+ transceivers from an authorized WatchGuard reseller: SFP+ multi-mode transceiver (10GBase-SR/1000Base-SX 850 nm) FINISAR FTLX8571D3BCV WatchGuard SKU WG8583 WatchGuard Firebox M4600...
  • Page 13 Controls the power supplied to the device. The power switch activates both power supplies. Replaceable power supplies There are two power supplies on the Firebox M4600, each with a power indicator at the top. For instructions to install a replacement power supply, see “Power Supply Installation” on page 22...

  • Page 14: Restore Factory-Default Settings

    7. Press and hold the Power button on the front of the device for five seconds to power off the device. 8. Briefly press the Power button on the front of the device to power it on. WatchGuard Firebox M4600...

  • Page 15: Safety Notices

    Hardware Specifications Safety Notices All WatchGuard products are designed and tested to meet strict safety requirements. These requirements include product safety approvals and other global compliance standards. Read these instructions carefully before you operate the product, and refer to them as needed for continued safe operation of your product.

  • Page 16: Hinweise Zur Sicherheit

     Die in dem Gerät verwendete Lithium-Batterie kann nicht vom Verbraucher getauscht werden. Bei Bedarf senden Sie das Gerät an einen WatchGuard Autorisierten Service-Center, um diesen Tausch mit einer vom Hersteller empfohlenen gleichen oder eines gleichwertigen Typs durchführen zu lassen.

  • Page 17: Avis De Sécurité

    Hardware Specifications Avis de sécurité Tous les produits de WatchGuard sont conçus et testés pour répondre à des exigences de sécurité strictes. Ces exigences incluent l'homologation de la sécurité du produit et la conformité à d'autres normes globales. Lisez ces instructions avec attention avant de mettre en route l'appareil et reportez-vous-y au besoin pour assurer une utilisation sûre de l'appareil.

  • Page 18: Aviso De Seguridad

    La batería de litio utilizada en el dispositivo de seguridad no podrá ser sustituido por el usuario. Devuelva el aparato a un centro de servicio autorizado de WatchGuard para el reemplazo con el mismo tipo o equivalente recomendada por el fabricante. Si , por cualquier razón , la batería o la seguridad del aparato se debe desechar, hágalo siguiendo las instrucciones del fabricante de la batería.

  • Page 19: Chapter 2 Hardware Installation

    Hardware Installation Your Firebox ships with a rack mount kit. It also supports user-installable components. Use the instructions in this chapter to safely install your Firebox and any optional components. This chapter includes instructions for:  Rack mount installation  Interface module installation ...

  • Page 20: Rack Mount Installation

    Hardware Installation Rack Mount Installation Each Firebox M4600 ships with rack mount system. The rack mount system consists of:  4 L-shaped brackets  2 sliding rails, which can be separated into inner and outer rails o The inner rail has an extension safety lock tab o The outer rail includes a slide to extend its length.
  • Page 21 Hardware Installation Precautions When you install the Firebox in a rack, consider these factors: Elevated Operating Ambient Temperature If you install the device in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Make sure the ambient temperature of the rack environment is within the certified operating range specified in this Hardware Guide.
  • Page 22 3. Do not fully tighten the nuts yet. 4. The outer rail includes a center rail that slides back and forth. Slide the center rail to expose the screw holes at the other end of the rail. WatchGuard Firebox M4600...
  • Page 23 Hardware Installation 5. Use two flat head screws and two nuts to connect a second L-shaped bracket to the other end of the outer rail through any two of the four holes at the end of the outer rail. Position each nut on the outside of the bracket, and attach a screw from the inside of the outer rail through the bracket..
  • Page 24 4. Continue to slide the device out until the second safety locks catch on each side. 5. Press down the safety locks located on the inside of each center rail while you pull the device farther out. Press down to unlock Slide the device out of the rack. WatchGuard Firebox M4600...

  • Page 25: Interface Module Installation

    Hardware Installation Interface Module Installation You can install two additional interface modules in slots A and B of your Firebox. The supported interface modules are described in detail in the Hardware Specifications chapter. Interface Modules are not hot-swappable. To avoid damage to the system, you must disconnect the Firebox from all power sources before you install or remove an interface module.

  • Page 26: Power Supply Installation

    Hardware Installation Power Supply Installation The Firebox M4600 has two redundant hot-swappable power supplies. If a power supply fails, you can replace it while the Firebox is powered by the other power supply. Firebox M4600 Power Supplies power Alarm reset...

  • Page 27: Legal And Regulatory Information

    WatchGuard Technologies, Inc. (“WatchGuard”) and you agree as set forth below or on the reverse side of this card, as applicable: 1.
  • Page 28 WITH REGARD TO ANY PRODUCT WILL IN NO EVENT EXCEED THE PURCHASE PRICE PAID BY YOU FOR SUCH PRODUCT. THIS SHALL BE TRUE EVEN IN THE EVENT OF THE FAILURE OF ANY AGREED REMEDY. IN NO EVENT WILL WATCHGUARD BE...

  • Page 29: Declaration Of Conformity

    DECLARATION OF CONFORMITY WatchGuard Technologies, Inc. 505 Fifth Ave. S., Suite 500 Seattle, WA 98104-3892 USA WatchGuard Technologies Inc. hereby declares that the product(s) listed below conform to the European Union directives and standards identified in this declaration. Product(s): WatchGuard Models: Firebox M4600...

  • Page 30: Ce Notice

    Legal and Regulatory Information CE Notice The CE symbol on your WatchGuard Technologies equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU). FCC Certification Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 31: Japan Vcci Notice (Class A Ite)

    Legal and Regulatory Information Japan VCCI Notice (Class A ITE) VCCI Notice VCCI Notice こ の装置は、 ク ラ ス A 情報技術装置です。 こ の装置 This is a Class A product based on the standard of the を家庭環境で使用する と 電波妨害を引き起こ す こ と Voluntary Control Council for interference by があ...

  • Page 32: Rohs Statement

    WEEE statutes, and that the recovery of our product per the specific EU country legislative requirements is seamless for our product’s end users. If you have a WatchGuard product that is at its end of life and needs to be disposed of, please contact WatchGuard Customer Care Department at: U.S. Customers: 877.232.3531 International Customers: +1.206.613.0456...

  • Page 33: Licensing

    In accordance with the regulations, the products of WatchGuard do not need to be registered for the following reasons: 1. WatchGuard does not import more than 1 metric ton per year of a substance as defined by REACH. 2. WatchGuard products are non-chemical products that are not designed to release any substance under normal and reasonably predictable application.
  • Page 34 Legal and Regulatory Information WatchGuard Firebox M4600...
