Firebox M4800 Hardware Guide
WatchGuard security appliances deliver unparalleled unified threat management, superior performance,
ease of use, and value. Powerful subscription-based security services deliver in-depth defenses against
advanced malware, ransomware, botnets, trojans, viruses, drive-by downloads, phishing and much more.
This guide introduces the Firebox M4800, a RoHS-compliant (lead-free) hardware product offered by
WatchGuard. The Firebox M4800 consolidates critical network and security functions into a single,
centrally managed device, and is ideal as the 'hub' for distributed, hub-and-spoke type deployment
scenarios.
Fireware OS
The Firebox M4800 device uses WatchGuard's next generation UTM OS — Fireware OS. Each Firebox
M4800 device includes Fireware OS and delivers exceptional protection against today's sophisticated
threats to make sure that your business stays connected. For more information on the features of
Fireware OS, see
About Your Hardware
Hardware Specifications
This table shows the hardware specifications for the WatchGuard Firebox M4800.
Processor
Storage
Memory: DDR4
Power Supply
Dimensions
Weight
Interface Specifications
https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Hardware-Guides/firebox-m4800-hardware-guide.html
Fireware
Help.
Intel Coffee Lake Xeon E-2176G
256 GB Solid State HDD
16 GB
Dual power supplies
300W
100-240VAC/5-3A/50-60Hz
D = 46.8 cm (18.42")
W = 43.1 cm (16.96")
H = 4.4 cm (1.73")
8 kg (17.63 lbs)
Firebox M4800 Hardware Guide
1/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Firebox M4800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Watchguard Firebox M4800

Summary of Contents for Watchguard Firebox M4800

  • Page 1 Fireware OS The Firebox M4800 device uses WatchGuard’s next generation UTM OS — Fireware OS. Each Firebox M4800 device includes Fireware OS and delivers exceptional protection against today's sophisticated threats to make sure that your business stays connected. For more information on the features of...

  • Page 2: Environmental Requirements

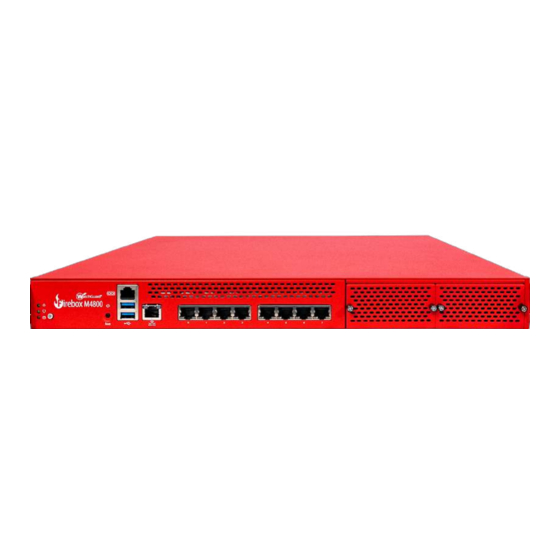

    2.2.2021 Firebox M4800 Hardware Guide This table shows the interface specifications for the WatchGuard M4800 as shipped. Management Interface 1x 1000 Base TX (10/100/1000Mbps), RJ45 connector Network Interfaces 8x 1000 Base TX (10/100/1000Mbps), RJ45 connector I/O Interfaces 2 USB 3.0 1 RJ45 RS232 console port The Firebox also has two slots where you can install additional interface modules.

  • Page 3: Buttons And Indicators

    To reset the device, see Restore Factory Default Settings Built-in Interfaces The Firebox M4800 has eight built-in network interfaces, a management interface, two USB interfaces, and one serial console port. Dual USB interfaces The device includes two USB interfaces. Connect a USB storage device for USB backup and restore, or to store a support snapshot.

  • Page 4: Interface Modules

    WatchGuard Firebox M 8 Port SFP Fiber Module — WatchGuard SKU WG8593 WatchGuard Firebox M 4 Port 10 Gb SFP+ Fiber Module — WatchGuard SKU WG8594 WatchGuard Firebox M 2 Port 40 Gb QSFP+ Fiber Module — WatchGuard SKU WG8023 For each interface module, ports are numbered from 0-7, 0-3, or 0-1.
  • Page 5 WatchGuard standard auto-sensing AC power supply. Replaceable power supplies There are two power supplies on the Firebox M4800, each with a power indicator at the top. For instructions to install a replacement power supply, see Power Supply Installation.

  • Page 6: Restore Factory Default Settings

    2.2.2021 Firebox M4800 Hardware Guide Restore Factory Default Settings If you ever need to, you can restore your Firebox to its factory-default settings. For example, if you do not know the administrator account passphrase or you want to start over with a new configuration, you can reset your device.
  • Page 7 2.2.2021 Firebox M4800 Hardware Guide 10 small screws and 8 large screws Front ear bracket kit 2 front ear brackets 6 small screws and 2 large screws Precautions When you install the device in a rack, make sure you consider these factors:...

  • Page 8: Interface Module Installation

    2.2.2021 Firebox M4800 Hardware Guide Make sure you connect the device to the power supply circuit in such a way that there is no overloading of the circuits, and no impact on overcurrent protection and supply wiring. Reliable Grounding Make sure all rack-mounted equipment is correctly grounded. For example, make sure you use power strips instead of direct connections to the branch circuit.
  • Page 9 6. Press firmly on the face of the power supply until it is flush with the back of the Firebox. If the replacement is successful, the power indicator light for the new power supply is green. You can purchase a replacement power supply from an authorized WatchGuard reseller. WatchGuard Firebox M4800 Hot Swap Power Supply — WatchGuard SKU WG9012 https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Hardware-Guides/firebox-m4800-hardware-guide.html...

  • Page 10: Product Safety Certification

    警示 本電池如果更換不正確會有爆炸的危險，請勿自行更換電池 Disclaimer WatchGuard shall not be held liable if the end user alters, modifies, or repairs any WatchGuard hardware appliance. Hinweise Zur Sicherheit Alle WatchGuard Produkte werden entwickelt und getestet, um strenge Sicherheitsanforderungen zu erfüllen.

  • Page 11: Avis De Sécurité

    Sicherheitshinweise. Avis de sécurité Tous les produits de WatchGuard sont conçus et testés pour répondre à des exigences de sécurité strictes. Ces exigences incluent l'homologation de la sécurité du produit et la conformité à d'autres normes globales. Lisez ces instructions avec attention avant de mettre en route l'appareil et reportez- vous-y au besoin pour assurer une utilisation sûre de l'appareil.

  • Page 12: Rohs Statement

    WEEE statutes, and that the recovery of our product per the specific EU country legislative requirements is seamless for our product’s end users. If you have a WatchGuard product that is at its end of life and needs to be disposed of, please contact WatchGuard Customer Care Department at: U.S.

  • Page 13: Taiwan Rohs

    WatchGuard do not need to be registered for the following reasons: WatchGuard does not import more than 1 metric ton per year of a substance as defined by REACH. WatchGuard products are non-chemical products that are not designed to release any substance under normal and reasonably predictable application.

  • Page 14: Limited Hardware Warranty

    WatchGuard Technologies, Inc. (“WatchGuard”) and you agree as set forth below or on the reverse side of this card, as applicable. 1. LIMITED WARRANTY. WatchGuard warrants that upon delivery and for one (1) year thereafter (the “Warranty Period”): (a) the Product will be free from material defects in materials and...
  • Page 15 2. REMEDIES. If any Product does not comply with the WatchGuard warranties set forth in Section 1 above, WatchGuard will, following the receipt of the product you claim is defective and at its option, either (a) repair the Product, or (b) replace the Product with a like or similar product;...

  • Page 16: Declaration Of Conformity

    2.2.2021 Firebox M4800 Hardware Guide the Product, and supersedes any prior purchase order, communications, advertising or representations concerning the Product AND BY USING THE PRODUCT YOU AGREE TO THESE TERMS. IF THE PRODUCT IS BEING USED BY AN ENTITY, THE INDIVIDUAL INDICATING...
  • Page 17 2.2.2021 Firebox M4800 Hardware Guide Give Us Feedback      Get Support      All Product Documentation      Technical Search ● ● ● https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Hardware-Guides/firebox-m4800-hardware-guide.html 17/18...
  • Page 18 2.2.2021 Firebox M4800 Hardware Guide © 2021 WatchGuard Technologies, Inc. All rights reserved. WatchGuard and the WatchGuard logo are registered trademarks or trademarks of WatchGuard Technologies in the United States and/or other countries. All other tradenames are the property of their respective owners.
