finder 1C.51 Manual

Digital touch chronothermostat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SERIA 1C
Termostat programowany tygodniowo
Programowalny termostat pokojowy
•
Ekran dotykowy z łatwym programowaniem
•
Możliwość programowania za pomocą
smartfonów z opcją komunikacji NFC
•
Jasne podświetlenie
•
Oszczędność energii dzięki opcjom ECO1 i
ECO2, nadzorowanie pracy i PIN
•
3 programowalne progi temperatury
•
Minimalny programowalny okres wynosi
30 minut
•
Funkcje: ochrona przed zamarzaniem, funkcja
wykrywania zatrzymania pompy i funkcje
kalibracji
•
Przełącznik LATO/ZIMA
•
Dwupoziomowa ochrona - prosta blokada
ekranu lub trzycyfrowy PIN
•
Programowanie przez NFC za pomocą
specjalnej aplikacji
•
Kalendarz z latami przestępnymi i czasem
letnim i zimowym
•
Wizualne i dźwiękowe sygnalizowanie
przyciśnięcia przycisków i wprowadzania
komend
•
Kompatybilne z trójmodułowym systemem
osprzętu elektroinstalacyjnego (np. typ 503)
N
L
Schemat łączeniowy
Kolor
Biały RAL 9010
Metaliczny antracyt
Dane techniczne
Czujnik
Zasilanie
Ilość zestyków
Prąd znamionowy
Zakres wyświetlacza
Zakres temperatury
Histereza
Szybkość zmiany temperatury
Automatyczny tryb nocny
Niezależnie nastawiane wartości temperatur
Blokada termostatu
Stopień ochrony
Montaż
Rozdzielczość wyświetlacza
Dokładność przy +20 °C
Ochrona przed zamarzaniem
Tygodniowo/dziennie
Minimalny programowalny okres
Funkcja oszczędzania energii
Przyciski
Nadzorowanie pracy
Podświetlany wyświetlacz
Komunikacja
Programowanie przez aplikację
Certyfikaty i dopuszczenia (wg typu)
1C.81
Programowany tygodniowo
1C.81.9.003.0107
1C.81.9.003.2107
NTC
2 baterie 1.5 V AAA
1 P
5 A/250 V AC
0...+50 °C
+5...+37 °C
0.1...0.9 °C
—
—
3
Kod
IP 20
Powierzchnia
0.1 °C
+/–0.5 °C
+2...+8 °C
Tygodniowo
30 min
E1 + E2
Ekran dotykowy
TAK
TAK
NFC
TAK
SERIA
1C
M
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1C.51 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for finder 1C.51

Summary of Contents for finder 1C.51

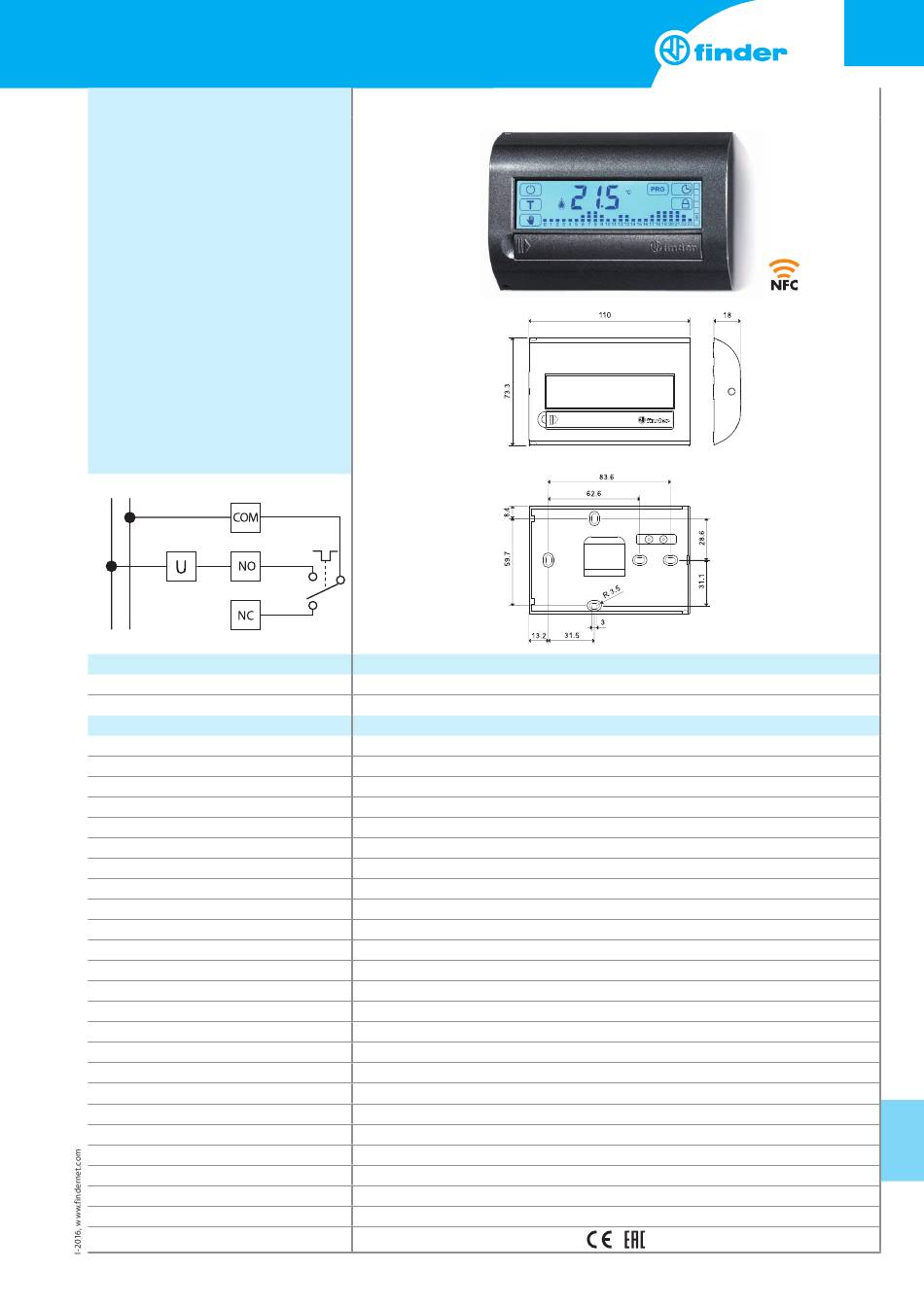

  • Page 1 SERIA 1C SERIA Termostat programowany tygodniowo Programowalny termostat pokojowy 1C.81 • Ekran dotykowy z łatwym programowaniem • Możliwość programowania za pomocą smartfonów z opcją komunikacji NFC • Jasne podświetlenie • Oszczędność energii dzięki opcjom ECO1 i ECO2, nadzorowanie pracy i PIN •...
  • Page 2 Pobierz aplikację Finder Clima Finder Clima umożliwia zaprogramowanie termostatu 1C.81 za pomocą smartfonu z komunikacją NFC (Near Field Communication). Różnym termostatom znajdującym się w domu można przypisać różne nazwy i zapisać odnośne programy na telefonie. Po zbliżeniu smartfonu do termostatu, zaprogramowane wartości są natychmiast przesyłane.
  • Page 3 SERIA 1C SERIA Termostat programowany tygodniowo Programowalny tygodniowo termostat 1C.61 z ekranem dotykowym • Ekran dotykowy z łatwym programowaniem • Termostat tygodniowy dotykowo-suwakowy ultracienki 17 mm z szerokim wyświetlaczem • Łatwość użytkowania • Przełącznik LATO/ZIMA • 24 punkty do nastawy temperatury •...
  • Page 4 SERIA 1C SERIA Termostat programowany tygodniowo Akcesoria Zewnętrzny czujnik temperatury 01C.61 Czułość (–20…+90)°C Rozdzielczość 0.1 °C (–9.9…+90)°C 1 °C (–10…–20)°C Maks. długość przewodu m 20 01C.61 Stopień ochrony IP 54 Czujnik 01C.61 służy do mierzenia temperatury na zewnątrz pomieszczenia, w którym znajduje się termostat 1C.61. Czujnik 1C.61 może wyświetlać...
  • Page 5 SERIA 1C SERIA Termostat programowany tygodniowo Programowalny tygodniowo termostat 1C.51 z ekranem dotykowym • Łatwość użytkowania • Programowalny tygodniowo termostat pokojowy z EKRANEM DOTYKOWYM • Kalendarz z latami przestępnymi i czasem letnim i zimowym • Przełącznik LATO/ZIMA • 3 programowalne progi temperatury •...
  • Page 7 1C.51 DIGITAL TOUCH CHRONOTHERMOSTAT...

  • Page 8: Table Of Contents

    INDEX TECHNICAL DATA page 2 DIMENSIONS page 2 INSTALLATION page 3 ELECTRICAL CONNECTIONS page 5 BATTERY page 6 START UP page 7 KEYS page 8 SYMBOLS page 9 TIME/DATE SETTING page 10 MANUAL MODE page 12 DISPLAY LOCK page 13 FULL THERMOSTAT LOCK MODE (WITH PIN) page 14 TEMPERATURE SETTING...

  • Page 9: Technical Data

    TECHNICAL DATA Power supply: 2 Alkaline Batteries 1.5 V AAA WINTER temperature range: (+5…+37)°C SUMMER temperature range: (+5…+37)°C (+5…+37)°C MANUAL temperature range: (+2…+8)°C FROST protection temperature range: (0.1…0.9)°C Temperature differential ∆T: Internal sensor accuracy: +/– 0.5°C Minimum programming interval: 1 hour Degree protection: IP20 relay 1 CO (volt-free contact)

  • Page 10: Installation

    INSTALLATION SAFETY REQUIREMENTS Before connecting to this programmable thermostat, make sure that the load (heater, pump, etc.) is not connected to the supply and that the load is within the ratings marked on the thermostat. POSITIONING Install the programmable thermostat away from sources of heat (heaters, direct sunlight, kitchens) and from doors/windows, at a height of about 1.5 m above the floor.
  • Page 11 Frame Frame Extender Extender ABB: Chiara ABB: Mylos Ave: Serie 44 Bticino: Living, Light, Light Tech, Livinglight, Axolute Bticino: Matix Gewiss: Chorus Vimar: Arke Vimar: Eikon, Eikon Evo, Plana Vimar: Idea Bticino: Livinglight Air with 01C.51 - d) = remove the side supports...

  • Page 12: Electrical Connections

    WIRING DIAGRAM MANUAL override contact...

  • Page 13: Battery

    BATTERY Insert the batteries into the battery compartment, observing the correct polarity. ATTENTION - Incorrect placement of the batteries (reverse polarity) may damage the thermostat - If the battery charge falls below the minimum level, the thermostat is placed in the OFF state and the output relay releases - If the thermostat remains unused for long periods it is advisable to remove the batteries The thermostat provides 3 different reports of battery condition:...

  • Page 14: Start Up

    START UP Insert the batteries and for a few seconds the display will show all the symbols, keys and the software version - before entering the time and date routine. Set the latter by using the keys to modify the values and confirm (see pages 10 /11).

  • Page 15: Keys

    KEYS Thermostat ON / OFF switch Display /setting the three temperature levels Activates and sets the MANUAL mode. Pressed for 3 seconds it is possible to program the TIMER MANUAL mode Programming. Pressed for 3 seconds activates the PARTY mode Pressed for 3 seconds activates or deactivates the LOCK mode Allows the TIME and DATE to be set Pressed for 3 seconds, it is possible to access at the advanced menu...

  • Page 16: Symbols

    SYMBOLS Displayed during the TIME / DATE setup or when time is shown Heating ON (in WINTER mode) Cooling ON (in SUMMER mode) Frost protection ON Displays Low battery °C Unit of measurement ∆T Temperature differential Indicates the LOCK mode active 24 hour time / temperature profile 0 1 2 1 2 3 4 5 6 7...

  • Page 17: Time/Date Setting

    TIME / DATE SETTING To set time and date press Data to be set appears in the following order: HOURS /MINUTES / DAY/ MONTH / YEAR Figures that are flashing, can be changed using the keys Confirm with and advance to the next parameter. To step back or exit from the menu, press EXAMPLE Press...
  • Page 18 Press to confirm the DAY and proceed to set the MONTH Press to confirm the MONTH and proceed to set the YEAR Press to confirm and exit the Time/Date setting menu. The display will then show the main screen. NOTES - Removing the batteries, the thermostat has a power reserve of 40 seconds, after which, settings, hours, minutes, day, month, year, will be lost - The day of the week number is automatically set based on the calendar...

  • Page 19: Manual Mode

    MANUAL MODE From the main screen press The display shows the manual temperature, previously set. To change it, use to increase or to decrease the value. To confirm and exit, press NOTE If you do not touch the display for 3 seconds, the screen will revert to show the current measured temperature.

  • Page 20: Display Lock

    DISPLAY LOCK This function protects the thermostat from accidental touch, blocking ONLY the display. To activate, it is necessary to press for 3 seconds. The symbol flashes adjacent to the displayed temperature indicating that the lock is activated. To deactivate, press for 3 seconds.

  • Page 21: Full Thermostat Lock Mode (With Pin)

    FULL THERMOSTAT LOCK MODE (WITH PIN) This advanced feature, serves to completely lock the thermostat. To enable it, you must set a 3-digit PIN that will be required every time you want to lock or unlock the thermostat. To set and register the PIN: - Turn off the thermostat with the key - Press for 3 seconds to enter into the ADVANCED SETTINGS...
  • Page 22 Using keys enter the PIN previously set in the advanced settings and press . 3 beeps will confirm that the lock is active and the display will show the following screen To unlock the thermostat, press and hold key for 3 seconds. The display will show Enter the PIN and confirm with 3 beeps confirm that the lock has been disabled.

  • Page 23: Temperature Setting

    TEMPERATURE SETTING Press , and the first level of temperature will flash. Set the desired temperature using the keys Press to confirm and to pass to next temperature level. Set the desired temperature using the keys Press to confirm and to pass to next temperature level. Set the desired temperature using the keys Press finally to return to the main screen.

  • Page 24: Programming

    PROGRAMMING Press to enter programming menu. SELECT THE DAY(S) TO BE PROGRAMMED Starting with day 1 (Monday) blinking, move across each day in turn by pressing During this process select using the key those day(s) required to have the same time/temperature profile. Day(s) so selected will now appear on a black background.
  • Page 25 After all 24 hours have been programmed, 3 beeps will confirm acceptance of the program and the display will show only the days yet to be programmed (the days that at the beginning were not selected). Now is possible to continue the programming of the remaining day(s), by the same process described above or exit from the menu with the key When the programming is finished, press the key to exit from the...
  • Page 26 COPY FUNCTION Press to enter the programming menu. Day 1 blinks (Monday). Navigate between days by pressing For example, to copy the program of day 2 into days 3 and 4, select (by the day 2 before selecting the days 3 and 4. These days will be highlighted by a black background Press the time/temperature profile.

  • Page 27: Timed Manual Function (Vacation Program)

    TIMED MANUAL FUNCTION (VACATION PROGRAM) This function serves to maintain a specified temperature for a specific time, set by the user. Starting from the main display press for 3 seconds. You will see the following screen. With keys set the time (hour) after which this function will terminate.

  • Page 28: Party Function

    PARTY FUNCTION With this function, you can temporarily change the values set for the 24 hour profile. The function will last 24 hours and will not be saved. Starting from the Main screen, press for 2 seconds The display shows the profile for the current day, with the current time segment, flashing (eg hour 8).

  • Page 29: Frost Protection Function

    FROST PROTECTION FUNCTION The frost protection function is active only when the thermostat is set to WINTER and is OFF. It serves to protect the system against very low temperatures. Upon reaching the set threshold, the function will be activated and the display will show the icons At any time, press to turn on the thermostat and view the main screen.

  • Page 30: Remote Control

    REMOTE CONTROL Closing the remote control contact forces the thermostat into the MANUAL mode. In this state, the temperature can be adjusted only by using the keys. NOTE The temperature initially displayed will be the temperature previously set in the Manual mode MANUAL override contact...

  • Page 31: Advanced Menu

    ADVANCED MENU The advanced settings are useful for customizing the thermostat. The settings are: SUMMER-WINTER mode FROST PROTECTION Function TEMPERATURE DIFFERENTIAL ANTI-SEIZE PUMP Function DAYLIGHT SAVING Function FULL THERMOSTAT LOCK mode (with PIN) RESET To enter to advanced settings, start from the main screen, press to turn off the thermostat.
  • Page 32 FROST PROTECTION function After setting the Summer or Winter mode, pressing the display will show the following screen. With the keys it is possible to set the desired value, between 2°C and 8°C. Press to confirm and proceed to the next menu. To step back in the menu press , while to exit, press the key 3 seconds or press...
  • Page 33 To step back in the menu press , while to exit, press the key 3 seconds or press repeatedly until the message OFF appears on the screen. If something has been changed, 3 beeps will confirm the successful change. ANTI-SEIZE PUMP function After programming the thermal differential, press to display the following screen...
  • Page 34 DAYLIGHT SAVING function This function allows you to set the thermostat such that: - Daylight saving time changes automatically - Daylight saving time does not change automatically The screens appear as follows: Confirming with the thermostat will automatically change to daylight savings time.
  • Page 35 FULL THERMOSTAT LOCK MODE (WITH PIN) Through this menu, you can enable the LOCK function for just the display, or for the entire thermostat, thus avoiding tampering (see p. 13 and 14). On the Advanced Menu, press until the following screen is displayed: To enable the lock mode for the display only, set the PIN to 000 using the keys.
  • Page 36 RESET This will restore all factory settings. Using , set Confirming with the thermostat will turn off completely and then turn back on showing first the version of the software and then the main screen. The product will be reset to its factory settings. NOTE Time and date will not be cleared/reset.
  • Page 37 IB1C51EN - 11/16 - FINDER S.p.A. - 10040 ALMESE (TO) - ITALY...
