WLAN

8

GNSS

9

Power

10

SIM cover

11

SIM holder

www.netmodule.com
SMA female connectors for MIMO WLAN antenna.
A3 is the main port, A4 is the auxiliary port. If only
one WLAN antenna is used, it must be attached to
port A3.
SMA female connector for GNSS antenna.
The router can be powered with an external source
with the nominal input voltages 12
Removing the SIM cover: Loosen the screw, remove
it and then remove the cover.
Please close the cover again after inserting the SIM
cards.
Slots for 2 Micro SIM (3FF).

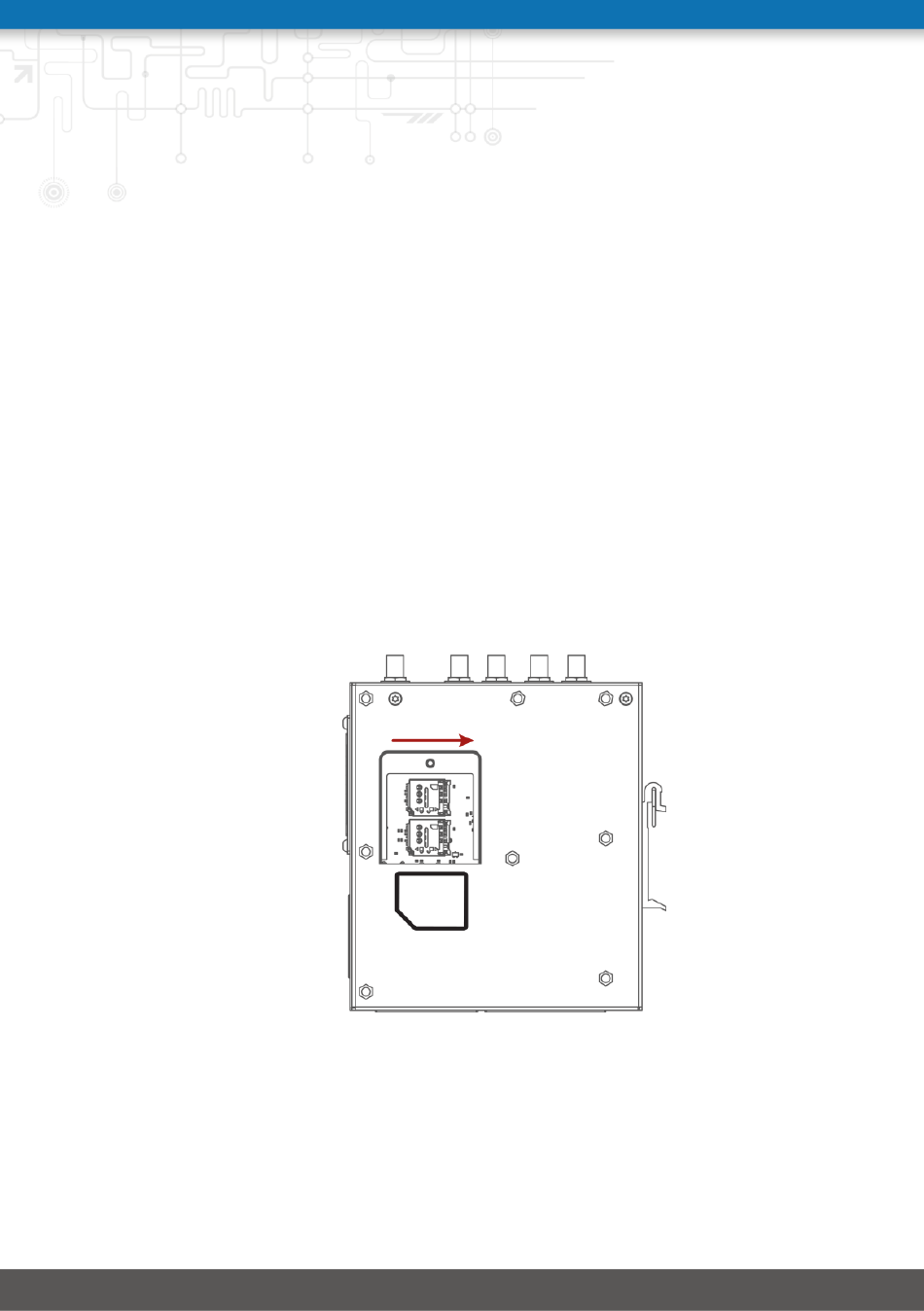

The card holders can be opened by sliding them
carefully in the direction indicated by the arrow in
the drawing below and lift it up.
Then insert the SIM cards with the chip facing to the
back.
SIM 2
SIM
Close the holder again and shift it back until it's
locked. Please close the SIM cover after inserting
the SIM card and tighten the screw again.
