3
4
1

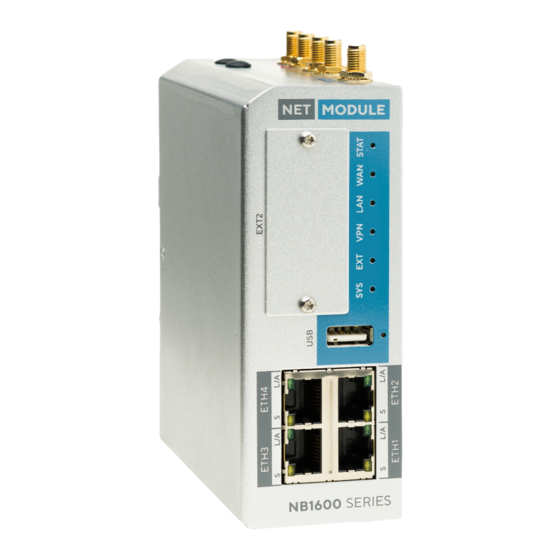

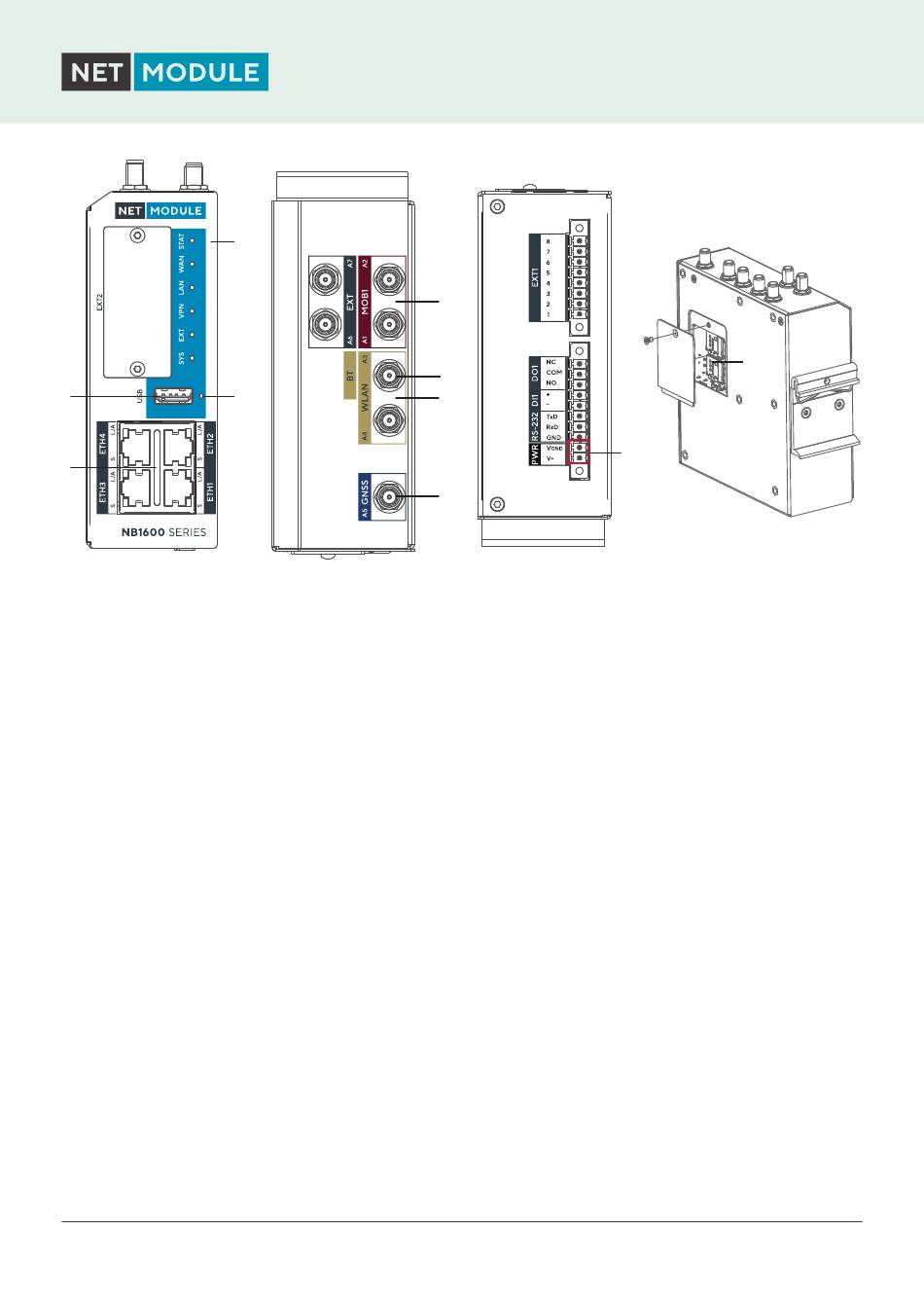

Status LED
2
Reset
3
USB
4
Ethernet
5
LTE
6
Bluetooth LE
www.netmodule.com
1
2
Status indicator.
— Blinking: Device busy; device is in startup, software- or
configuration update.
— On: The device is ready
Press at least 3 seconds for reboot and at least 10 second
for a factory reset. The start of the factory reset is confir-
med by all LEDs lighting up for a second. The button must
be released immediately afterwards.
USB 2.0 host port
Connect your router by using the ETH 1 port with your
computer to start the configuration. Your router is
configured as a DHCP server by default and has the IP
address 192.168.1.1. Open this IP in your browser to reach
the WEB-GUI.
SMA female connectors for LTE antennas. For MOB 1, A1 is
the main, A2 the auxiliary port.
SMA female connector (A3) for Bluetooth.
5
6
7
8
03.09.2019 © NetModule AG | Errors reserved
Quick Start Guide Enclosure
10
11
9
NB1601
