- Page 1 DESICCANT DEHUMIDIFIER DH3511 MANUAL 110V 50Hz Great British Design...
- Page 2 THANK YOU! Thank you for choosing this innovative dehumidifier. This manual describes the many benefits and advanced features that this unique product has to offer. This dehumidifier is a tough, industrial unit designed to be used almost anywhere that dry air is required. Desiccant/Absorption dehumidifiers are especially suited to applications where low relative humidities are needed and they work well over a wide temperature range.
- Page 3 SAFETY (2) • Disconnect from the mains before cleaning the unit or any of its components. • Do not clean the dehumidifier by spraying it or immersing it in water. • Do not insert any object into the opening of the dehumidifier. •...
-
Page 4: How It Works
HOW IT WORKS Your Desiccant dehumidifier removes moisture using a continuously rotating moisture absorbing wheel —this ‘Desiccant Rotor’ is literally a honeycomb of extremely hygroscopic membranes. A highly efficient yet low noise fan draws air into the unit (Process Air In) and forces it through a portion of the absorbent rotor. -
Page 5: Fan System
HOW IT WORKS WORKS (2) PATENTED DESICCANT ROTOR The Desiccant Rotor is the heart of the dehumidifier. It is an array of specially absorbent membranes arranged as a series of corrugations (as shown in the cut-away image) to give a vast surface area making it an extremely efficient. It is encased in a galvanized steel ring and turns on high quality sealed ball bearing units. - Page 6 POSITIONING The dehumidifier is designed only for indoor use however, it can be placed inside or outside the room to be dried. INTERNAL POSITIONING When positioning the unit inside the room, place it centrally, ensuring inlet and outlet ducts are clear of obstruction.
-
Page 7: Stand-Alone Operation
OPERATION STAND-ALONE OPERATION Connect the unit to a suitable mains supply. Ensure the Remote Humidistat switch is set in the ‘OFF’ position. Switch the Power switch to the ‘ON’ (I) position. The fan will start and the Ammeter reading will rise. The ammeter indicates the current taken by the PTC heater bank. -
Page 8: Troubleshooting

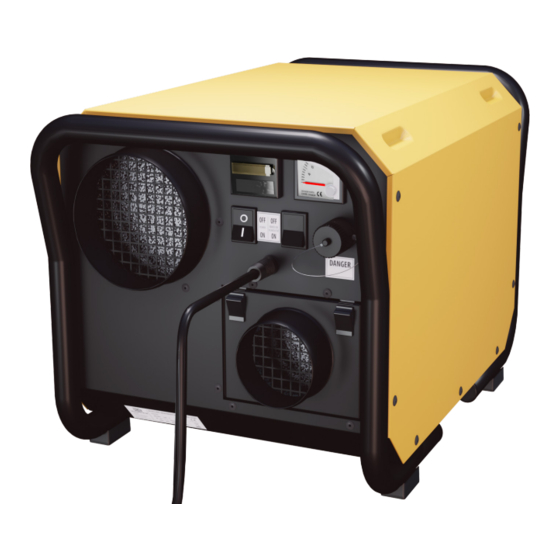

CONTROLS The controls are positioned on the front of the unit next to the air outlet. They are: • Power Switch • Ammeter • Hour Meter Remote POWER Humidistat • Remote Humidistat Switch • Remote Humidistat Connector DANGER 110V TROUBLESHOOTING If the dehumidifier does not operate: Low Dehumidifying Effect: •... -
Page 9: Maintenance
MAINTENANCE ATTENTION • Maintenance should only be carried out by qualified personnel • Unit should be disconnected from mains before removing covers • If unit has just been running, the heater bank may still be hot DESICCANT ROTOR The desiccant rotor is maintenance free, however, if it becomes blocked with dust (e.g. if it has been running without inlet air filter) it can be cleaned by vacuum cleaner or low pressure compressed air. -
Page 10: Technical Data
TECHNICAL DATA DH3511 Typical extraction @ 32 C 90% relative humidity 45 L/ day Great British Design Typical extraction @ 26 C 60% relative humidity 35 L/ day Airflow (Dry Air Out) 400 m Airflow (Wet Air Out) 125 m Mains 110V ~ 1 phase •... - Page 11 WIRING DIAGRAM AND SCHEMATIC, DIMENSIONS PROCESS REMOTE REGEN CAPACITOR CONNECTOR HOUR METER CAPACITOR AMMETER REMOTE MAIN HUMIDISTAT SWITCH SWITCH REMOTE SWITCH / HUMIDISTAT (OPTIONAL) AMMETER REMOTE CONNECTOR REMOTE OVERHEAT MAINS HUMIDISTAT PROTECTION SWITCH SWITCH (MANUAL RESET) MAINS LEAD HOUR METER TERMINAL PROCESS REGEN...
- Page 12 Ecor Pro Ampèrestraat 18J 3861 NC Nijkerk The Netherlands Tel +31 297 52 75 83 www.ecorpro.eu info@ecorpro.eu Subject to modifications...
