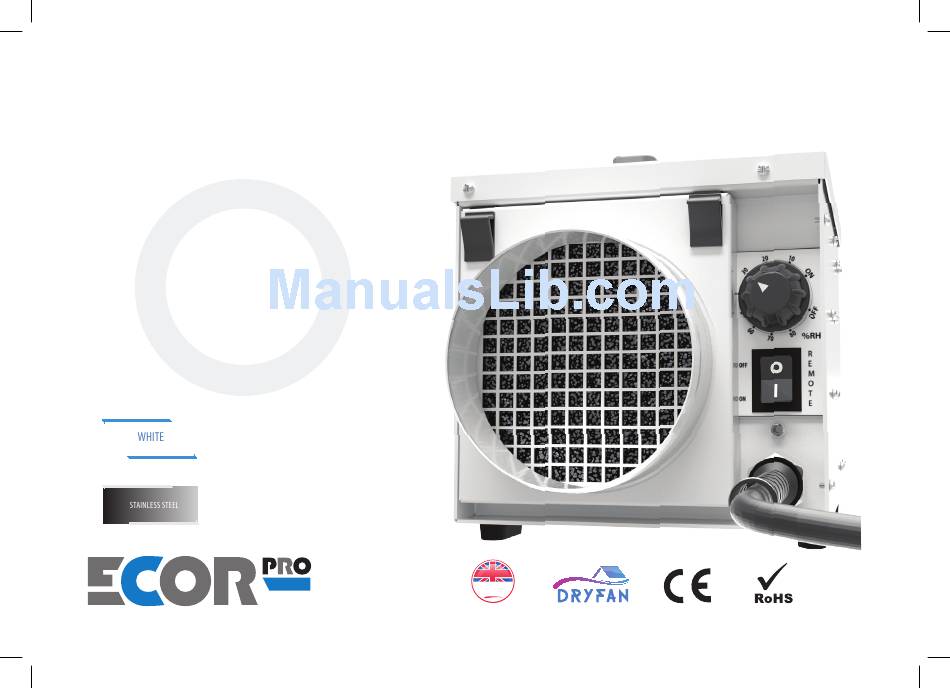

- Page 1 ® DEHUMIDIFIER UsING DRyFAN TEcHNOLOGy INTERNATIONAL PATENT PENDING DEHUMIDIFIER USER MANUAL DryFan 8 (white) ® DryFan 12 (white) ® DryFan 8 PRO (stainless steel) ® DryFan 12 PRO (stainless steel) ® Powered by Great British Design...
- Page 2 Your dehumidifier fights againt rust, wood rot, bacteria, fungi en prevents damage from moisture. sAFETy For safety reasons, read this information carefully before operating. Persons who are not familiar with this type of product must not use it. This appliance must be earthed and should only be connected to an earthed 220 –...
- Page 3 sAFETy (2) • Do not clean the dehumidifier by spraying it or immersing it in water. • Do not insert any object into the opening of the dehumidifier. • Disconnect from the mains before cleaning the unit or any of its components. •...
- Page 4 THANkyOU! ® Thank you for choosing this exciting innovation in drying using DryFan technology. A unique product and a revolution to the way we keep living spaces, lofts, basements, boats, holiday homes, garages and storage areas dry all day and every day. This dehumidifier is a tough and can even be used for industrial processes and applications.
- Page 5 HOW OUR UNIQUE TEcHNOLOGy WORks ® Your dehumidifier uses DryFan technology and uses a continuously rotating moisture absorbing •wet air exhaust • patented patented wheel termed a “Rotor”. regen heater A highly efficient yet low noise fan draws air into the •...
- Page 6 HOW OUR UNIQUE TEcHNOLOGy WORks (2) PATENTED DESICCANT ROTOR The Desiccant Rotor is the heart of the DryFan system. It is an array of ® especially absorbent membranes – patent protected – arranged as a series of corrugations (as shown in the cut-away image) to give a vast surface area that was developed over many years, making it an extremely efficient mois- ture collector.
-
Page 7: Fan System
HOW OUR UNIQUE TEcHNOLOGy WORks (3) FAN SYSTEM All models use specialised fan technology to give quiet performance but type of fan will differ by model capacity. Note: External ductwork will reduce restrict airflow and therefore the amount of water the dehumidifiers will extract. - Page 8 HOW OUR UNIQUE TEcHNOLOGy WORks (4) CONTINUOUS FAN OR FAN ON WHEN DRYING ONLY MODES ® The DryFan system can be used in two modes: • 2 srews on front and back Mode 1 – The fan is always blowing and circulating air •...
- Page 9 ® POsITIONING DRyFAN 8 / 8 PRO POSITIONING The models have been designed for indoor use however, they can be placed inside or outside the room to be dried. Internal Positioning: When positioning the unit inside the room, place it centrally, ensuring inlet and outlet ducts are clear of obstruction.
- Page 10 12 / 12 PRO ® POsITIONING DRyFAN External Positioning (Models where Outlet Duct Fitted Only): When positioning the unit outside the room, connect ducting to the outlet to direct the dry airstream into the room to be dried. Optionally, the inlet may also be ducted to the room to give a re-circulation effect. In this case however, because the unit uses a portion for the inlet air for regeneration.
- Page 11 POsITIONING (3) NOTE: As the Wet-Air-Out discharge is warm and very humid ensure it is directed where it will have no adverse effect on the immediate environment. NOTE: Wet-air-out should be declined from the dehumidifier where possible if there is a risk of any condensation build up in the exhaust duct running back into the dehumidifier.
-
Page 12: Stand-Alone Operation

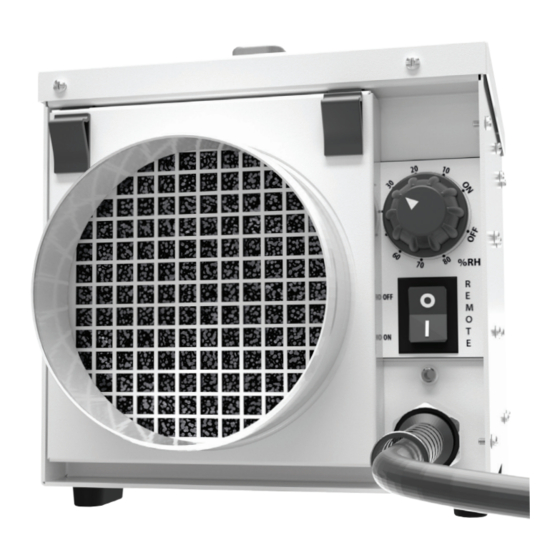

OPERATION CONTROLS The controls are positioned on the front of the unit next to the air outlet duct, they are: 1. Humidistat 2. Remote Humidistat Switch 3. Remote Humidistat Jack Plug Socket Auto reset. If there is a power out the dehumidifier will automatically restart when the mains power is recon- nected. -
Page 13: Remote Operation
OPERATION (2) NOTE: A low setting of say 10% means the room is regulated to a very dry level while a setting of say 90% the room will be maintained at a relatively humid level. The right level for the room may vary with weather, temperature and occupation conditions over time. -
Page 14: Technical Data
TEcHNIcAL DATA ® ® Specifications DryFan 8 / 8 PRO DryFan Powered by Typical extraction @ 35 C 90%rh 8 l /day 12 l /day Typical extraction @ 27 C 60%rh 6 l /day 10 l /day Air flow (Process) 90 m 130 m Air flow (Regen) -
Page 15: Guarantee Conditions
GUARANTEE cONDITIONs Your dehumidifier is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply: We expressly refute all further damage claims, including claims for collateral damage. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee. - Page 16 - Remote humidistat – 5 meter cord length and jack plug - Replaceable filters – pack of 3 - Blank replacement top plate without handle – pack of one EcOR PRO Anton Philipsweg 9-11 Tel.: +31 (0)297 52 75 83...
