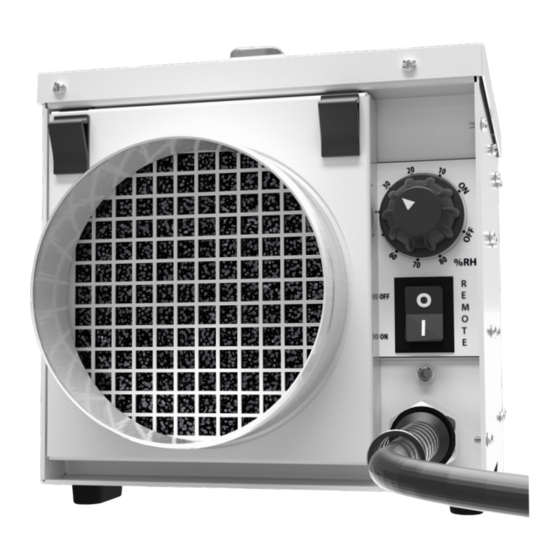

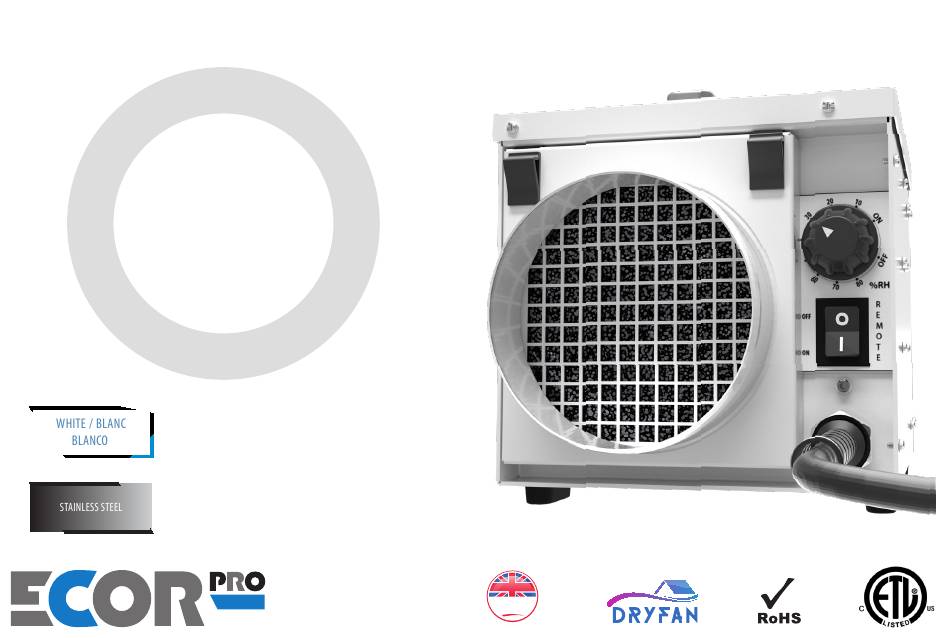

- Page 1 DEHUMIDIFIER • DÉSHUMIDIFICATEUR • DESHUMIDIFICADOR USER MANUAL MANUEL MANUEL DE USARIO EPD30 white / blanc / blanco EPD50 white / blanc / blanco EPD30-PRO stainless steel / INOX EPD50-PRO stainless steel / INOX ® DRYFAN TECHNOLOGY Powered by Great British Design...
- Page 2 Your dehumidifier fights against rust, wood rot, bacteria, fungi en prevents damage from moisture. SAFETY For safety reasons, read this information carefully before operating. Persons who are not familiar with this type of product must not use it. This appliance must be earthed and should only be connected to an earthed 120 V –...
- Page 3 SAFETY (2) • Do not clean the dehumidifier by spraying it or immersing it in water. • Do not insert any object into the opening of the dehumidifier. • Disconnect from the mains before cleaning the unit or any of its components. •...
- Page 4 THANKYOU! ® Thank you for choosing this exciting innovation in drying using DryFan technology. A unique product and a revolution to the way we keep living spaces, lofts, basements, boats, holiday homes, garages and storage areas dry all day and every day. This dehumidifier is a tough and can even be used for industrial processes and applications.
- Page 5 HOW OUR UNIQUE TECHNOLOGY WORKS ® Your dehumidifier uses DryFan technology and uses a continuously rotating moisture absorbing •wet air exhaust patented wheel termed a “Rotor”. • patented regen heater A highly efficient yet low noise fan draws air into the •...
- Page 6 HOW OUR UNIQUE TECHNOLOGY WORKS (2) PATENTED DESICCANT ROTOR The Desiccant Rotor is the heart of the DryFan system. It is an array of ® especially absorbent membranes – patent protected – arranged as a series of corrugations (as shown in the cut-away image) to give a vast surface area that was developed over many years, making it an extremely efficient moisture collector.
-
Page 7: Fan System
HOW OUR UNIQUE TECHNOLOGY WORKS (3) FAN SYSTEM All models use specialized fan technology to give quiet performance but type of fan will differ by model capacity. Note: External ductwork will reduce restrict airflow and therefore the amount of water the dehumidifiers will extract. - Page 8 POSITIONING EPD30/EPD30-PRO POSITIONING The models have been designed for indoor use however, they can be placed inside or outside the room to be dried. Internal Positioning: When positioning the unit inside the room, place it centrally, ensuring inlet and outlet ducts are clear of obstruction.
- Page 9 POSITIONING EPD50/EPD50-PRO External Positioning (Models where Outlet Duct Fitted Only): When positioning the unit outside the room, connect ducting to the outlet to direct the dry air-stream into the room to be dried. Optionally, the inlet may also be ducted to the room to give a re-circulation effect. In this case however, because the unit uses a portion for the inlet air for regeneration.
- Page 10 POSITIONING (3) NOTE: As the Wet-Air-Out discharge is warm and very humid ensure it is directed where it will have no adverse effect on the immediate environment. NOTE: Wet-air-out should be declined from the dehumidifier where possible if there is a risk of any condensation build up in the exhaust duct running back into the dehumidifier.
-
Page 11: Stand-Alone Operation
OPERATION CONTROLS The controls are positioned on the front of the unit next to the damp air inlet duct, they are: 1. Humidistat 2. Remote Humidistat Switch 3. Remote Humidistat Jack Plug Socket Auto reset. If there is a power out, the dehumidifier will automatically restart when the mains power is reconnected. -
Page 12: Remote Operation
OPERATION (2) NOTE: A low setting of say 10% means the room is regulated to a very dry level while a setting of say 90% the room will be maintained at a relatively humid level. The right level for the room may vary with weather, temperature and occupation conditions over time. -
Page 13: Technical Data
TECHNICAL DATA EPD 30 /EPD 30 -PRO EPD 50 /EPD 50 -PRO Specifications Powered by Typical extraction @ 90 F 90% rh 17 pt/day 25 pt/day Typical extraction @ 80 F 60% rh 13 pt/day 21 pt/day Air flow (Dry Air Out) 53 cfm 73 cfm Air flow (Wet Air Out) - Page 14 ADDITIONAL SAFETY FEATURE • MESURE DE SÉCURITÉ SUPPLEMENTAIRE • FONCIÓN DE SEGURIDAD ADDICIONALX Attention! Attention ! ¡Atención! As an added safety feature, if this Par mesure de sécurité Como característica de seguridad dehumidifier overheats internally, supplémentaire, si ce adicional, si este deshumidificador the internal safety fuse will stop the déshumidificateur surchauffe à...
- Page 15 ECOR PRO USA, LLC 2292 Faraday Avenue Suite 100 Carlsbad CA 92008 760-248-3010 info@ecorprousa.com www.ecorproducts.com Subject to modifications • Sous réserve de modifications • Sujeto a modificaciones.
