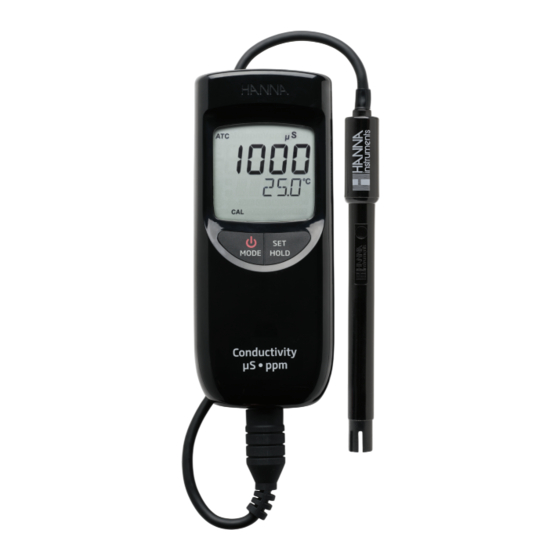

- Page 1 HI99300 • HI99301 Waterproof EC, TDS & Temperature Meter with Advanced Features...
- Page 2 Dear Thank you for choosing a Hanna Instruments product. Please read this instruction manual carefully before Customer, using this meter. This manual will provide you with the necessary information for correct use of this meter, as well as a precise idea of its versatility.
-
Page 3: Table Of Contents
Preliminary examination ........... General description and Intended use ......Main features ............Specifications ............Display description ........... Operational guide ............. Meter setup.............. Battery replacement..........Accessories ............... Electrode maintenance ..........Certification .............. Recommendations for users ........Warranty .............. -
Page 4: Preliminary Examination
Notify your nearest Hanna Instruments Customer Service Center if damage is observed. Each HI99300 is delivered in a rugged carrying case and is supplied with: •... -
Page 5: General Description And Intended Use
GENERAL DESCRIPTION AND INTENDED USE HI99300 HI99301 portable conductivity meters together with a HI763063 conductivity probe are designed to measure conductivity or total dissolved solids in a variety of samples. HI99300 HI99301 feature a two‑button operation system and are simple to use. They have a waterproof and compact casing, large dual‑line display and automatic... -
Page 6: Main Features
MAIN FEATURES • Simultaneous EC or TDS and temperature measurements on a large dual‑line LCD display • Selectable temperature unit (°C or °F) • HI763063 dedicated conductivity probe with integrated temperature sensor • Probe quick connect system • Battery life indication and low battery detection •... -
Page 7: Specifications
SPECIFICATIONS HI99300 0 to 3999 μS/cm* Range 0 to 2000 ppm ‑5.0 to 105.0 °C 1 μS/cm Reso lution 1 ppm (mg/L) 0.1 °C / 0.1 °F Accuracy ±2% F.S. (EC/TDS) @ 25 °C/77 °F ±0.5 °C / ±1.0 °F (Temperature) Temperature Automatic, with β... - Page 8 HI99301 0.00 to 20.00 mS/cm* Range 0.00 to 10.00 ppt ‑5.0 to 105.0 °C / 23.0 to 221.0 °F 0.01 mS/cm Reso lution 0.01 ppt (g/L) 0.1 °C / 0.1 °F Accuracy ±2% F.S. (EC/TDS) @ 25 °C/77 °F ±0.5 °C / ±1.0 °F (Temperature) Temperature Automatic, with β...
-
Page 9: Display Description
DISPLAY DESCRIPTION 1 Automatic Temperature Compensation indicator 2 Stability indicator 3 Battery percentage 4 TDS conversion factor 5 Low battery indicator 6 Measurement unit 7 Primary LCD 8 Temperature unit 9 Secondary LCD 10 Meter modes indicator 11 EC calibration tag... -
Page 10: Operational Guide
OPERATIONAL GUIDE Each meter is supplied with batteries. Before using the meter for the first time, open the battery compartment and insert batteries, observing the polarity (see “Battery Replacement“). CONNECTING THE ELECTRODE With the meter turned off, connect the HI763063 probe to the DIN socket on the bottom of the meter by aligning the pins and pushing in the plug firmly. - Page 11 Note: The meter detects the presence and the type of the probe at its input. - If the probe is not connected the message “NO” ”PROBE“ appears alternatively on the secondary LCD with “---” blinking on the first LCD line. - If the probe is not compatible “WRONG”...
- Page 12 Select calibration “STD“ . The meter enters the calibration mode and “μS 1.41 USE” (HI99300) or “mS 12.88 USE“ (HI99301) is displayed with blinking. Place the sensor in calibration solution. If the standard value is recognized first “REC“ then “WAIT“...
- Page 13 Exiting calibration and resetting default values After entering the calibration mode and before the point is accepted, it is possible to quit the procedure and return to the last calibration data by pressing the button. The LCD displays “ESC“ for 1 second and the meter returns to normal mode.
-
Page 14: Meter Setup
METER SETUP Setup mode allows the selection of the Temperature unit, Auto‑off, Beep confirmation tone, temperature compensation factor for EC and TDS conversion factor. To enter Setup mode press and hold button until “STD“ and tag is replaced by “SETUP“ and tag. -
Page 15: Battery Replacement
BATTERY REPLACEMENT When the remaining battery life is less than 10% the battery tag blinks on the display to warn the user. Battery Error Prevention System (BEPS) If the battery is too weak (“0%”) the display shows “bAtt“, “DEAD“ for a few seconds then the meter powers off. Immediately replace the batteries with new ones. -
Page 16: Accessories
ACCESSORIES Conductivity probe (EC & TDS) with HI763063 integrated temperature sensor, DIN connector and 1m (3.3’) cable HI7030M 12880 μS/cm conductivity standard, 230 mL HI7031M 1413 μS/cm conductivity standard, 230 mL 1382 mg/L (ppm) TDS calibration solution, HI7032M 250 mL 6.44 g/L (ppt) TDS calibration solution, 20 HI70038P mL sachets (25 pcs.) -
Page 17: Electrode Maintenance
ELECTRODE MAINTENANCE PREPARATION • Remove the protective cap. Rinse with water. STORAGE • Replace the protective cap. Note: Never store the electrode in distilled water. CLEANING PROCEDURE • Soak in Hanna HI7061 electrode cleaning solution for 20 minutes. Rinse well and calibrate before using. •... -
Page 18: Certification
CERTIFICATION All Hanna Instruments conform to the CE European Directives. RoHS compliant Disposal of Electrical & Electronic Equipment. The product should not be treated as household waste. Instead hand it over to the appropriate collection point for the recycling of electrical and electronic equipment which will conserve natural resources. -
Page 19: Recommendations For Users
When shipping any meter, make sure it is properly packed for complete protection. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice. - Page 20 World Headquarters Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com MAN99300 Printed in ROMANIA...
