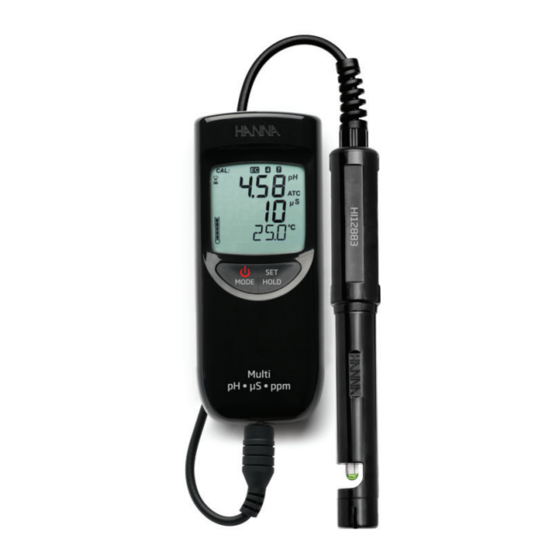

Hanna Instruments HI991300 Instruction Manual
Waterproof ph, ec, tds and temperature meter with advanced features
Hide thumbs
Also See for HI991300:
- Instruction manual (2 pages) ,
- Instruction manual (2 pages) ,
- Instruction manual (24 pages)
Related Manuals for Hanna Instruments HI991300
Summary of Contents for Hanna Instruments HI991300

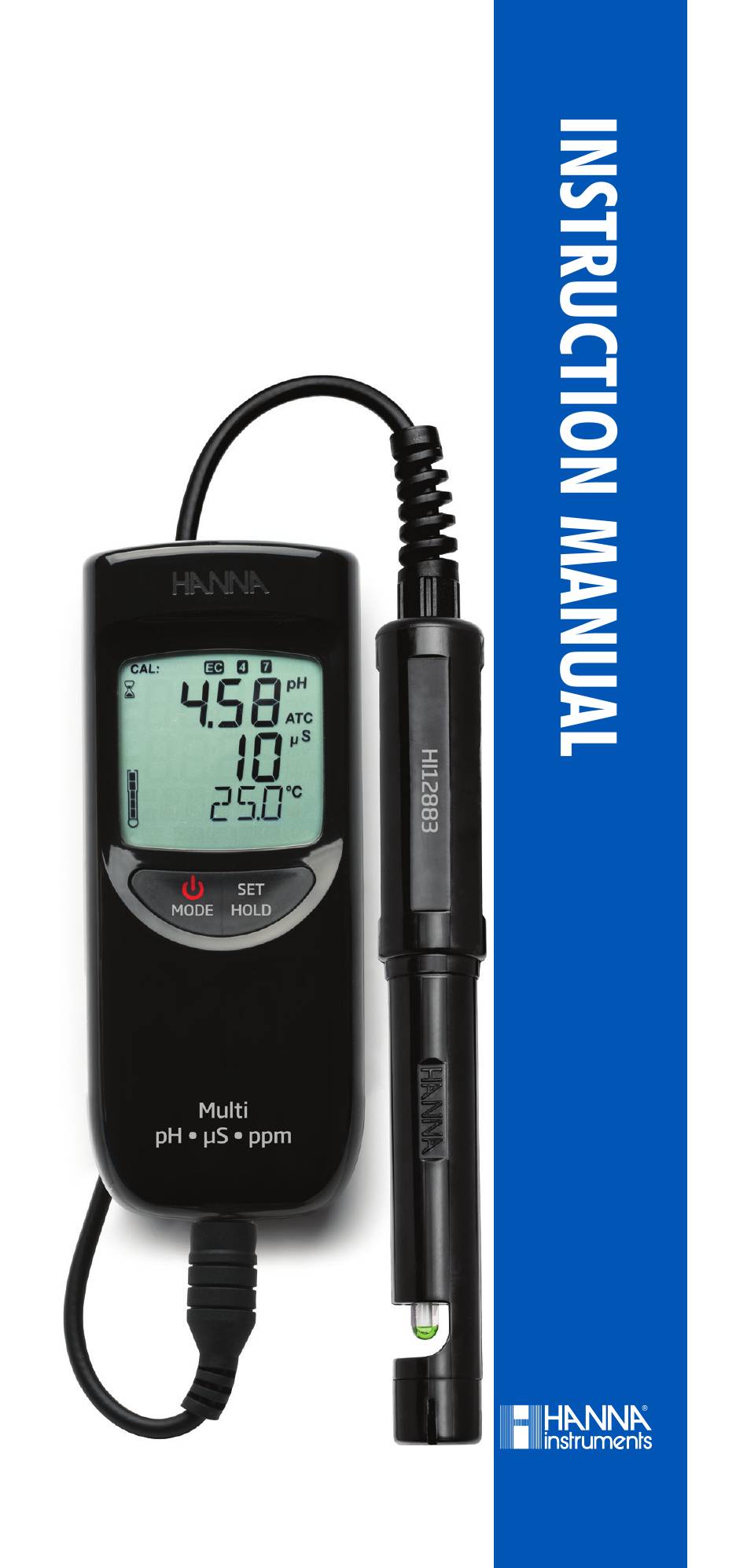

- Page 1 HI991300 • HI991301 Waterproof pH, EC, TDS and Temperature Meter with Advanced Features...
- Page 2 All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.
-
Page 3: Table Of Contents
Table of Contents ............Preliminary Examination ........... General Description and Intended Use ......Main Features ............Specifications ............Display Description ........... Operational Guide ............ Meter Setup ............. Battery Replacement ..........Accessories ............... Electrode Maintenance ..........Certification .............. Recommendations for Users ........Warranty .............. -
Page 4: Preliminary Examination
DIN connector and 1m (3.3’) cable • pH 4.01 & 7.01 Buffer sachet • HI70031 1413 μS/cm and HI70032 1382 ppm 1 sachet each for HI991300 • HI70030 12880 μS/cm and HI70038 6.44 ppt 1 sachet each for HI991301 •... -
Page 5: General Description And Intended Use
HI991300 HI991301 are light weight, portable pH, conductivity (or total dissolved solids) and temperature meters for portable applications requiring both a pH and conductivity (or TDS) measurement. Applications include measurements for greenhouses irrigation, hydroponics and groundwater monitoring from agriculture nutrient pollution. -
Page 6: Main Features
Main features: • Simultaneous, pH, EC/TDS and temperature measure‑ ments on a large three line LCD display; • Selectable temperature unit. • pH electrode condition display • mV of pH measurement for electrode check • Last calibration points pH and EC •... -
Page 7: Specifications
HI991300 HI991301 ‑2.00 to 16.00 pH / ‑2.0 to 16.0 pH pH‑mV ±825 mV (pH‑mV) Range* 0 to 3999 μS/cm** 0.00 to 20.00 mS/cm** 0 to 2000 ppm 0.00 to 10.00 ppt Temp. ‑5.0 to 105.0 °C / 23.0 to 221.0 °F 0.01 pH / 0.1 pH... -
Page 8: Display Description
1 EC calibration tag 2 Stability indicator 3 Primary LCD 4 Battery percentage 5 Secondary LCD 6 Electrode condition indicator 7 TDS conversion factor 8 Low battery indicator 9 pH calibration buffer(s) used 10 Automatic Temperature Compensation indicator 11 Measurement unit 12 Temperature unit 13 Third LCD 14 Meter modes indicator... - Page 9 TO TURN THE METER ON To turn the meter ON, press the button on the front of the meter. If it does not turn on, make sure that the batteries are properly installed in their place. The meter is provided with an active acoustic signal when a key is pressed.
- Page 10 TO FREEZE THE MEASUREMENT VALUES While in measurement mode, press and hold the SET button until “HOLD“ appears on the third LCD line for 1 second. The reading of pH and temperature will be frozen on the LCD with “H” blinking. →...
- Page 11 line displays the sample temperature. If measurements are taken in different samples successively, rinse the probe tip thoroughly to eliminate cross‑contamination. For better ac‑ † curacy, frequent calibration of the pH sensor with the meter is recommended. In addition, the meter must be recalibrated whenever: a) The pH electrode is replaced.
- Page 12 Two-point calibration Proceed with steps 1 through 3 under single point calibration using 7.01 pH (pH 6.86 for NIST) buffer first. Then follow steps below: The ”pH 4.01 USE” message is then displayed. Place the probe in the second calibration buffer pH (4.01 or 10.01, or, if using NIST, pH 4.01 or 9.18).
- Page 13 5 bars: excellent condition 4 bars: very good condition 3 bars: good condition 2 bars: fair condition 1 bar: poor condition 1 bar blinking: very poor condition With 1 bar it is recommended to clean the pH electrode and recalibrate. If there is still only 1 bar or 1 bar blinking, replace the probe.
-
Page 14: Meter Setup
Select calibration type “EC STD“ . The meter enters the calibration mode and “μS 1.41 USE” (HI991300) or “mS 12.88 USE“ (HI991301) is displayed with tag blinking. Immerse the probe in calibration solution. If the standard value is recognized “REC“... - Page 15 • Use the SET button, to cycle through the auto‑off choices: 8 minutes (“8”, default value), 60 minutes (“60”) or disabled (“---”). Press to confirm and to enter the “BEEP“ selection. • To switch ON or OFF the beep tone, press the SET button;...
-
Page 16: Battery Replacement
BATTERY REPLACEMENT When the remaining battery life is less than 10% the battery tag blinks on the display to warn the user. Battery Error Prevention System (BEPS) If the battery is too weak (“0%”) the display shows “bAtt“, “DEAD“ for few seconds then the meter power off. Immediately replace the batteries with new ones. - Page 17 HI7030M 12880 μS/cm solution, 230 mL bottle HI7031M 1413 μS/cm solution, 230 mL bottle HI7032M 1382 ppm (mg/L) solution, 230 mL bottle HI70038M 6.44 ppt (g/L) solution, 230 mL HI70442M 1500 ppm (mg/L) solution, 230 mL HI70300M pH electrode storage solution, 230 mL HI7061M pH electrode cleaning solution, 230 mL HI710028...
-
Page 18: Electrode Maintenance
If the wick junction appears darkened, if may be pulled out a few mm and the soiled part cut off. • TEST: Perform SENSOR CHECK (see page 13). All Hanna Instruments conform to the CE European Directives. RoHS compliant Disposal of Electrical &... -
Page 19: Recommendations For Users
Technical Service department and then send it with shipping costs prepaid. When shipping any meter, make sure it is properly packed for complete protection. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice. - Page 20 World Headquarters Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com Local Office Hanna Instruments Inc. 270 George Washington Highway Smithfield, RI 02917 Phone: 800.426.6287 Fax: 401.765.7575 e‑mail: tech@hannainst.com MAN991300 Printed in ROMANIA...
