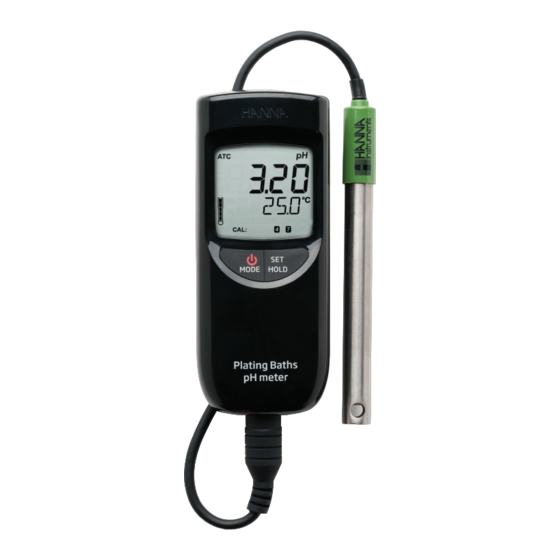

Hanna Instruments HI99131 Instruction Manual
Portable waterproof ph meter for plating baths
Hide thumbs
Also See for HI99131:
- Instruction manual (2 pages) ,
- Instruction manual (2 pages) ,
- Instruction manual (20 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Hanna Instruments HI99131
Summary of Contents for Hanna Instruments HI99131
- Page 1 HI99131 Portable Waterproof pH Meter for Plating Baths...
- Page 2 Dear Thank you for choosing a Hanna Instruments product. Please read this instruction manual carefully before Customer, using this meter. This manual will provide you with the necessary information for correct use of this meter, as well as a precise idea of its versatility.
-
Page 3: Table Of Contents
Table of Contents ............Preliminary Examination ........... General Description and Intended Use ......Main Features ............Specifications ............Display Description ........... Operational Guide ............ Meter Setup ............. Battery Replacement ..........Accessories ............... Electrode Maintenance ..........Certification .............. Recommendations for Users ........Warranty .............. -
Page 4: Preliminary Examination
Remove the meter from the packing material and examine it carefully to make sure that no damage has occurred during shipment. If noticeable damage is evident, contact your local Hanna Instruments Office. Each meter is supplied complete with: • HI629113 preamplified pH probe with built‑in... -
Page 5: General Description And Intended Use
HI99131 portable pH meter, together with the HI629113 pH probe, are designed specifically for pH measurements in plating baths. Plating Baths can vary from acid to neutral to alkaline with many different chemical formulations used. The common necessity is the fast and... -
Page 6: Main Features
Main features: • Simultaneous pH and temperature measurements on a large dual‑line LCD display • Automatic pH calibration at one or two points within two memorized buffer sets (standard or NIST) • Selectable temperature unit (°C or °F) • Electrode condition indicator •... -
Page 7: Specifications
‑2.00 to 16.00 pH / ‑2.0 to 16.0 pH Range* ±825 mV (pH‑mV) ‑5.0 to 105.0 °C/23.0 to 221.0 °F 0.01 pH / 0.1 pH Resolution 1 mV 0.1 °C/0.1 °F ±0.02 pH / ±0.1 pH Accuracy ±1 mV (pH‑mV) ±0.5 °C up to 60 °C;... -
Page 8: Display Description
1 Automatic Temperature Compensation indicator 2 Stability indicator 3 Battery percentage 4 Electrode condition indicator 5 Low battery indicator 6 Measurement unit 7 Primary LCD 8 Temperature unit 9 Secondary LCD 10 Meter modes indicator 11 pH calibration buffer(s) used... -
Page 9: Operational Guide
Each meter is supplied with batteries. Before using the meter for the first time, open the battery compartment and insert batteries, observing the polarity (see “Battery Replacement“). TO CONNECT THE ELECTRODE With the meter turned off, connect the HI629113 probe to the DIN socket on the bottom of the meter by aligning the pins and pushing in the plug firmly. - Page 10 TO SELECT THE MEASUREMENT RANGE While in measurement mode, press the SET button to select pH or pH‑mV measurement on the first LCD line. TO FREEZE THE MEASUREMENT VALUES While in measurement mode, press and hold the SET button until “HOLD“ appears on the secondary LCD. The “HOLD“...
- Page 11 The LCD displays the pH value (auto‑ matically compensated for tempera‑ ture) on the primary LCD, while the secondary LCD displays the sample temperature. If measurements are taken in different samples successively, rinse the probe tip thoroughly † to eliminate cross‑contamination. For better accuracy, frequent calibration of the pH sensor with the meter is recommended.
- Page 12 If using pH 4.01 or 10.01 (or pH 9.18 for NIST) buffer the ”SAVE” message is displayed and meter returns to pH measurement mode. Two-point calibration Proceed with steps 1 through 3 under single point calibration using 7.01 (pH 6.86 for NIST) pH buffer first. Then follow steps below: The ”pH 4.01 USE”...
- Page 13 ELECTRODE CONDITION The display is provided with a probe icon (unless the feature is disabled from setup) which indicates the electrode status after calibration. The “condition” remains active for 12 hours (unless the batteries are removed). The electrode condition is evaluated only if the current calibration has two points.
-
Page 14: Meter Setup
Setup mode allows the selection of the Temperature unit, Auto‑off, Beep, the type of pH buffer set, the Resolution and Information. To enter Setup mode press and hold button until “STD“ and tag is replaced by “SETUP“ and tag. Release the button. •... -
Page 15: Battery Replacement
BATTERY REPLACEMENT When the remaining battery life is less than 10% the battery tag blinks on the display to warn the user. Battery Error Prevention System (BEPS) If the battery is too weak (“0%”) the display shows “bAtt“, “DEAD“ for few seconds then the meter power off. Immediately replace the batteries with new ones. -
Page 16: Accessories
Preamplified pH probe with built‑in HI629113 temperature sensor titanium body, DIN connector with 1m (3.3’) cable HI7004L pH 4.01 buffer solution, 500 mL HI7006L pH 6.86 buffer solution, 500 mL HI7007L pH 7.01 buffer solution, 500 mL HI7009L pH 9.18 buffer solution, 500 mL HI7010L pH 10.01 buffer solution, 500 mL HI70300L... -
Page 17: Electrode Maintenance
PREPARATION • Remove the protective cap. DO NOT BE ALARMED IF ANY SALT DEPOSITS ARE PRESENT. Rinse with water. • Shake the electrode down as you would do with a clinical thermometer to eliminate any air bubbles inside the glass bulb. •... -
Page 18: Certification
All Hanna Instruments conform to the CE European Directives. RoHS compliant Disposal of Electrical & Electronic Equipment. The product should not be treated as household waste. Instead hand it over to the appropriate collection point for the recycling of electrical and electronic equipment which will conserve natural resources. -
Page 19: Recommendations For Users
Technical Service department and then send it with shipping costs prepaid. When shipping any meter, make sure it is properly packed for complete protection. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice. - Page 20 World Headquarters Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com Local Office Hanna Instruments Inc. 270 George Washington Highway Smithfield, RI 02917 Phone: 800.426.6287 Fax: 401.765.7575 e‑mail: tech@hannainst.com MAN99131 Printed in ROMANIA...
