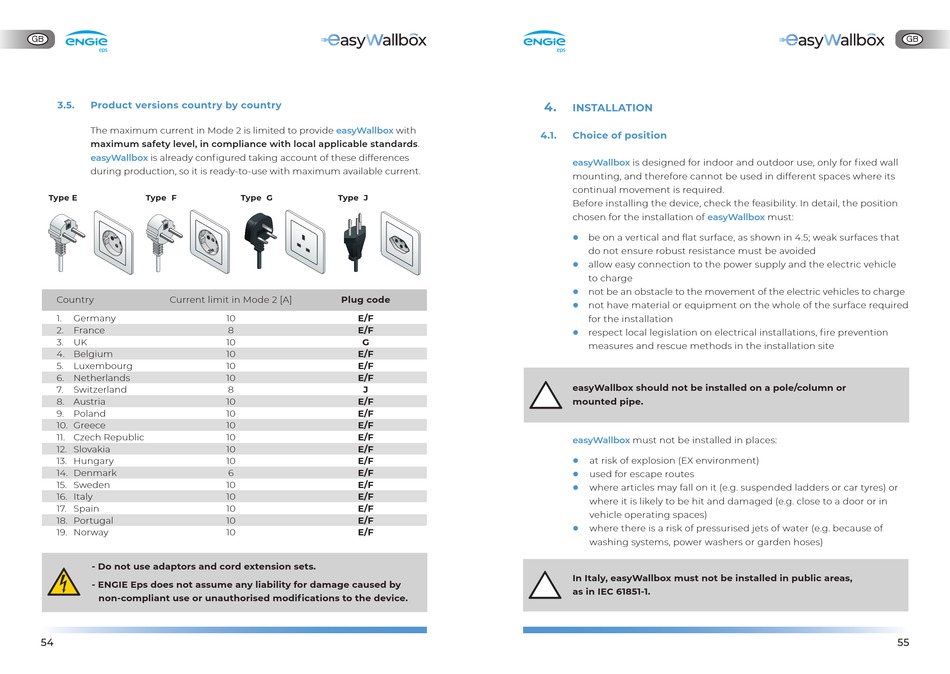

3.5. Product versions country by country
The maximum current in Mode 2 is limited to provide
maximum safety level, in compliance with local applicable standards.
easyWallbox is already configured taking account of these differences
during production, so it is ready-to-use with maximum available current.
Type E Type F
Country Current limit in Mode 2 [A]
1. Germany
2. France
3. UK
4. Belgium
5. Luxembourg
6. Netherlands
7. Switzerland
8. Austria
9. Poland
10. Greece
11. Czech Republic
12. Slovakia
13. Hungary
14. Denmark
15. Sweden
16. Italy
17. Spain
18. Portugal
19. Norway
- Do not use adaptors and cord extension sets.
- ENGIE Eps does not assume any liability for damage caused by
non-compliant use or unauthorised modifications to the device.
54
easyWallbox with
Type G Type J
Plug code
E/F
10
E/F
8
G
10
10 E/F
10 E/F
10 E/F
8 J
10 E/F
10 E/F
E/F
10
E/F
10
E/F
10
10 E/F
6 E/F
10 E/F
10 E/F
10 E/F
10 E/F
E/F
10
4.

INSTALLATION

4.1. Choice of position
easyWallbox is designed for indoor and outdoor use, only for fixed wall
mounting, and therefore cannot be used in different spaces where its
continual movement is required.
Before installing the device, check the feasibility. In detail, the position
chosen for the installation of easyWallbox
be on a vertical and flat surface, as shown in 4.5; weak surfaces that

do not ensure robust resistance must be avoided
allow easy connection to the power supply and the electric vehicle

to charge
not be an obstacle to the movement of the electric vehicles to charge

not have material or equipment on the whole of the surface required

for the installation
respect local legislation on electrical installations, fire prevention

measures and rescue methods in the installation site
easyWallbox should not be installed on a pole/column or
mounted pipe.
easyWallbox must not be installed in places:
at risk of explosion (EX environment)

used for escape routes

where articles may fall on it (e.g. suspended ladders or car tyres) or

where it is likely to be hit and damaged (e.g. close to a door or in
vehicle operating spaces)
where there is a risk of pressurised jets of water (e.g. because of

washing systems, power washers or garden hoses)
In Italy, easyWallbox must not be installed in public areas,
as in IEC 61851-1.
GB
must:
55
