GOLDEN MASK DEEP HUNTER PRO
Golden mask Deep Hunter pro is a professional metal detector designed
specifically to detect deeply buried larger metal objects (such sizes larger than 8
cm). He has the ability to indicate the type of metal and system to significantly
reduce interference caused by power lines.
Golden mask Deep Hunter pro is our well-known pulse detector now with
new front panel design and significantly improved performance based on an
entirely new electronics.
Golden mask Deep Hunter pro has remarkable stability, sensitivity and
accuracy that can be achieved with very simple and intuitive settings. The
apparatus provides a possibility of adjusting the frequency of the sound
indication and sensitivity; ground balance; "Silent" mode with two tone
indication of the type of metal, and further amplify the received signal, which
increases the depth of detecting metal objects up to 20%.
Advertisement
Related Manuals for GOLDEN MASK DEEP HUNTER PRO
Summary of Contents for GOLDEN MASK DEEP HUNTER PRO
- Page 1 He has the ability to indicate the type of metal and system to significantly reduce interference caused by power lines. Golden mask Deep Hunter pro is our well-known pulse detector now with new front panel design and significantly improved performance based on an entirely new electronics.
- Page 2 There is a real risk of damage that is not covered by the general conditions of the guarantee! The main antenna of Golden mask Deep Hunter pro is a square frame. It is made from PVC pipes, flanges and bends d = 32 mm, on which with the help of cable ties Velcro type mounted antenna, which is made of special multi- conductor cable.

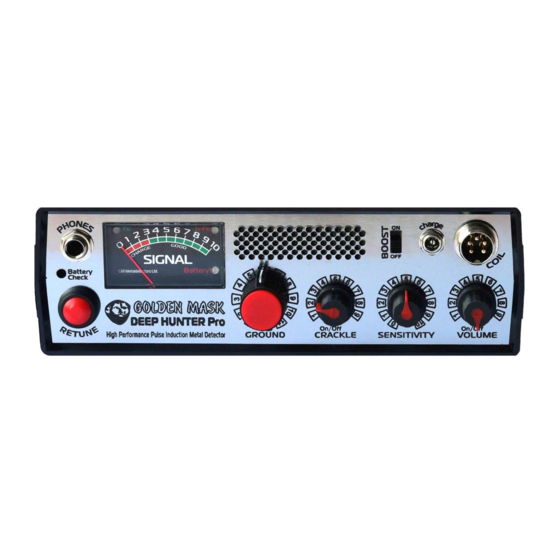

- Page 3 3. Settings and display Golden mask Deep Hunter pro uses extremely simple intuitive operation, which includes 4 potentiometer (of these 2 with keys - one for switching the unit and 1 for the inclusion of special modes), 2 buttons, 1 switch and 1 special indicator: - "VOLLUME On/Off"...
- Page 4 (the signal from the ground), but it is necessary to set the initial level, which in different areas may be different. This is done in order to exploit the maximum Golden Mask Deep Hunter pro2 – Instruction Manual...
- Page 5 6. Turn "GROUND" in the direction counterclockwise to the emergence of sound - "hum" or "pop" (setup known as "threshold"). Achieving such a setup is very important for a successful operation and maximize the potential of the detector. Golden Mask Deep Hunter pro2 – Instruction Manual...
- Page 6 5. Search for metal objects with frame antenna Golden mask Deep Hunter pro is designed to be used with big size antenna type "frame". This is the main way to search for deeply buried metal objects.
- Page 7 Categorically prohibits the use of this method, and "entry" to the operator or another assistant on the "framework" of a metal detector Golden mask Deep Hunter pro detector in working!
- Page 8 Moving with "hand" antenna should be carried out very slowly. Unlike traditional VLF metal detectors using the principle of inductive balance, Golden mask Deep Hunter pro can detect metal objects without motion. The movement is only necessary to identify the type of metal, such as speed of about 1 m/s is sufficient.
- Page 9 Hz (sounds like crackles). Each "signal" has "start" and "end". Golden mask Deep Hunter pro has very well expressed "zone" indication signals from deeply buried metal objects in search with frame.
- Page 10 On/Off." set to "Off". This mode can be choose at any time of searching process. In "silent" mode the crackles are not hear and presents of metal will be indicate with dual tone - "high" - for non-ferrous metals and "low" - for ferrous metals. Golden Mask Deep Hunter pro2 – Instruction Manual...
- Page 11 10. Charging the built-in battery To ensure maximum longevity of the built-in battery it has to use to charge only the supplied charger Golden Mask extra special battery charger. Regularly check the charge level of the built-in battery with button "Battery Check"...
- Page 12 10. Relativity depth of detecting metal objects in different modes Golden Mask Deep Hunter pro enables the operator to combine the settings of the device and its use in 4 different modes of operation.
- Page 13 "On" (running) machine, then you should proceed to charge the built-in battery. 6. To maximize the potential of the device during operation it is advisable to pressure short "RETUNE" from time to time. Golden Mask Deep Hunter pro2 – Instruction Manual...
- Page 14 11. If after lifting the antenna from the ground indicator "SIGNAL" show a negative value (arrow deviates to the left of zero), this means that under the antenna was metallic object during the preparation of the unit to work. Golden Mask Deep Hunter pro2 – Instruction Manual...
- Page 15 This is especially important for regions in and around the settlements and industrial sites. The same goes for underground gas supply installations of oil and/or fuel and other underground facilities. Golden Mask Deep Hunter pro2 – Instruction Manual...
- Page 16 17. The use of high-quality headphones (not available at box) connected to the socket "PHONES" helps achieve even results. The manufacturer and dealer are not liable for damages or injuries that could result from digging up the soil. Rev. 11.2016 Golden Mask Deep Hunter pro2 – Instruction Manual...
-
Page 17: Warranty And Service
Warranty card №___________________ / Date: ____________________ User: _________________________________________ Dealer:________________________________________ The Golden Mask Deep Hunter pro metal detector has a 5-year warranty of the electronics covering the labor costs and materials, and damages not resulting from deliberate or negligent actions. The warranty is voided in the cases of mechanical damage to the respective...
