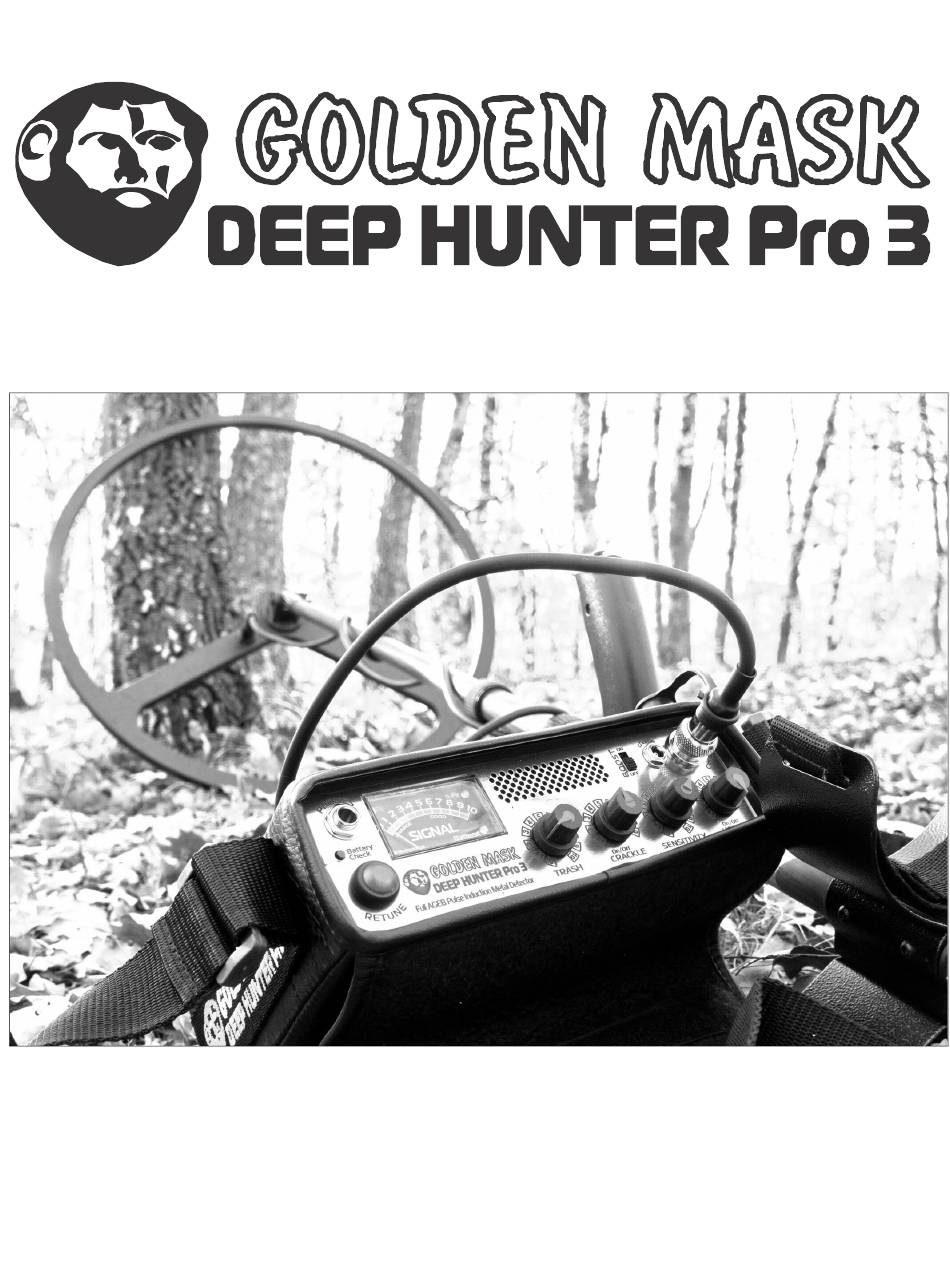

- Page 1 Instruction manual...
- Page 2 GM Electronics Ltd Golden Mask Deep Hunter Pro3 is a professional treasure and relic hunting metal detector designed primarily to detect deeply buried metal objects and discriminate between ferrous and non- ferrous metals. Golden Mask Deep Hunter Pro3 is an advanced pulse induction metal detector, with newly developed full range “flash automatic...
- Page 3 The use of self-made or other brands of coils will damage the Electronics Unit and will void the warranty. The main search coils of the Golden Mask Deep Hunter Pro3 is a square frame made from PVC pipes, unions and elbows that form the coil support frame.

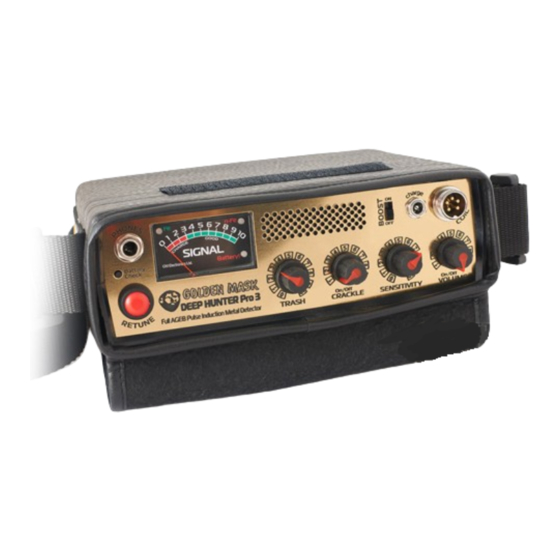

- Page 4 GM Electronics Ltd 3.Settings - Golden Mask Deep Hunter Pro3 has extremely simple and intuitive settings, that include 4 knobs (of these: 2 with switching function - one for switching-on/off the unit and 1 for the special “Silent” mode), 2 buttons, 1 switch and 1 special indicator.
- Page 5 "Battery Check" - button to check the level of battery charge. This button can be used at any time when the detector is switched “ON”. When the arrow is in the red sector, the battery should be recharged! Golden Mask Deep Hunter Pro3 – Instruction manual...
- Page 6 “Off” the “BOOST” function. 5.Search for metal objects with frame search coil. The Golden Mask Deep Hunter Pro3 is designed to be used with large “frame” type search coils. This is the most effective way to search for deeply buried metal objects.
- Page 7 WARNING! The use of this method, and/or any “entry” of the operator or another assistant inside the “frame” of the Golden Mask Deep Hunter Pro3 detector while in working mode can suffer adverse effects caused by the very strong electromagnetic field that can lead to serious health problems and/or injuries! If you do not have an assistant, “dragging”...
- Page 8 Hz (slow “ticking” sound). Each “signal” has “start” and “end”. The Golden Mask Deep Hunter Pro3 has a very well expressed “zone” indication from deeply buried metal objects with the use of a frame coil. The length and width of this “zone”...
- Page 9 With a little experience, anyone can learn to recognize the nature of the various signals, which will lead to better use of the great capabilities of the Golden Mask Deep Hunter Pro3 8.Signal additional amplification (“BOOST”). The additional amplification of the received signal provides increased depth of detection (about 20%), but Its’...
- Page 10 Decreasing the sensitivity and/or use of “Silent” mode sometimes could return acceptable results, but the Golden Mask Deep Hunter Pro3 provides the ability to eliminate small metal objects without reducing the sensitivity. This is accomplished with the “TRASH” knob. The lower the value selected with this knob, smaller metal objects are detected.
- Page 11 Replacing the battery with a non-genuine one could damage the detector and voids the warranty! Relative depth of detecting of metal objects in different modes Mode CRACKLE BOOST Depth Off. Off. Off. Off. 100% 120% Golden Mask Deep Hunter Pro3 – Instruction manual...
- Page 12 6. Working with the detector in industrial areas and places with a large amount of metal junk in the soil, and/or with presence of industrial electromagnetic interferences, can lead to instability and/or inability to work. This requires reducing the sensitivity of Golden Mask Deep Hunter Pro3 – Instruction manual...
- Page 13 9. Switch-on the detector for about 15 minutes in the area of search before starting to search for metal objects. During this time the Golden Mask Deep Hunter PRO3 electronics are self- adjusting to the ambient temperature/humidity and the detector reaches its optimum operating capabilities.
- Page 14 “PHONES” socket will help achieve better results. 15. The manufacturer and dealers are not liable for trespass, damages or injuries that could result from any use of the Golden Mask Deep Hunter PRO3 Golden Mask Deep Hunter Pro3 – Instruction manual...
- Page 15 Shallow target, large deep target, large, deeply buried targets will cause a long duration signal, increasing in intensity and pitch as the center is approached. Golden Mask Deep Hunter Pro3 – Instruction manual...
- Page 16 GM Electronics Ltd Golden Mask Deep Hunter Pro3 – Instruction manual...
