Summary of Contents for GOLDEN MASK Deep Hunter Pro 5

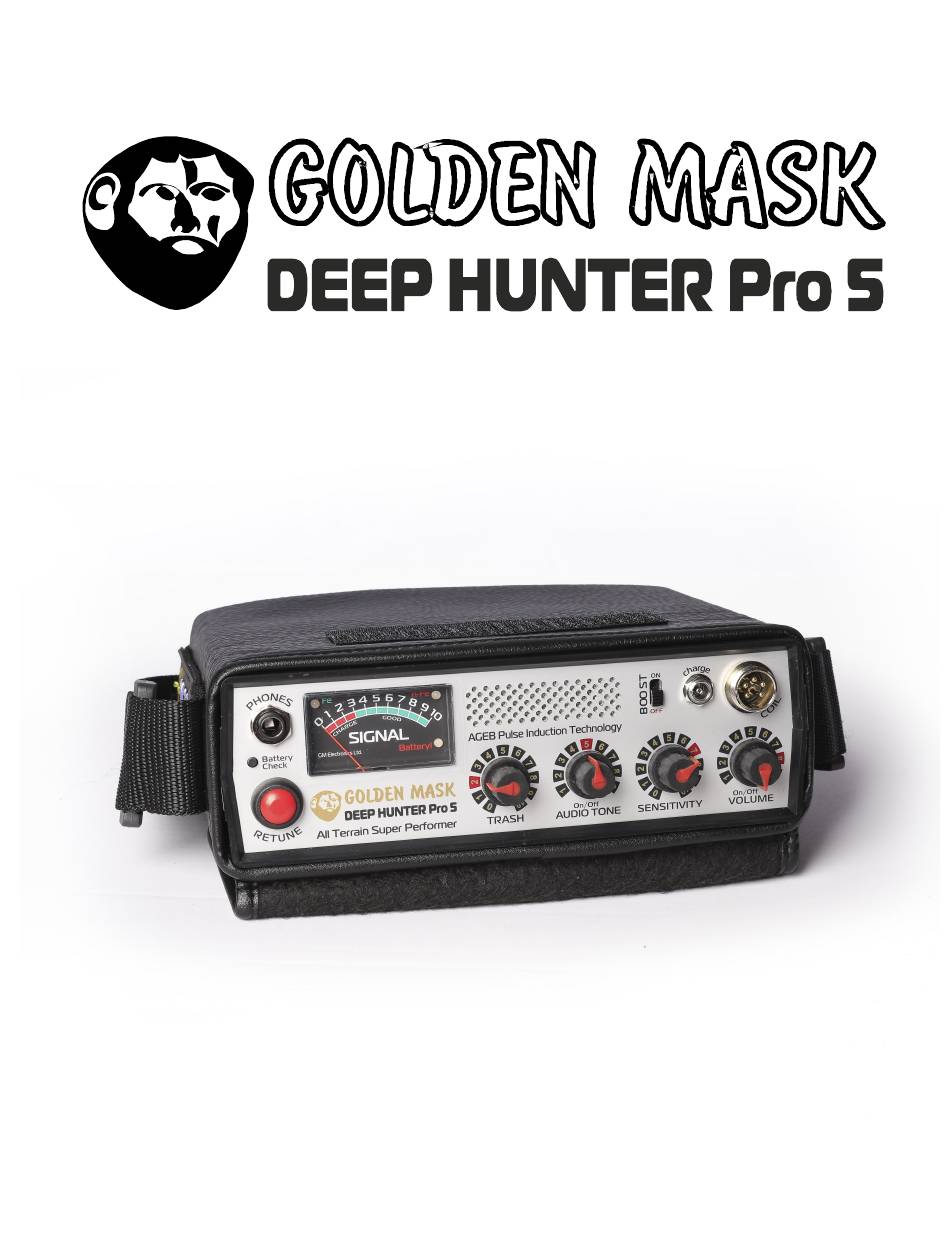

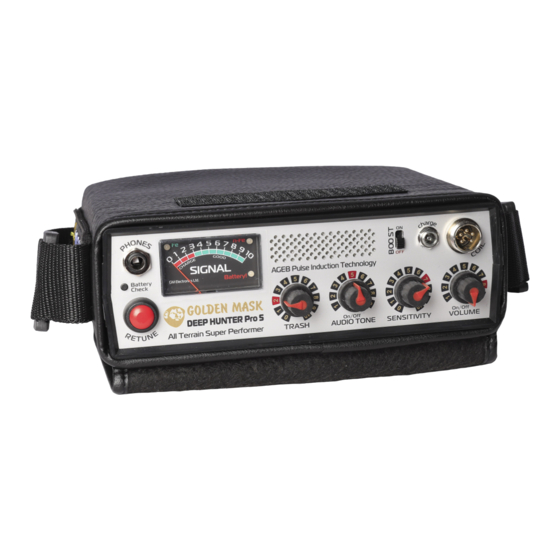

- Page 2 GM Electronics Ltd Instruction manual Golden Mask Deep Hunter Pro5 is a professional treasure and relic hunting metal detector designed primarily to detect deeply buried metal objects and discriminate between ferrous and non- ferrous metals. Golden Mask Deep Hunter Pro5 is an advanced pulse induction metal detector, with newly developed full range “flash automatic...
- Page 3 The use of self-made or other brands of coils will damage the Electronics Unit and will void the warranty. The main search coils of the Golden Mask Deep Hunter Pro5 is a square frame made from PVC pipes, unions and elbows that form the coil support frame.
- Page 4 3.Settings - Golden Mask Deep Hunter Pro5 has extremely simple and intuitive settings, that include 4 knobs (of these: 2 with switching function - one for switching-on/off the unit and 1 for the special “Silent”...
- Page 5 - green for ferrous metals and red for non-ferrous metals; "Battery!" is a LED for indicating less than 10% residual charge of the built-in battery, indicating a necessary recharge (see #11); Golden Mask Deep Hunter Pro5 – Instruction manual...
- Page 6 “Off” the “BOOST” function. 5.Search for metal objects with frame search coil. The Golden Mask Deep Hunter Pro5 is designed to be used with large “frame” type search coils. This is the most effective way to search for deeply buried metal objects.
- Page 7 WARNING! The use of this method, and/or any “entry” of the operator or another assistant inside the “frame” of the Golden Mask Deep Hunter Pro5 detector while in working mode can suffer adverse effects caused by the very strong electromagnetic field that can lead to serious health problems and/or injuries! If you do not have an assistant, “dragging”...
- Page 8 Hz (slow “ticking” sound). Each “signal” has “start” and “end”. The Golden Mask Deep Hunter Pro5 has a very well expressed “zone” indication from deeply buried metal objects with the use of a frame coil. The length and width of this “zone”...
- Page 9 With a little experience, anyone can learn to recognize the nature of the various signals, which will lead to better use of the great capabilities of the Golden Mask Deep Hunter Pro5 8.Signal additional amplification (“BOOST”). The additional amplification of the received signal provides increased depth of detection (about 20%), but Its’...
- Page 10 Decreasing the sensitivity and/or use of “Silent” mode sometimes could return acceptable results, but the Golden Mask Deep Hunter Pro3 provides the ability to eliminate small metal objects without reducing the sensitivity. This is accomplished with the “TRASH” knob. The lower the value selected with this knob, smaller metal objects are detected.
- Page 11 Never replace the battery without consulting your dealer. Replacing the battery with a non-genuine one could damage the detector and voids the warranty! Relative depth of detecting of metal objects in different modes Golden Mask Deep Hunter Pro5 – Instruction manual...
-
Page 12: Audio Tone
7. Reduce (rotate in counterclockwise) very fine “TRASH” (about only 1 to 2 mm on the potentiometer scale) to find the threshold of sound. 8. Start searching with carefully keeping the distance from the ground surface Golden Mask Deep Hunter Pro5 – Instruction manual... - Page 13 - please carry out these activities very precisely and carefully to avoid costly and severe damage. Contact points of the connector should be kept clean and dry. Golden Mask Deep Hunter Pro5 – Instruction manual...
- Page 14 9. Switch-on the detector for about 15 minutes in the area of search before starting to search for metal objects. During this time the Golden Mask Deep Hunter PRO5 electronics are self- adjusting to the ambient temperature/humidity and the detector reaches its optimum operating capabilities.
- Page 15 Targets near the surface generate a strong and rapidly increasing signal. Near surface targets generate a high pitch sound while deeply buried metal objects produce low pitch sounds that build in intensity as the center is approached. Golden Mask Deep Hunter Pro5 – Instruction manual...
- Page 16 GM Electronics Ltd Shallow target, large deep target, large, deeply buried targets will cause a long duration signal, increasing in intensity and pitch as the center is approached. Golden Mask Deep Hunter Pro5 – Instruction manual...
